Name: 40G-UNIV-QSFP+ Transceiver Module 4 Channels MMF/SMF Universal
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-UNIV
Price: 900.00 USD
Availability: InStock

Home > products > QSFP+ Transceiver >

40G-UNIV-QSFP+ Transceiver Module 4 Channels MMF/SMF Universal

4 Channels QSFP+ Transceiver Module

40G-UNIV-QSFP+ Transceiver Module

MMF/SMF Universal QSFP+ Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC RoHS

Model Number:

HL-QSFP-40G-UNIV

Request A Quote

40G-UNIV-QSFP+ Transceiver Module 4 Channels MMF/SMF Universal

Product Details

Product Name:

40G-UNIV-QSFP+ Transceiver

Data Rate:

40GE

Wavelength:

1271/1291/1311/1331nm

Reach Distance:

2KM Max

Connector:

DDM:

Supported

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Negotiable

Packaging Details

Blister Packaging

Delivery Time

3-5 Working Days

Payment Terms

T/T, Western Union, MoneyGram,Paypal

Supply Ability

100PCS Per Day

LC Connector SOA Pin Fiber Optic Transceiver Good Communication Networking Product QSFP28 ZR4 80KM LWDM4 1295-1304NM

Get Best Price

100G ZR QSFP28 DCO 120KM C-Band Tunable Digital Coherent Optics Transceiver DOM LC

Get Best Price

Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 Optical Transceiver Module 1550nm 100km EML+ APD Communication & Networking Product

Get Best Price

Hilink 100G QSFP28 ZR4 80KM LWDM 1295-1304NM SOA+PIN Duplex LC Connector Transceiver Module

Get Best Price

86-755-8317-6243

Contact Now

Product Description

QSFP+ 4 Channels MMF/SMF Universal Module 40G-UNIV-QSFP+ Transceiver Module

Hilink QSFP-40G-UNIV is a QSFP 40GbE transceiver with a duplex LC connector that can be used with both multi-mode (MM) and single-mode (SM) fiber. It has 4 channels of 10G multiplexed inside the module to transmit and receive an aggregate 40G signal over 2 strands of fiber. It is called Universal because of its ability to operate with both MM and SM fiber without the need for any software / hardware changes to the module or any additional hardware in the network.

Item No.	HL-QSFP-40G-UNIV	Vendor Name	Hilink
Form Type	QSFP+	Max Data Rate	40Gbps
Wavelength	1310nm	Max Cable Distance	2KM
Interface	LC Duplex	DOM Support	Yes
Cable Type	SMF/MMF	Commercial Temperature Range	0 to 70°C (32 to 158°F)

Features

Compliant with IEEE 802.3ba
Compliant with IEEE 40GBASE-LR4
Compliant with QSFP+ MSA SFF-8436
4x10 Gb/s electrical interface
100M on OM3 to 150M on OM4 transmission on multi mode fiber (MMF)
500M to 2KM transmission on single mode fiber (SMF)
Single +3.3V power supply
Case temperature range: 0 ~ +70℃
Maximum power consumption 3.5 W
Duplex LC connector
RoHS complaint

Applications

40GBASE Ethernet
Data center Interconnect

Compatibility

Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Details Photos

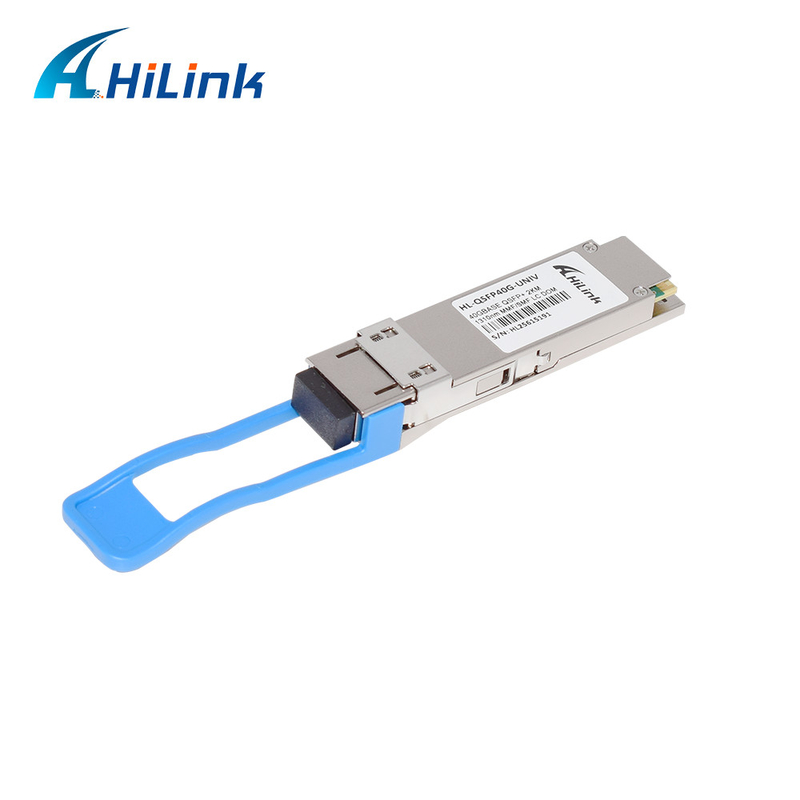

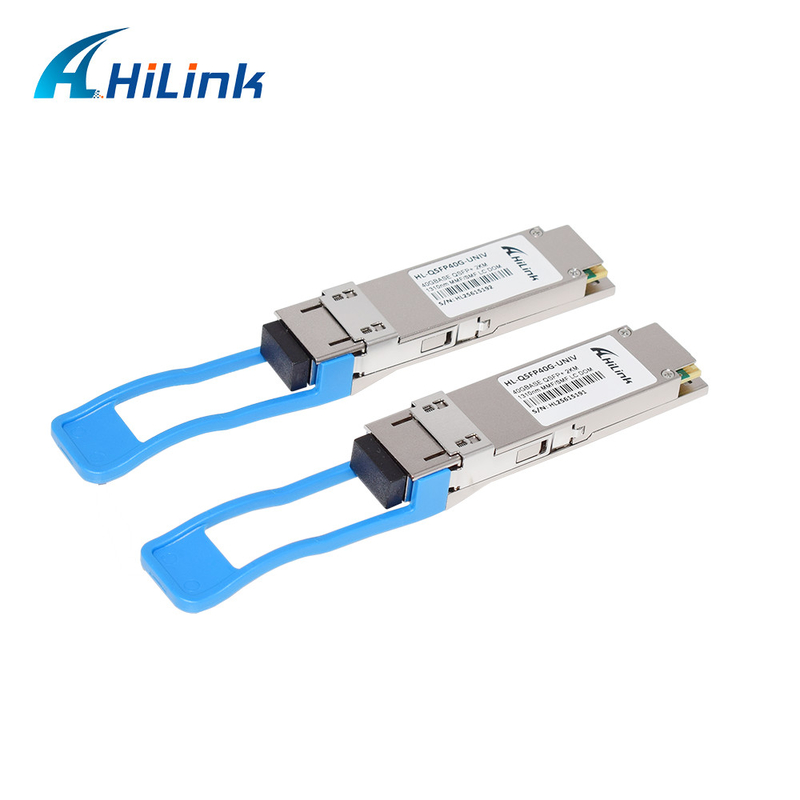

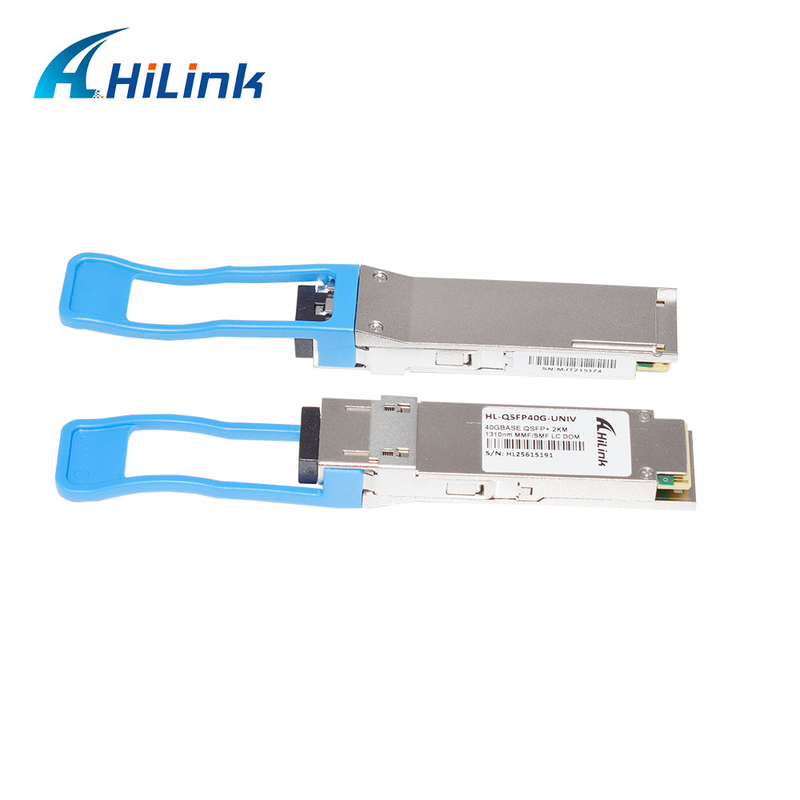

40G-UNIV-QSFP+ Transceiver Module 4 Channels MMF/SMF Universal 0

Hilink Advantages

1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.

3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
