Shenzhen HiLink Technology Co.,Ltd.

SFP+ To SFP+ 10G OM2 Active Optial Cable AOC 1 ~ 100M RoHS Compliant

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC RoHS
Model Number: HL-SFP-10G-AOC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister box, Plastic packaging, Carton
Delivery Time: 3~5working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
  • Detail Information
  • Product Description

Detail Information

Key Words: SFP+ To SFP+ 10G AOC Form Factor: SFP+ To SFP+
Fiber Type: OM2 (optional) Fiber Length: 3M ( Or Customised)
Fiber Color: Orange Warranty: 3 Years
High Light:

RoHS Compliant Active Optial Cable

,

OM2 Active Optial Cable

,

SFP+ 10G Active Optial Cable

Product Description

SFP+ to SFP+ 10G AOC Cable OM2 Active Optial Cable 1~100M



General Description



Hilink's 10G SFP+ AOC active optical direct-attach cables are designed for high speed, high density and low power consumption for today’s data center networking applications. They are suitable for very short distances and offer a very cost-effective way to establish a 10-gigabit link between SFP+ ports of switches within racks and across adjacent racks.

The 10G SFP+ AOC cables are composed of SFP+ optical transceivers in both ends and OM3 multimode fiber cable in different cable length from 1 to 100 meters. This integrated optical transceiver removes the complicated optical fiber interface and brings friendly and intuitive electrical-to-electrical interface to users.

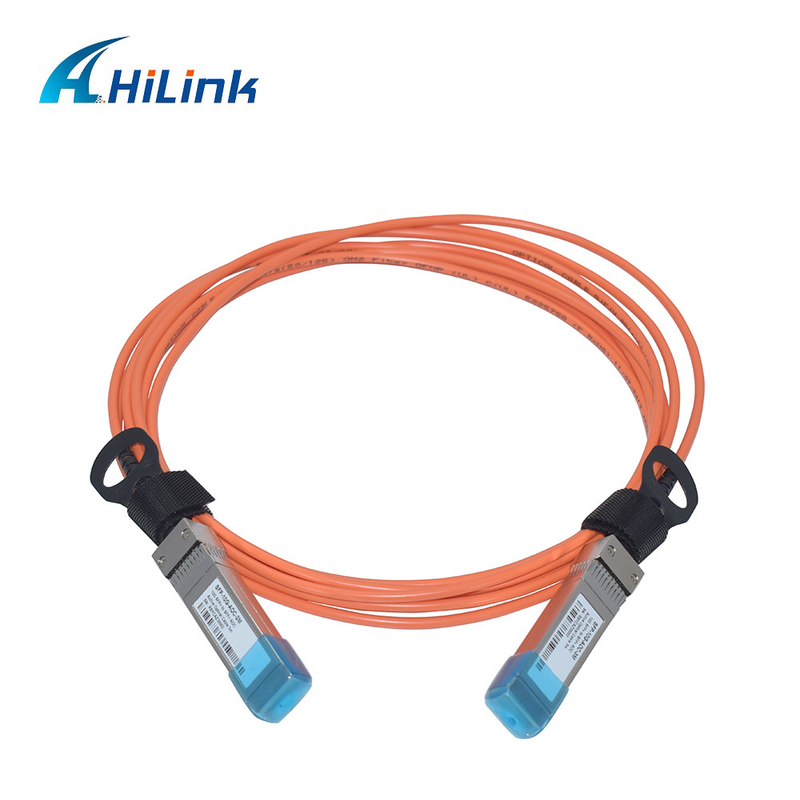

SFP+ To SFP+ 10G OM2 Active Optial Cable AOC 1 ~ 100M RoHS Compliant 0



Features



  •  Support 10GBASE-SR/10G Fiber Channel application
  •  Compliant to SFP+ Electrical MSA SFF-8431
  •  Compliant to SFP+ Mechanical MSA SFF-8432
  •  Multi rate of up to 11.3Gbps
  •  Transmission distance up to 150m (OM3)
  •  +3.3V single power supply
  •  Low power consumption
  •  Operating case temp Commercial: 0°C to +70 °C
  •  RoHS compliant
  •  Password protection for A0h and A2h



Parameter Symbol Unit Min Typ Max Notes
Optical transmitter Characteristics
Data Rate DR Gbps 9.953 10.3125 11.3
Center Wavelength Range λc nm 820 850 880
Laser Off Power Poff dBm - - -45
Launch Optical Power P0 dBm -6.0     1
Extinction Ratio ER dB 3 - -
Spectral Width(RMS) RMS nm -   0.45
Optical Receiver Characteristics
Data Rate DR Gbps 9.953 10.3125 11.3
Bit Error Rate BER dBm - - E-12 2
Overload Input Optical PIN dBm 2.4 - - 2
Power
Center Wavelength Range λc nm 820 - 880
Receiver Sensitivity in Average Power Sen dBm - - -9.9
Los Assert LosA dBm -26 - -
Los De-Assert LosD dBm - - -12
Los Hysteresis LosH dB 0.5 - -



Note: 1. Coupled into 50/125 MMF.

          2. Measured with PRBS 231-1 test pattern @10.3125Gbps.BER=10E-12



Applications



  • 10GBASE-SR at 10.31Gbps
  • InfiniBand QDR, SDR, DDR
  • Other optical links



Details Images

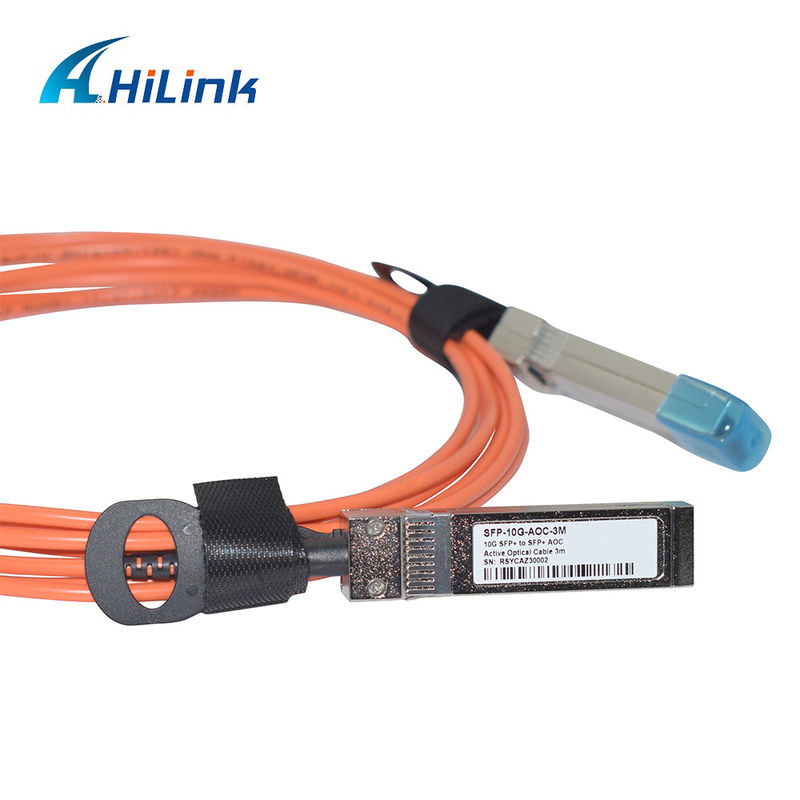

SFP+ To SFP+ 10G OM2 Active Optial Cable AOC 1 ~ 100M RoHS Compliant 1SFP+ To SFP+ 10G OM2 Active Optial Cable AOC 1 ~ 100M RoHS Compliant 2SFP+ To SFP+ 10G OM2 Active Optial Cable AOC 1 ~ 100M RoHS Compliant 3SFP+ To SFP+ 10G OM2 Active Optial Cable AOC 1 ~ 100M RoHS Compliant 4



Hilink Advantages



1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc
.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
