QSFP28 CWDM4 SFP Transceiver Module Hot Pluggable 10KM Duplex LC Connector

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-QSFP28-CW-10km
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
  • Detail Information
  • Product Description

Detail Information

Data Rate: 100Gb/s Distance: 10KM
Wavelength: 1310nm Fiber Connector: LC/UPC
Warranty: 3 Years Package: QSFP28
High Light:

QSFP28 CWDM4 SFP Transceiver Module

,

Hot Pluggable SFP Transceiver Module

,

Duplex LC QSFP28 transceiver module

Product Description

QSFP28 CWDM4 Hot Pluggable 10KM SFP Transceiver Duplex LC Connector SMF Module





General:

           The HL-QSFP28-CWDM4 is a transceiver module designed for 10km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.

          The central wavelengths of the 4 lanes are 1270nm, 1290nm, 1310nm and 1330nm . It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
          The HL-QSFP28-CWDM4 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.



Feature:

4 lanes MUX/DEMUX design
Integrated CWDM TOSA / ROSA for up to 10 km reach over SMF
Support 100GBASE-CWDM4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
Aggregate bandwidth of > 100Gbps
Duplex LC connectors
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module
electrical standard ITU-T G.959.1-2012-02 standard
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part



Application

100G Ethernet

Proprietary High Speed Interconnections Datacenter

100G CWDM4 application with FEC



40G/100G SFP Modules:

Part Number Product Description
HL-QSFP-40G-SR4 QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M
HL-QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP-40G-ER4 QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-SR4 QSFP28, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M
HL-QSFP28-100G-LR4 QSFP28, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP28-100G-ER4 QSFP28, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-ZR4 QSFP28, 100Gbs, 100GBASE-ZR4, SMF, 1310nm, 60KM
HL-QSFP28-100G-ZR4 QSFP28, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM

Picture Show:

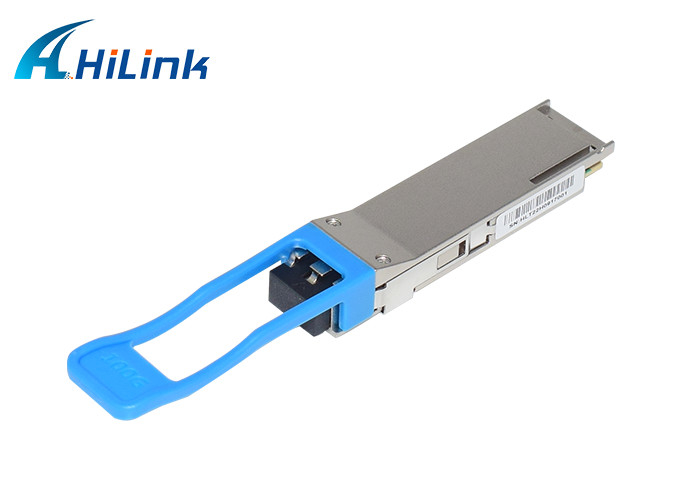

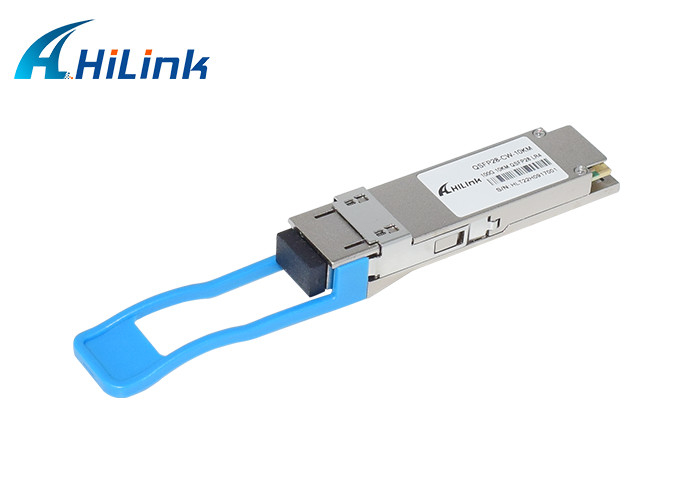

QSFP28 CWDM4 SFP Transceiver Module Hot Pluggable 10KM Duplex LC Connector 0QSFP28 CWDM4 SFP Transceiver Module Hot Pluggable 10KM Duplex LC Connector 1







QSFP28 CWDM4 SFP Transceiver Module Hot Pluggable 10KM Duplex LC Connector 2
