Shenzhen HiLink Technology Co.,Ltd.

1 - 100m QSFP+ To QSFP+ Active Optical Cable 40G AOC Cable SDR DDR QDR Support

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC RoHS
Model Number: HL-QSFP-40G-AOC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister box, Plastic packaging, Carton
Delivery Time: 3~5working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
  • Detail Information
  • Product Description

Detail Information

Key Words: QSFP 40G AOC Form Factor: Qsfp To Qsfp
Fiber Type: OM3 (optional) Fiber Length: 3M ( Or Customised)
Certificate: RoHS Warranty: 3 Years
High Light:

FCC QSFP+ Active optical cable

,

40G QSFP+ Active optical cable

,

OM3 40G AOC cable

Product Description



1~100M 40G QSFP+ to QSFP+ Active optical cable AOC Cables SDR DDR QDR Support



Hilink's 40G QSFP+ to QSFP+ active optical direct-attach cables are suitable for very short distances and offer a very cost-effective way to establish a 40-gigabit link between QSFP ports of switches within racks and across adjacent racks.



1 - 100m QSFP+ To QSFP+ Active Optical Cable 40G AOC Cable SDR DDR QDR Support 0





Item No. HL-QSFP-40G-AOC Vendor Name Hilink
Form Type QSFP to QSFP Max Data Rate 40Gbps
Cable Type MMF Max Cable Distance 100M
Cable Typem Yes Commercial Temperature Range 0 to 70°C (32 to 158°F)




Features



  •  Connector 1: QSFP+ AOC Connector 2: QSFP+ AOC
  •  Data Rate: 40GBASE
  •  Length:1m, 3m, 5m, 10m, 20m, 50m, 100m or others (OM2, OM3 available)
  •  Supply Voltage: 3.1~3.5V
  •  Storage Temperature: -20~+85℃
  •  Operating Temperature: 0~70℃
  •  Humidity: 5%~95%



Applications



  •  InfiniBand QDR, DDR and SDR
  •  Data Aggregation, Backplane and Proprietary Density Applications
  •  PCI-Express, SAS/SATA,
  •  Fiber Channel compatible interconnect
  •  40GBE and 10GBE interconnects
  •  40G Telecom

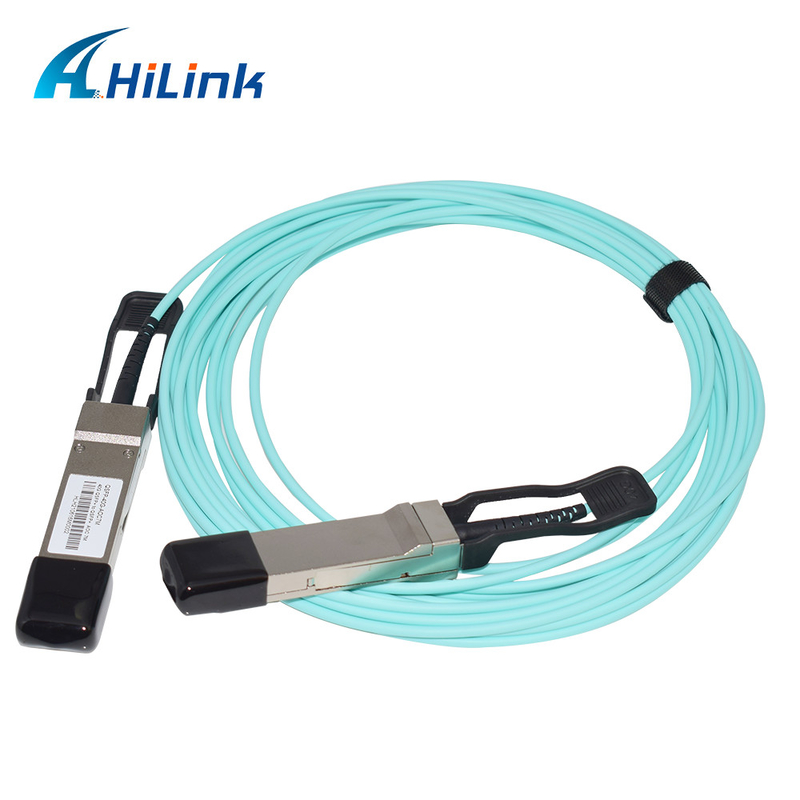

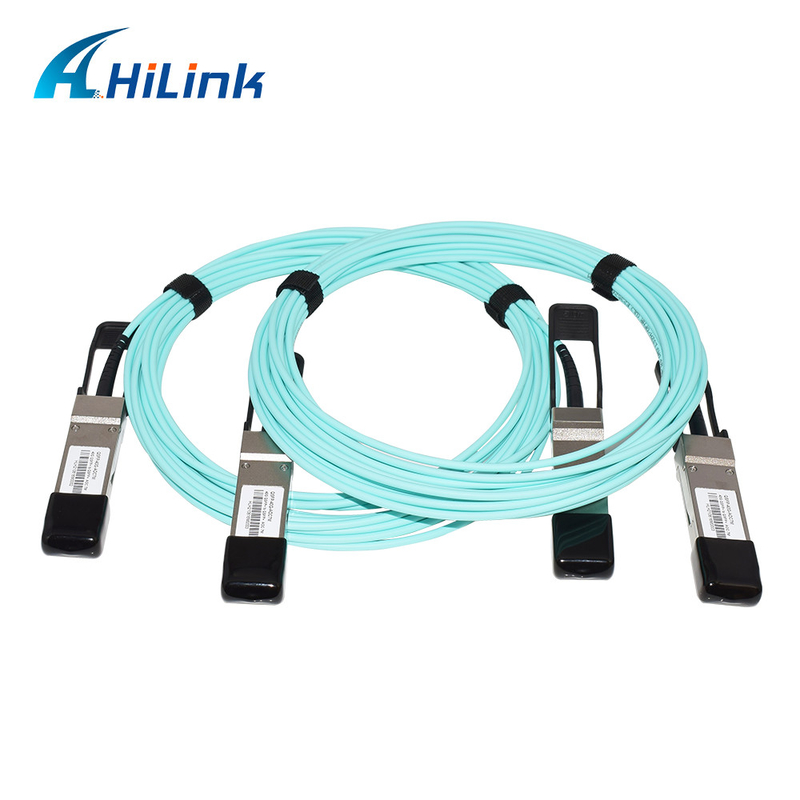

Details Images

1 - 100m QSFP+ To QSFP+ Active Optical Cable 40G AOC Cable SDR DDR QDR Support 11 - 100m QSFP+ To QSFP+ Active Optical Cable 40G AOC Cable SDR DDR QDR Support 21 - 100m QSFP+ To QSFP+ Active Optical Cable 40G AOC Cable SDR DDR QDR Support 3

1 - 100m QSFP+ To QSFP+ Active Optical Cable 40G AOC Cable SDR DDR QDR Support 4



Hilink Advantages



1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc
.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.



FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
