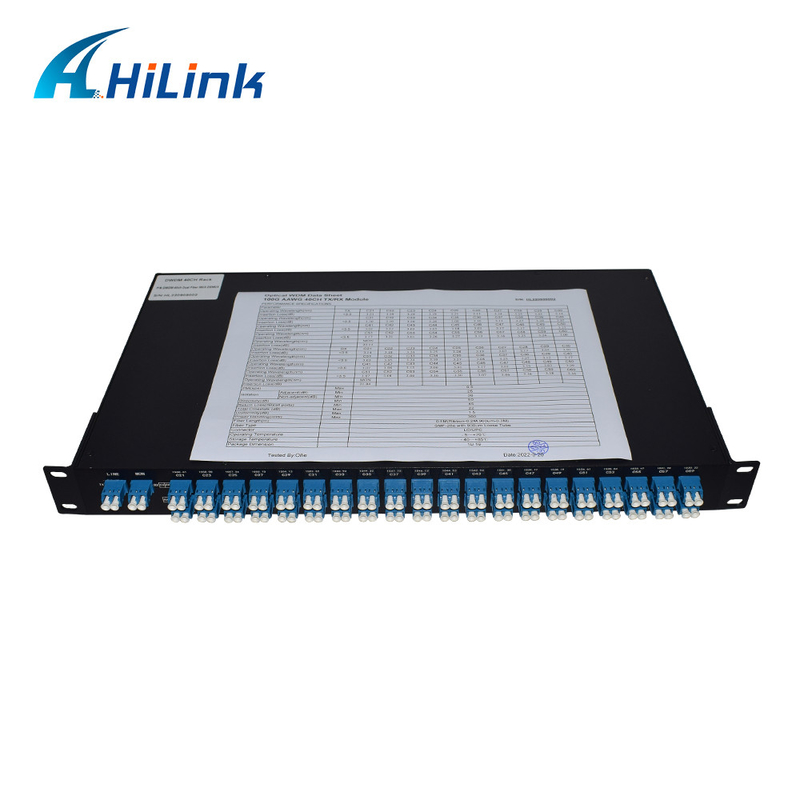

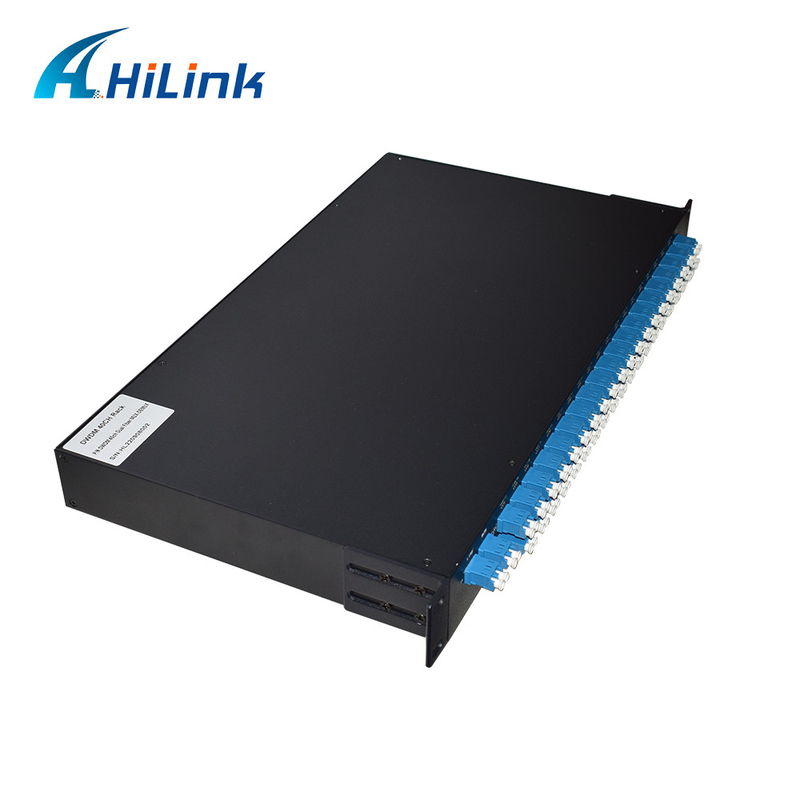

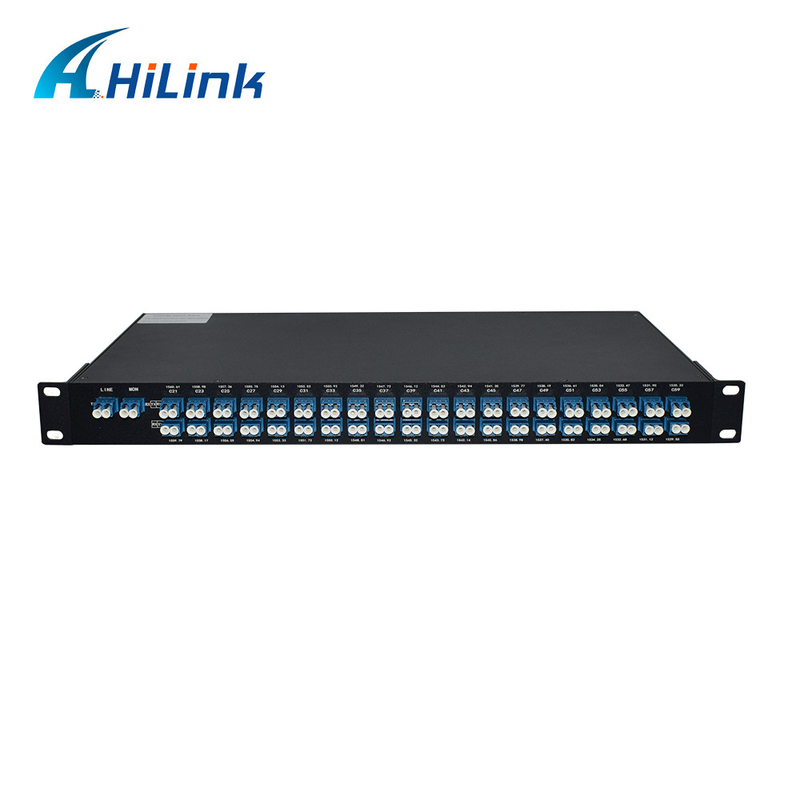

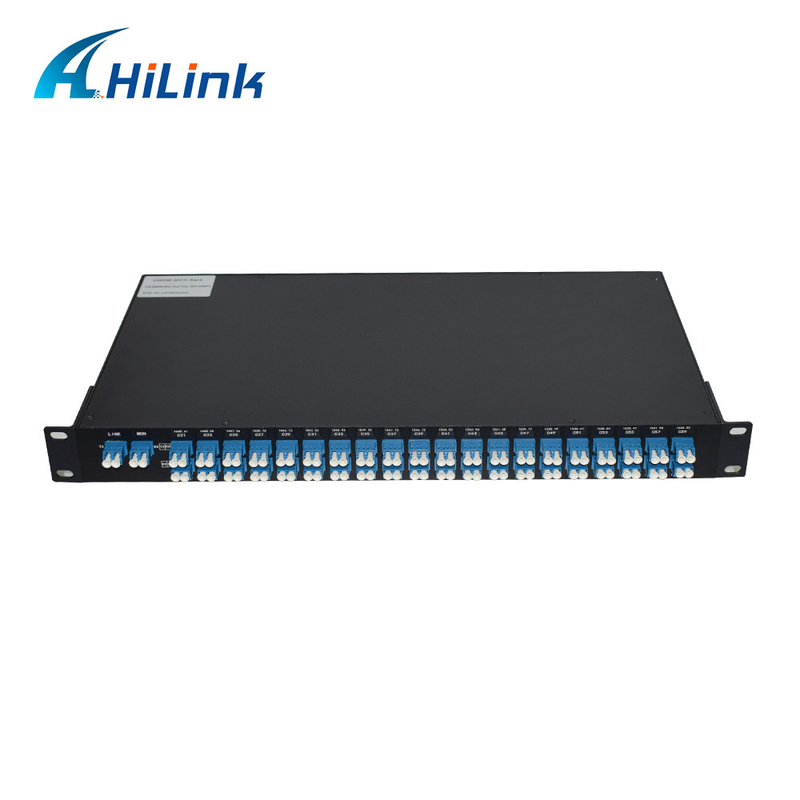

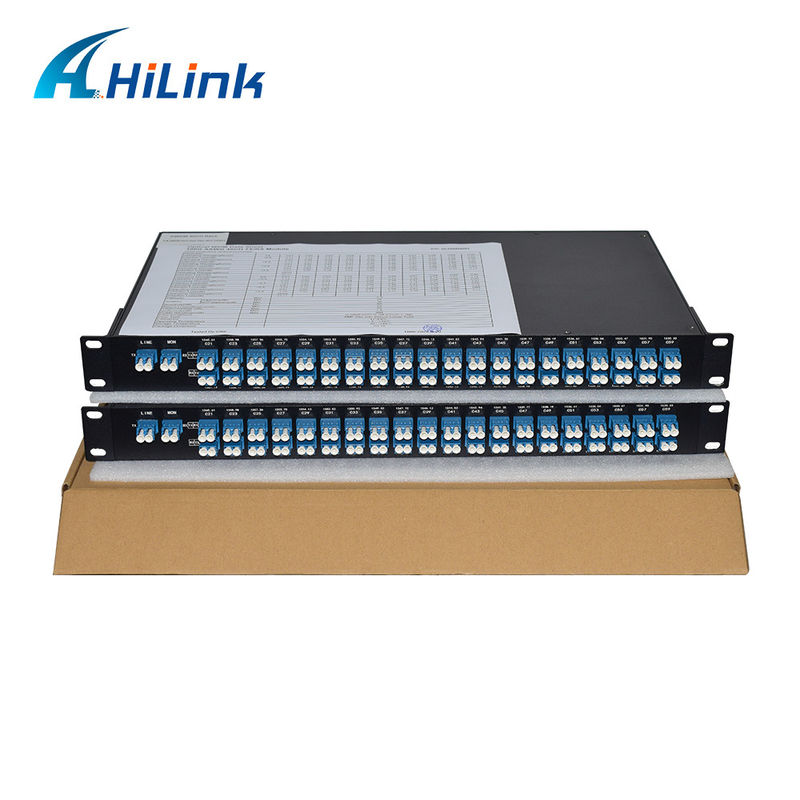

Dual Fiber C21-C60 40CH DWDM Mux Demux With Monitor Port LC/UPC 19'' 1U Rack Mount

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-DWDM Mux/Demux-xx
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable

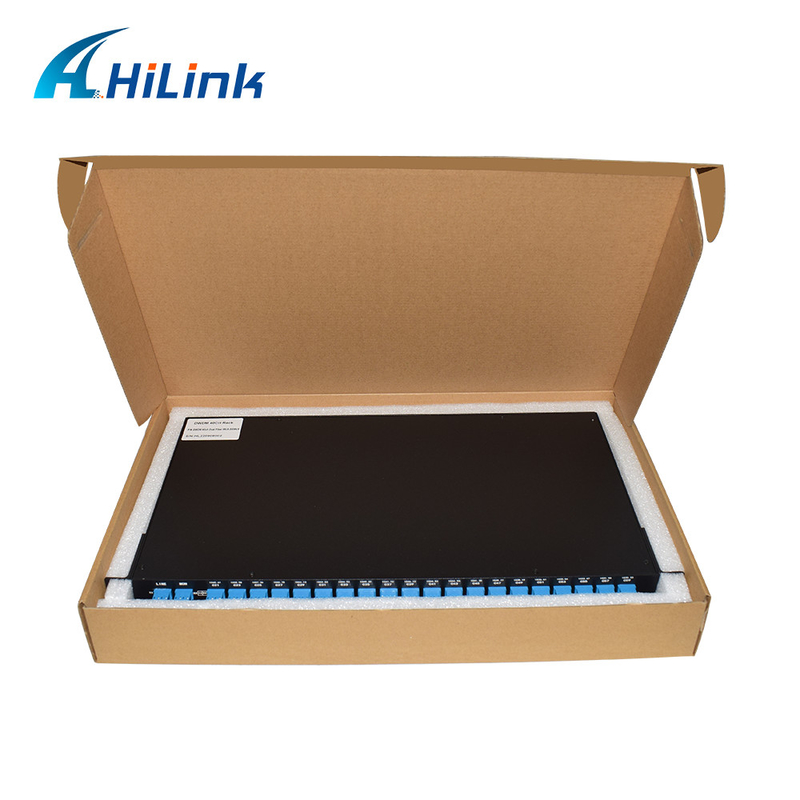

Packaging Details: Carton box, Retail box, 19 1u racks, by required
Delivery Time: 1-5 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000 pcs per Week
  • Detail Information
  • Product Description

Detail Information

Channel: 40 Operating Wavelength: C21-CH60
Com Port: Duplex Connector: LC/UPC
Opration Temperature: -20~70℃ Warranty: 3 Years
Package: 19" 1U Rack Mount
High Light:

Dual Fiber DWDM Mux Demux

,

40CH DWDM Mux Demux

,

Rack Mount DWDM Mux Demux

Product Description

100GHz DWDM AAWG Module

  100GHz C Band DWDM AAWG (Athermal Arrayed Waveguide Grating) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.

DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.

Features:

 -1. Athermal design operates over operating temperature range
 -2. Large channel number
 -3. Compact size
 -4. High stability and reliability
 -5. Low insertion loss, high isolation increase system margin


Applications:
 A.
 DWDM Network

 B. DWDM transmission
 C.
 Metro and long haul network


Compliance:

 Telcordia GR-1209-CORE-2001

 Telcordia GR-1221-CORE-1999

 ITU-T G.694.1

 RoHS



100GHz AAWG Module

Dual Fiber C21-C60 40CH DWDM Mux Demux With Monitor Port LC/UPC 19'' 1U Rack Mount 0




Some solutions:



DWDM Mux single fiber.jpgDWDM Mux with EDFA.jpg

Dual Fiber C21-C60 40CH DWDM Mux Demux With Monitor Port LC/UPC 19'' 1U Rack Mount 3

Dual Fiber C21-C60 40CH DWDM Mux Demux With Monitor Port LC/UPC 19'' 1U Rack Mount 4

Dual Fiber C21-C60 40CH DWDM Mux Demux With Monitor Port LC/UPC 19'' 1U Rack Mount 5

Dual Fiber C21-C60 40CH DWDM Mux Demux With Monitor Port LC/UPC 19'' 1U Rack Mount 6

Order Information:

Filter Mode

AAWG



Channel Spacing



Channel Number



Operating Band



1st Channel



Fiber Type



Fiber Length



Connector

Type



F=Flat-Top

G=Gaussian

100=100GHz

50=50GHZ



40=40Channel

48=48Channel

XX=XXChannel

32=32-Channel



C=C Band

CL=C&L

X=others



21=1560.61nm

22=1559.79nm

23=1558.98nm…



1=Bare fiber

2=900um Jacket

1=1 Meter

2=2 Meter



0=None

FA=FC/APC

FP=FC/PC

SA=SC/APC

SP=SC/PC

SP=ST/PC

LP=LC/PC
