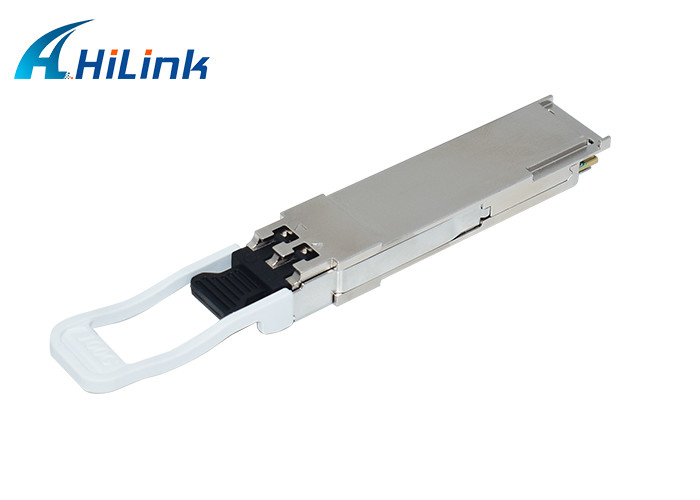

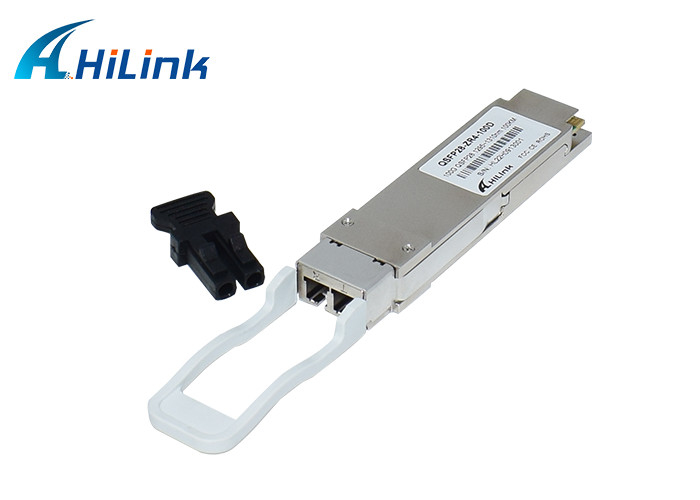

Dual Rate 100G QSFP28 Transceiver 1310nm 100km DOM Duplex LC SMF Optical Transceiver Module

Dual Rate 100G QSFP28 Transceiver 1310nm 100km DOM Duplex LC SMF Optical Transceiver Module

Name: Dual Rate 100G QSFP28 Transceiver 1310nm 100km DOM Duplex LC SMF Optical Transceiver Module
Brand: HILINK
SKU: HL- 100G - QSFP-ZR4+
Rating: 4.5 (184 reviews)

Product Details:
Place of Origin:	China
Brand Name:	HILINK
Certification:	CE FCC Rohs
Model Number:	HL- 100G - QSFP-ZR4+
Payment & Shipping Terms:
Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Static bag, Plastic bag, Retail box
Delivery Time:	2-7 working days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10pcs/Week

Contact Now

Detail Information
Product Description

Detail Information
Product Name:	100G QSFP28 ZR4	Application:	100Gbase
Wavelength:	850nm	Distance:	100KM
DDM/DOM:	Yes
High Light:	Dual Rate 100G QSFP28 Transceiver , 100G QSFP28 Transceiver 1310nm , SMF Optical Transceiver Module

Product Description

QSFP28 100G-Base Dual Rate 1310nm 100km DOM Duplex LC SMF Optical Transceiver Module

PRODUCT FEATURES

QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4 LAN-WDM lanes MUX/DEMUX design
4x25G electrical interface
Maximum power consumption 6.5W
LC duplex connector
Supports 103.125Gb/s aggregate bit rate
Up to 80km transmission on single mode fiber
Operating case temperature: 0℃ to 70℃
Single 3.3V power supply
RoHS 2.0 compliant

APPLICATIONS

100GBASE-ZR4 100G Ethernet
Telecom networking

DESCRIPTIONS

HL -Q31C-ZR4+ is designed for 80km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter- face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1

Parameter	Symbol	Min	Typ	Max	Units	Notes
Operating Case Temperature	TC	0	-	+70	°C
Power Supply Voltage	VCC	3.14	3.3	3.46	V
Data rate			103.125	112	Gb/s

QSFP SERIES :

QSFP	Nominal Wavelength (nm)	Cable Type	Core Size (Microns)	Modal Bandwidth (MHz^km)^3	Cable Distance^*1	Power Consumption (W)	Pull Tab Color
QSFP-100G-SR4-S	850	MMF	50.0 50.0	2000 (OM3) 4700 (OM4)	70m 100m	3.5	Beige
QSFP-100G-LR4-S	1295, 1300, 1304, 1309	SMF	G.652	-	10km	3.5	Blue
QSFP-100G-CWDM4-S	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green
QSFP-100G-PSM4-S	1310	SMF	G.652	-	500m	3.5	Orange
QSFP-100G-SM-SR	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green
