Shenzhen HiLink Technology Co.,Ltd.

4 Lanes Dual MMF LC QSFP+ Transceiver Module 40G QSFP+ SWDM4 Shortwavelength 850 - 940nm

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC RoHS
Model Number: HL-QSFP-40G-SWDM4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Product Name: 40G QSFP+ SWDM4 MMF Transceiver Data Rate: 40GE
Wavelength Region: 850-940nm Reach Distance: 350M Max Over OM4
Connector: LC Dual DDM: Yes
High Light:

Dual MMF QSFP+ Transceiver Module

,

940nm QSFP+ Transceiver Module

,

SWDM4 40G QSFP+ Transceiver

Product Description



40G QSFP+ SWDM4 Shortwavelength 850~940nm 4Lanes Dual MMF LC Transceiver Module



Hilink 40G QSFP+ SWDM4 transceiver modules are designed for use intransceiver modules are designed for use in 40G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 10Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.



Item No. HL-QSFP-40G-SWDM4 Vendor Name Hilink
Form Type QSFP+ Max Data Rate 40Gbps
Wavelength 850~940nm Max Cable Distance 350M
Interface LC Duplex DOM Support Yes
Cable Type MMF Commercial Temperature Range 0 to 70°C (32 to 158°F)


Features



  •  Compliant with QSFP+ MSA
  •  Compliant with SWDM MSA
  •  Compliant with SFF-8636
  •  Compliant with IEEE 802.3ba
  •  Hot-pluggable QSFP+ form factor
  •  4x10Gb/s VCSEL-based SWDM transmitter
  •  Supports 41.2Gbps aggregate bit rate
  •  Power dissipation<3.5W
  •  Maximum link length of 240m on OM3 MMF and 350m on OM4 MMF
  •  Case temperature range of 0°C to 70°C
  •  Duplex LC receptacles
  •  XLPPI electrical interface
  •  RoHS compliant



Applications



  • 40GBASE Ethernet over Duplex MMF





Compatibility



Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.




Details Photos

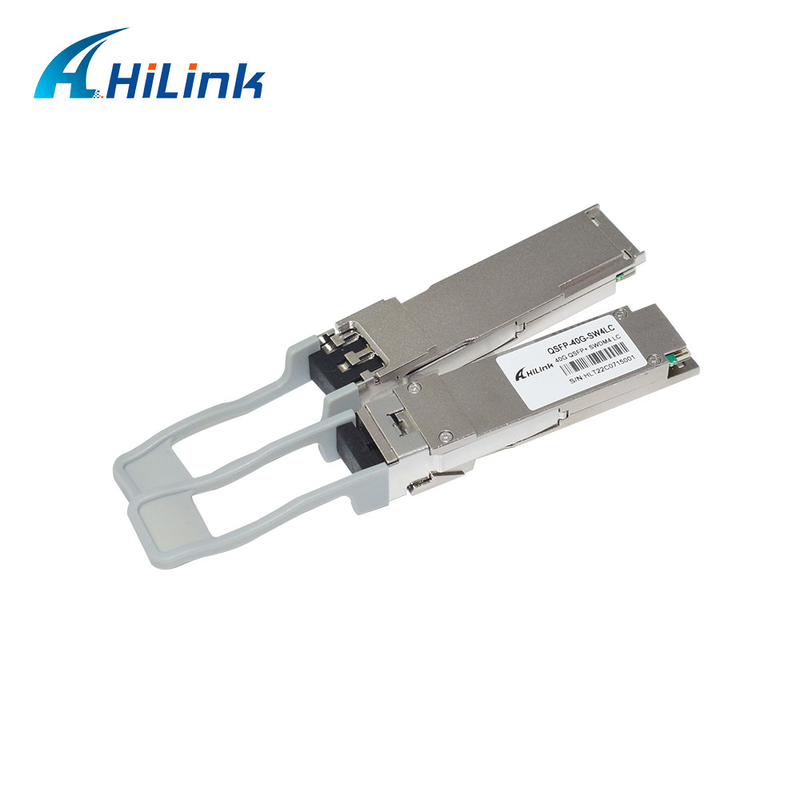

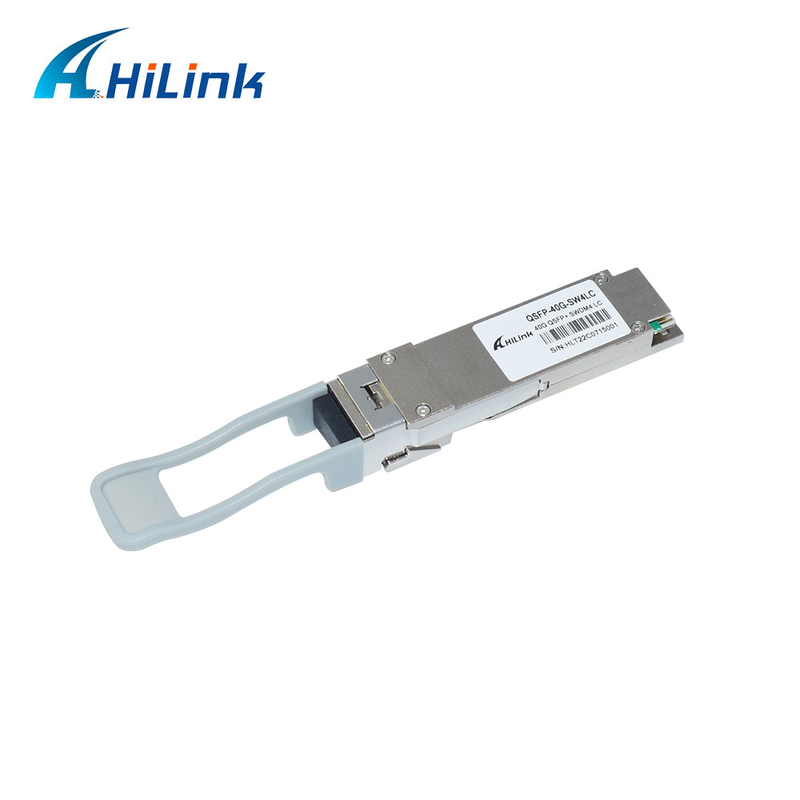

4 Lanes Dual MMF LC QSFP+ Transceiver Module 40G QSFP+ SWDM4 Shortwavelength 850 - 940nm 04 Lanes Dual MMF LC QSFP+ Transceiver Module 40G QSFP+ SWDM4 Shortwavelength 850 - 940nm 1




Hilink Advantages


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc
.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD
CWDM/DWDM/Bidi SFP/SFP+/XFPAOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.



FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
