Shenzhen HiLink Technology Co.,Ltd.

SFP+ Adapter QSFP+ Transceiver QSA Module 40G QSFP Breakout To 10G SFP+ Cage Only

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-QSA-QSFP-SFP+
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister box, Plastic packaging, Carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200PCS/month
  • Detail Information
  • Product Description

Detail Information

Product Name: QSA QSFP-SFP+ Adaptor Data Rate: 40G To 10G
Enclosure: Metal Housing Distance: Up To 80KM
Certificate: FCC CE RoHS Application: Switches/servers/routers
High Light:

Metal Housing QSFP+ Transceiver

,

40G QSFP Breakout Transceiver

,

40G to 10G QSFP+ Transceiver

Product Description

QSFP to SFP+ Adapter QSA Module 40G QSFP Breakout to 10G SFP+ Cage Only




Hilink's QSFP to SFP+ Adapter (QSA) Module offers 10 Gigabit Ethernet connectivity for Quad Small Form-Factor Pluggable (QSFP)-only platforms. It allows smooth and cost- effective migration to 40 Gigabit Ethernet by providing an option to use lower-speed Enhanced Small Form-Factor Pluggable (SFP+) modules in empty QSFP ports or when the other end of the network is running at lower speeds.
The QSA Module interoperates with all major optical modules and direct attached copper cable vendors. Its design assures minimum loss on the conversion path between the QSFP cage and the SFP+ receptacle.



SFP+ Adapter QSFP+ Transceiver QSA Module 40G QSFP Breakout To 10G SFP+ Cage Only 0


Item No. HL-QSA-QSFP-SFP+ Vendor Name Hilink
Form Type QSFP-SFP+ Data Rate 40Gbps to 10Gbps
Max Cable Distance 80KM DOM Support Yes
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000



Features



* Trouble-free installation and network bring-up

* Compliant to industry standards: SFF-8665 Compliant to industry standards: SFF-8432
* Precision process control for minimization of pair-to-pair skew

* 1 independent duplex channels operating at 10Gbps data rates

* All-metal housing for superior EMI performance
* 100ohm differential impedance system Operating case temperature: -20 to 85℃
* Low insertion loss Low crosstalk
* Secure latching mechanism RoHS compliant
* Compatible with RoHS
* Single +3.3V power supply







Applications



* Low EMI radiation Switches, servers and routers

* Telecommunication and wireless infrastructure
* Test and measurement equipment
* Networked storage systems
* Data Center networks
* Storage area networks





Details Images

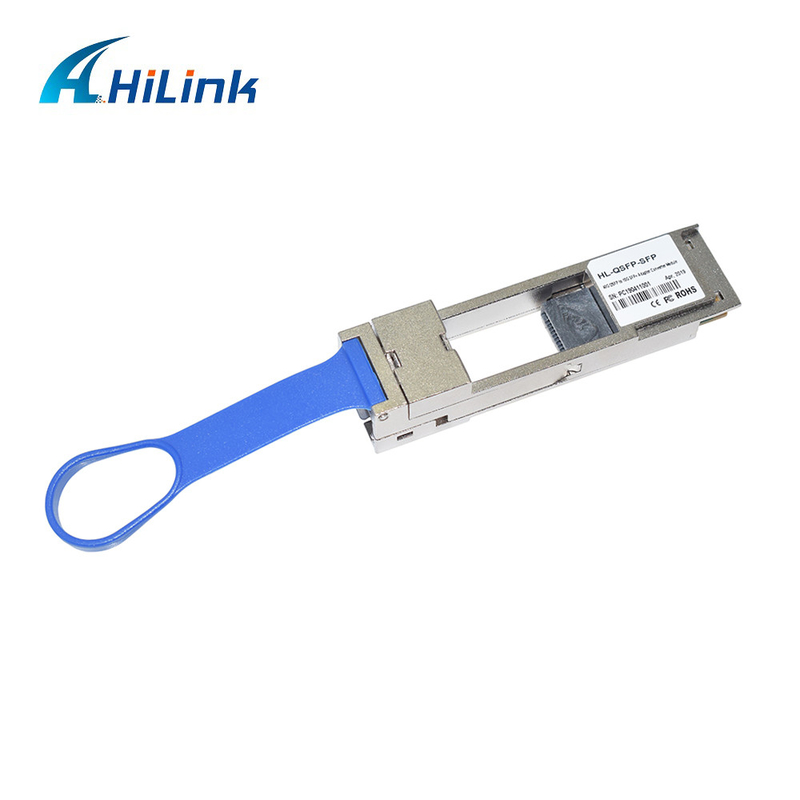

SFP+ Adapter QSFP+ Transceiver QSA Module 40G QSFP Breakout To 10G SFP+ Cage Only 1

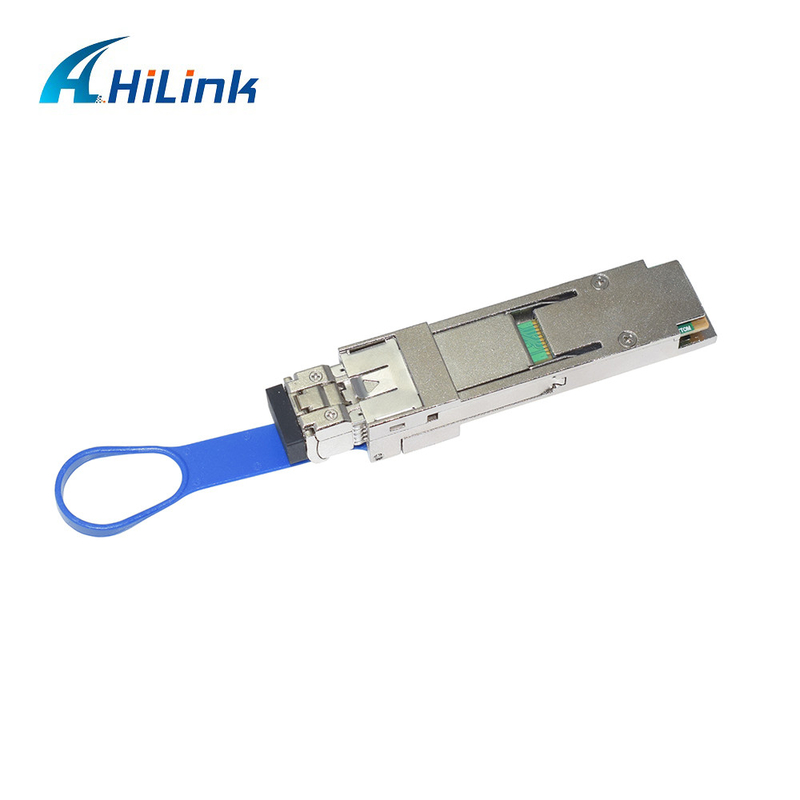

QSA with SFP+ SR

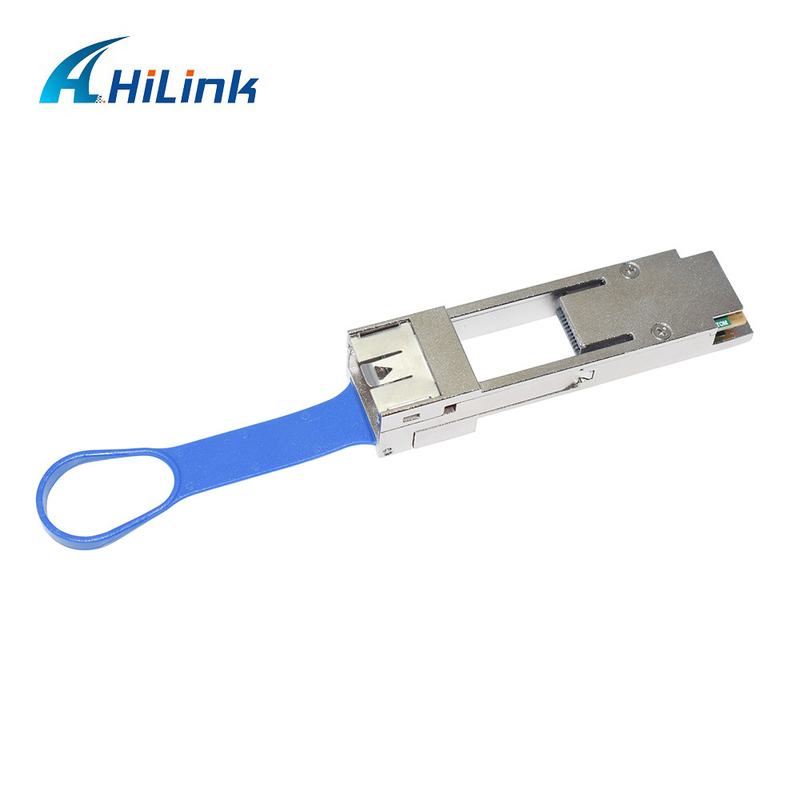

SFP+ Adapter QSFP+ Transceiver QSA Module 40G QSFP Breakout To 10G SFP+ Cage Only 2SFP+ Adapter QSFP+ Transceiver QSA Module 40G QSFP Breakout To 10G SFP+ Cage Only 3





SFP+ Adapter QSFP+ Transceiver QSA Module 40G QSFP Breakout To 10G SFP+ Cage Only 4







Hilink Advantages


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
    Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc
.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.


FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.



2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
