Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-10G-LR |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiation |
| Packaging Details: | Static bag, Plastic Flat, Retail box, by requires |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 2000/pcs/month |
|
Detail Information |
|||
| Product Name: | 10G-SFP-LR | Transmission Rate: | 10Gbp/s |
|---|---|---|---|
| Wavelength: | 1310nm | Transmission Distance: | 10km |
| Connector: | Dual LC | Warranty: | 3 Years |
| High Light: | 10G LR SFP+ Transceiver Module,DOM LC SFP+ Transceiver Module,sfp+ 10g 1310nm 10km |
||
Product Description

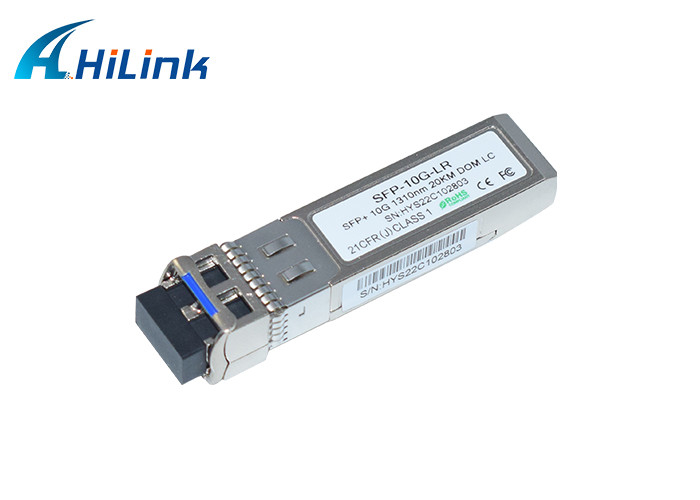

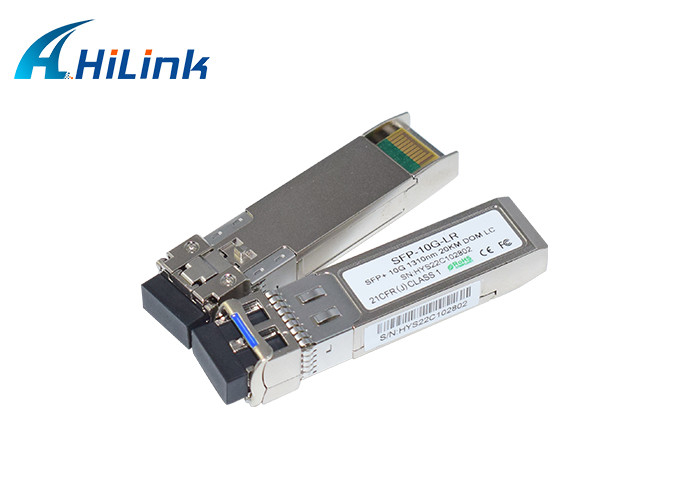

10G LR 10KM 1310nm J9151 Compatible SMF SFP+ SFP Transceiver DOM LC
General
HILINK HLSP311XL-C(I)D10 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over SingleMode fiber. They are compliant with SFF-8431,SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW. The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for telecommunication.
Features
Supports 9.95 to 10.5Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Uncooled 1310nm DFB transmitter, PIN photo-detector
Applicable for 10km SMF connection
Low power consumption, < 1W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 80 °C
Application
10GBASE-LW/LR at 10.3125Gbps
10G Fiber Channel
Other Optical Links
| Parameter | Range | Accuracy | Calibration |
| Temperature | -5 to +85°C | ±3°C | Internal |
| Supply Voltage | 2.97 to 3.63V | ±3% | Internal |
| Bias Current | 3mA to 80mA | ±10% | Internal |
| TX Power | -8.2~0.5dBm | ±3dB | Internal |
| RX Power | -15~0.5dBm | ±3dB |
Internal |
10G Transceiver:
| Part Number | Product Description |
| HL-SFP-10G-SR | SFP+, 10GBASE-SR, MMF, 850nm, 300M, LC |
| HL-SFP-10G-LR | SFP+, 10GBASE-LR, SMF, 1310nm, 10KM, LC |
| HL-SFP-10G-ER | SFP+, 10GBASE-ER, SMF, 1550nm, 40KM, LC |
| HL-SFP-10G-ZR-80 | SFP+, 10GBASE-ZR, SMF, 1550nm, 80KM, LC |
| HL-SFP-10G-ZR-100 | SFP+, 10GBASE-ZR, SMF, 1550nm, 100KM, LC |
| HL-SFP-10G-ZR-120 | SFP+, 10GBASE-ZR, SMF, 1550nm, 120KM, LC |
Our Service:
1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.
3. We deliver goods by international Express.
4. Quick response for customers' feedback and other questions.
Shipment & Payment:
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.
Guarantee:
Brand new.
OEM/ODM is available.
100% through quality test and aging test.
3 years warranty(From the date of shipment).
Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Packing Details:
Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
