10G SFP+ Transceiver Module MMF 850nm 300M DDM VCSEL PIN Optical Transceivers

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC RoHS
Model Number: SFP-10G-SR
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Wavelength: 850nm Data: 10Gbs
Distance: 300M Package: SFP+
Transmitter: Vcsel Receiver: PIN
High Light:

10G SFP+ Transceiver Module

,

300M DDM SFP+ Transceiver Module

,

VCSEL PIN Optical Transceivers

Product Description



Brands Switch Compatible SFP+ 10G MMF 850nm 300M DDM Optical Transceivers



Hilink's HLSP85 lXL-C()DS3 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet over MultiMode fiber.

They are compliant with SFF-8431 ,SFF-8432 and IEEE 802.3ae 10GBASE-SR/SW. The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for telecommunication and datacom.





Item No. SFP-10G-SR Vendor Name Hilink
Form Type SFP+ Max Data Rate 10Gbps
Wavelength 850nm Max Cable Distance 300M
Interface LC duplex Optical Components VCSEL
Cable Type MMF DOM Support Yes
TX Power -8.2~-1 dBm Receiver Sensitivity <-10.9dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000



Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.





Features



  •  850nm VCSEL Transmitter

  •  Data transfer rate: 10.3Gbps

  •  Distance up to 300m

  •  Single 3.3V Power supply and TTL Logic Interface

  •  Duplex LC Connector

  •  Compliant with MSA SFF-8431, IEEE 802.3ae

  •  Power Dissipation: SFP+< 1W

  •  Digital Diagnostic Monitoring Function

  •  Operating Temperature: 0-70℃





Applications



  •  10GBASE-SW/SR

  •  10G Fiber Channel

  •  Other Optical Link

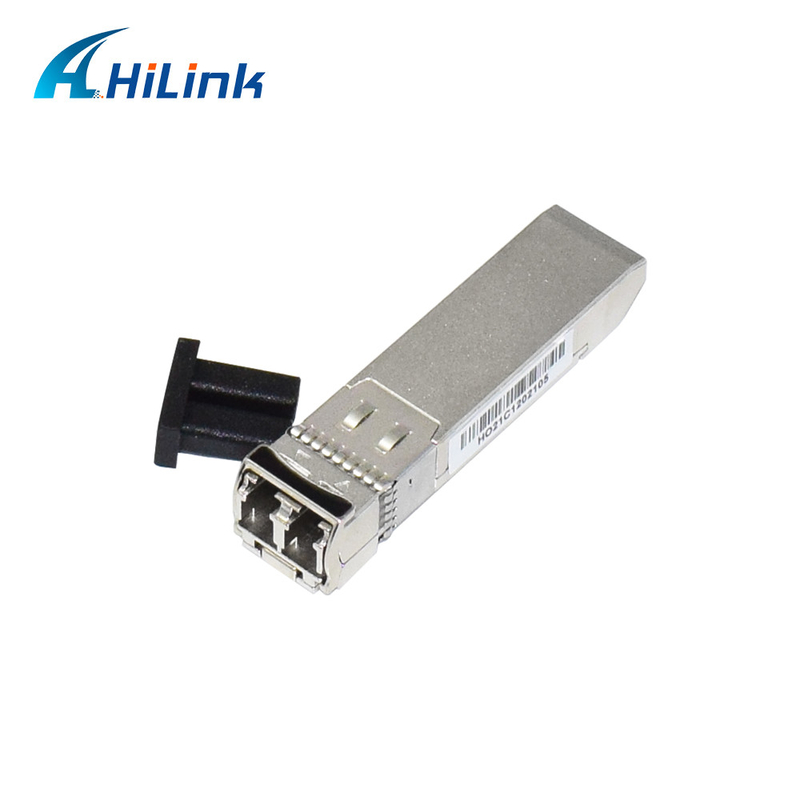

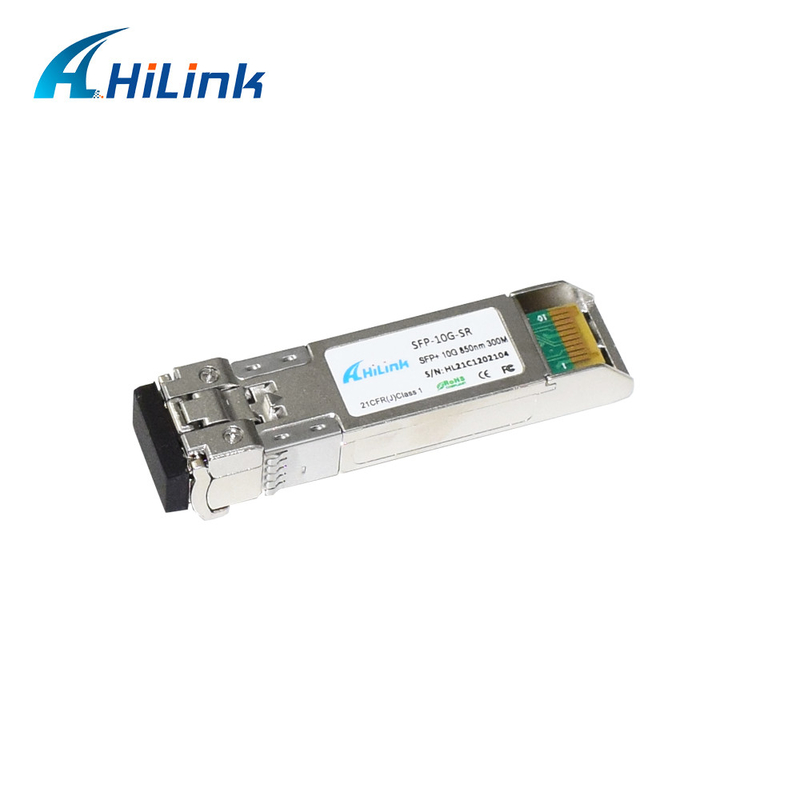

Details Photos



10G SFP+ Transceiver Module MMF 850nm 300M DDM VCSEL PIN Optical Transceivers 010G SFP+ Transceiver Module MMF 850nm 300M DDM VCSEL PIN Optical Transceivers 110G SFP+ Transceiver Module MMF 850nm 300M DDM VCSEL PIN Optical Transceivers 210G SFP+ Transceiver Module MMF 850nm 300M DDM VCSEL PIN Optical Transceivers 3





Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
