Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-QS100G-ZR4+ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic Flat, Retail box, by requires |
| Delivery Time: | 2~4 working days |
| Payment Terms: | L/C, T/T, Western Union.Paypal |
| Supply Ability: | 100/PCS/MONTH |
|
Detail Information |
|||
| Data Rate: | 100Gb/s | Distance: | 100KM |
|---|---|---|---|
| Wavelength: | 1310nm | Fiber Connector: | Dual LC |
| Warranty: | 3 Years | Package: | QSFP28 |
| High Light: | QSFP28 100G Optical Transceiver Module,100km Optical Transceiver Module,ZR4 100G QSFP28 Transceiver |
||
Product Description

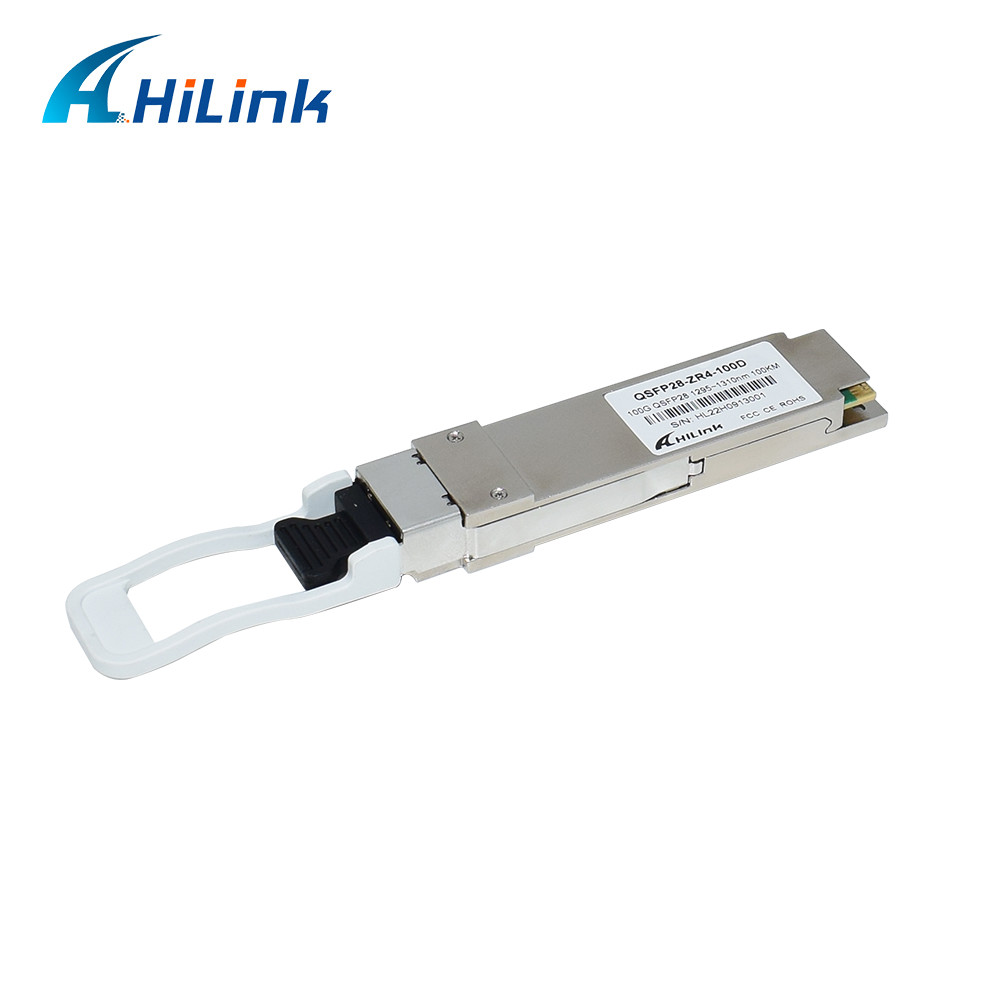

100G QSFP28 ZR4+
HL -Q31C-ZR4 is designed for 80km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter- face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.
QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4 LAN-WDM lanes MUX/DEMUX design
4x25G electrical interface
Maximum power consumption 6.5W
LC duplex connector
Supports 103.125Gb/s aggregate bit rate
Up to 100km transmission on single mode fiber
Operating case temperature: 0℃ to 70℃
Single 3.3V power supply
RoHS 2.0 compliant
Ordering Information
| Part Number | Transmitter | Output Power | Receiver | Sensitivity | Reach | Temp | DDM | RoHS |
| HLQSFP28ZR4+ | LWDM EML | +3.0~ +6.5dBm | SOA PIN | < -30.0dBm | 100km | 0~ 70 oC | Available | Compliant |
| Part Number | Data Rate | Distance | Wavelength | Output Power | Sensitivity | Remark |
| HQ28-SR-M85-X1D | 100Gbps | MM 100m (OM4) |
850nm | -8.4 ~ +2.4dBm | -10.3dBm | QSFP28-100G-SR4 |
| HQ28-LR-L13-10D | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28-100G-LR4 |
| HQ28-LR-L13-10C1 | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28 100G-LR4-Ethernet |
| HQ28-ER-L13-40D | 100Gbps | SM 40km | 1310nm | -2.9 ~ +4.5dBm | -16.9dBm | QSFP28 100G-ER4 |
| HQ28-K7-L13-xxx | 100Gbps | SM 2km | 1310nm | -6.5 ~ +2.5dBm | -11.5dBm | QSFP28 100G-CWDM4 |
The 25g~100G Series
| 25G SFP28 SR4 | 25Gbps 850nm SFP28 transceiver 100M |
| QSFP-40G-SR4 | QSFP-SR4, MMF, 850nm, 150M, MPO |
| QSFP-40G-CSR4 | QSFP+, MMF, 850nm, 300M (OM3) - MPO |
| QSFP-40G-LR4 | QSFP-LR4, SMF, 1270nm~1330nm,15KM LC |
| QSFP-40G-PSM-IR4 | QSFP+-IR4,SMF ,1310NM 2KM MPO |
| 40G QSFP+ PSM 10KM | QSFP+-LR4,SMF ,1310NM 10KM MPO |
| 100G QSFP28 SR4 | 100GBASE-SR4 QSFP28 |
| QSFP28 CWDM4 2KM | 100G QSFP28 CWDM4 2KM 1271~1331 |
| QSFP28 CWDM4 500M | 100G QSFP28 CWDM4 500 1271~1331 |
| QSFP28 PSM4 1310nm 2km | QSFP28 PSM4 1310nm 2km MPO SMF |
| 25G SFP28 AOC 1M | 25Gbps 850nm Multimode SFP28 AOC 1~100M |
| 25G SFP28 DAC SFF-8402 | 25G SFP28 to SFP28 DAC 1m 3m 5meter |
| 40G QSFP+ AOC 1M | QSFP-AOC Active 40Gbase 1~100meter |
| 40G QSFP+ DAC 1M | QSFP SFF8436 Passive Cable 1~5M |
| 100G QSFP28 TO QSFP28 DAC | 1M 2M 3M 5M SFF-8665 100G QSFP28 Passive |
| 100G QSFP28-SR4 AOC 1M | 100GBASE-SR4 QSFP28 AOC Fiber |
