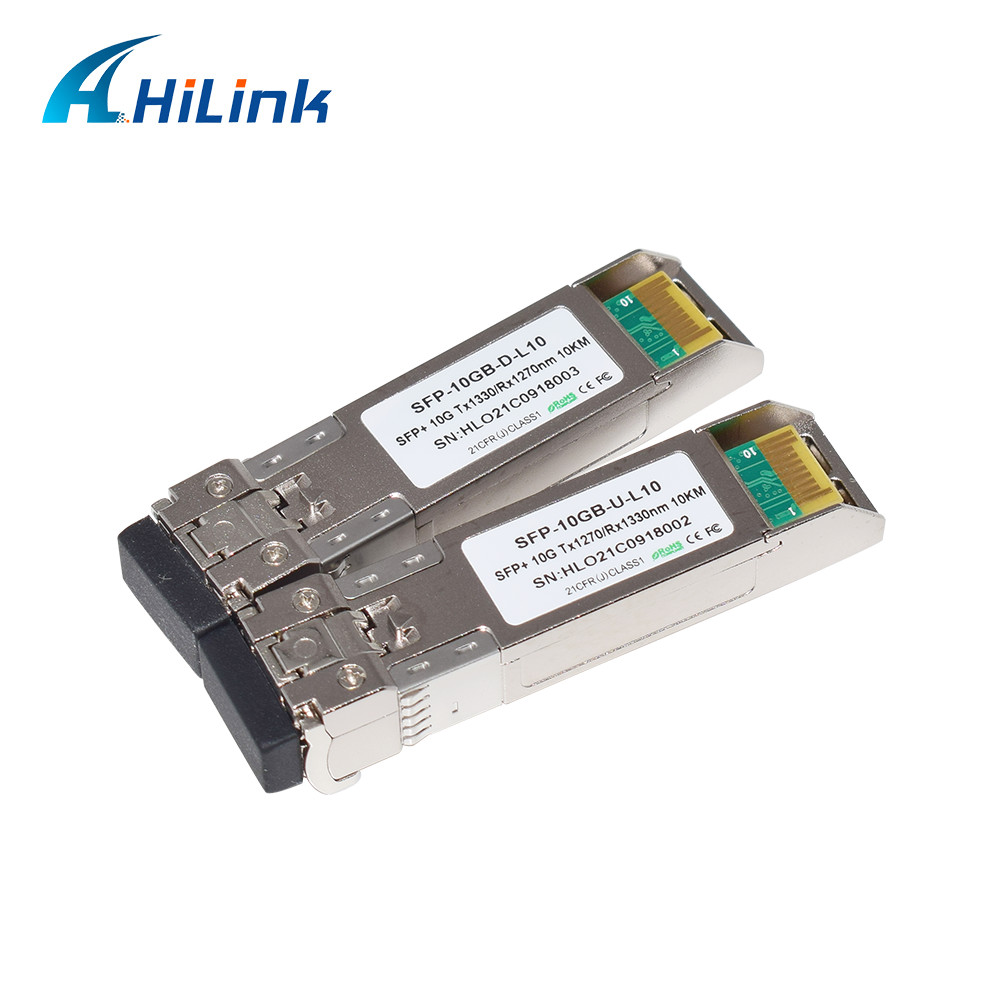

WDM 10G SFP+ BIDI 10KM LR 1270/1330nm SFP Transceiver LC DOM SFP
General
HLSBxx1XL-CD10 series single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The HLSBxx1XL-CD10 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.
Features
Supports 9.95 to 10.3Gb/s bit rates
Simplex LC Connector
Hot pluggable SFP+ footprint
Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
Applicable for 10km SMF connection
Low power consumption, < 1W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 80 °C
Application
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
BiDi(WDM) SFP / XFP Transceivers
| 155M/622M BiDi SFP LC/SC | 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM | |
| 4/2/1G BIDI SFP LC/SC | 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM | |
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 60km | SFP+ BiDi 60km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 60km | SFP+ BiDi 60km Tx1330/Rx1270nm LC | |
| SFP+ BiDi 1490 80km | SFP+ BiDi 80km Tx1490/Rx1550nm LC | |
| SFP+ BiDi 1550 80km | SFP+ BiDi 80km Tx1550/Rx1490nm LC | |
| 10G XFP BiDi | XFP BiDi 1270 20km | XFP BiDi 20km Tx1270nm/Rx1330nm LC |
| XFP BiDi 1330 20km | XFP BiDi 20km Tx1330nm/Rx1270nm LC | |
| XFP BiDi 1270 40km | XFP BiDi 40km Tx1270nm/Rx1330nm LC | |
| XFP BiDi 1330 40km | XFP BiDi 40km Tx1330nm/Rx1270nm LC | |
| XFP BiDi 1270 60km | XFP BiDi 60km Tx1270nm/Rx1330nm LC | |
| XFP BiDi 1330 60km | XFP BiDi 60km Tx1330nm/Rx1270nm LC | |
| XFP BiDi 1490 80nm | XFP BiDi 80km Tx1490nm/Rx1550nm LC | |
| XFP BiDi 1550 80nm | XFP BiDi 80km Tx1550nm/Rx1490nm LC | |
Product Picture
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1260 | 1270 | 1280 | nm | |
| 1320 | 1330 | 1340 | ||||
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1320 | 1330 | 1340 | nm | |
| 1260 | 1270 | 1280 | ||||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -12.6 | dBm | 2 | ||
| Receiver Sensitivity(ER=6) | PSEN2 | -14.4 | dBm | 2 | ||
| Average Receive Power | PAVE | 0.5 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -17 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
