Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL- 100G - QSFP-LR1 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic bag, Retail box |
| Delivery Time: | 2-7 working days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 10pcs/Week |
|
Detail Information |
|||
| Product Name: | 100G QSFP28 LR1 | Application: | 100Gbase |
|---|---|---|---|
| Wavelength: | 1310nm | Distance: | 10KM |
| Connector: | LC | DDM/DOM: | Yes |
| Fiber Type: | SMF | ||
| High Light: | Optical Transceiver Module 10KM,SMF Optical Transceiver Module,Single Lambda QSFP28 Transceiver |
||
Product Description
100GBASE-LR1 QSFP28 Single Lambda 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
Kindly Remind :
Tell us your needed compatibility !
Our products are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
The 100GBASE-LR1 Single Lambda QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors.
FEATURES & BENEFITS :
• Compliant with QSFP28 MSA
• Compliant with SWDM MSA
• Compliant with IEEE802.3bm CAUI-4
• Hot-pluggable QSFP28 form factor
• 4x25Gb/s 850mm VCSEL-based transmitter
• Supports 103.1Gbps aggregate bit rate
• Power dissipation<3.5W
• Case temperature range of 0°C to 70°C
• Duplex LC receptacles
• CAUI-4 electrical interface
• RoHS compliant
APPLICATION :
| Parameter | Symbol | Min | Typ | Max | Units | Notes |
| Operating Case Temperature | TC | 0 | - | +70 | °C | |
| Power Supply Voltage | VCC | 3.14 | 3.3 | 3.46 | V | |
| Data rate | 103.125 | 112 | Gb/s |
QSFP SERIES :
| QSFP | Nominal Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz*km)*3 | Cable Distance*1 | Power Consumption (W) | Pull Tab Color |
| QSFP-100G-SR4-S | 850 | MMF |
50.0 50.0 |
2000 (OM3) 4700 (OM4) |
70m 100m |
3.5 | Beige |
| QSFP-100G-LR4-S | 1295, 1300, 1304, 1309 | SMF | G.652 | - | 10km | 3.5 | Blue |
| QSFP-100G-CWDM4-S | 1271, 1291, 1311, 1331 | SMF | G.652 | - | 2km | 3.5 | Green |
| QSFP-100G-PSM4-S | 1310 | SMF | G.652 | - | 500m | 3.5 | Orange |
| QSFP-100G-SM-SR | 1271, 1291, 1311, 1331 | SMF | G.652 | - | 2km | 3.5 | Green |

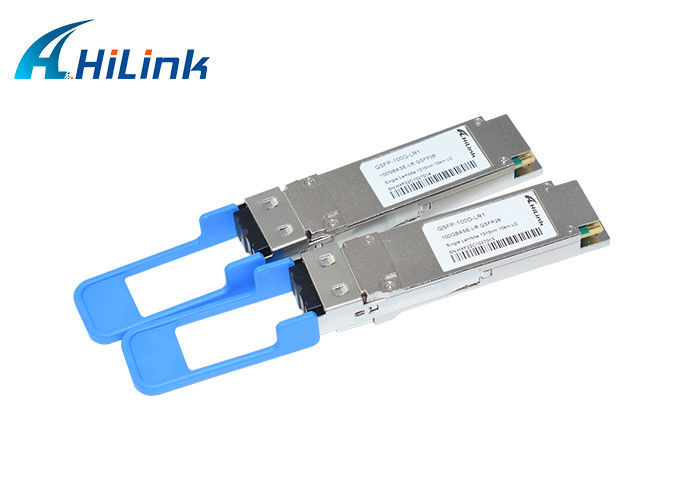

PRODUCT PICTURE:
