Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hilink |
| Certification: | CE FCC Rohs |
| Model Number: | HL-DW-AAWG-2-40CH |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Plastic packaging, Carton |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 200PCS/month |
|
Detail Information |
|||
| Product Name: | 2*40CH DWDM AAWG Mux Demux | Chassis: | 1U Rack |
|---|---|---|---|
| Channel Wavelength: | ITU Grid | Insertion Loss: | IL<6.0dB, Typ. 4.5dB |
| Connector: | LC/UPC | Operating Temperature: | -20 To +70℃ |
| High Light: | DWDM Athermal AWG Mux Demux,100Ghz C- Band DWDM Mux Demux,2*40CH DWDM Mux Demux |
||
Product Description

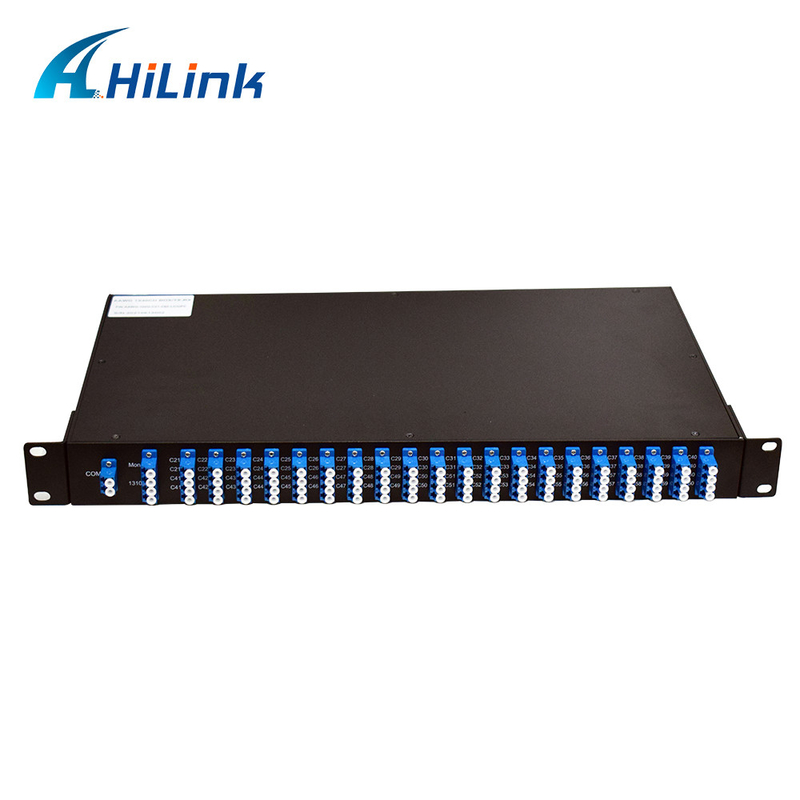

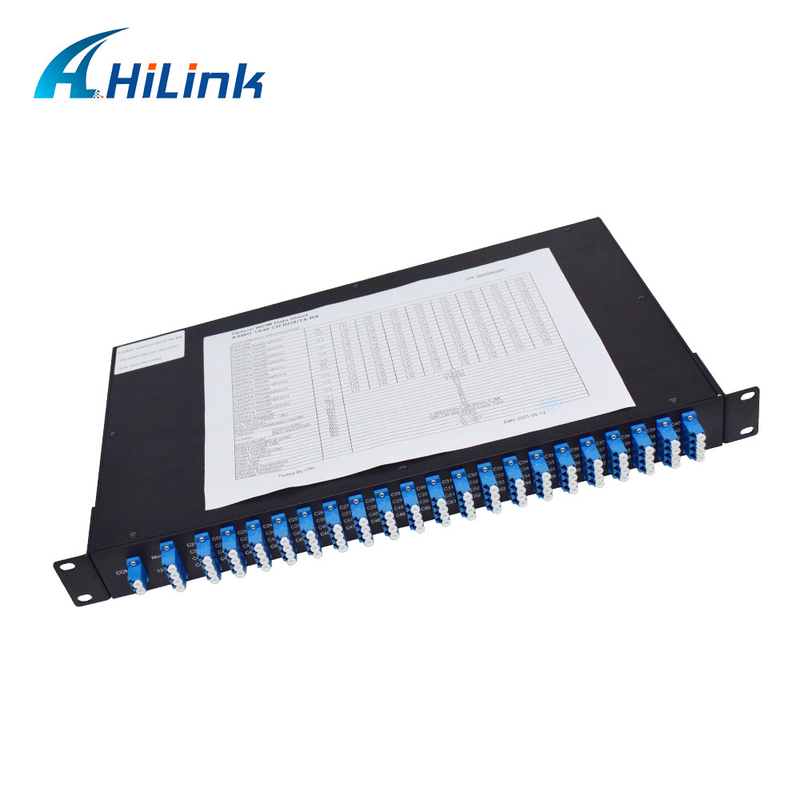

100Ghz C-band DWDM Athermal AWG Mux Demux for DWDM Network
100GHz C Band DWDM AAWG (Athermal Arrayed Waveguide Grating) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.
DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.
| Parameter | Unit | Value | |
| Pass Band Type | Flat-top | ||
| Channel Spacing | Ghz | 100 | |
| Channel Number | 40 | ||
| Wavelength Accuracy | nm | ±0.05 | |
| 1dB Pass Band | nm | ≥0.38 | |
| 3dB Pass Band | nm | ≥0.58 | |
| Insertion Loss | dB | ≤6.0,Typ. 4.5 | |
| Ripple | dB | ≤0.5 | |
| Uniformity | dB | ≤1.5 | |
| Adjacent Crostalk | dB | ≥25 | |
| Non-adjacent Crosstalk | dB | ≥30 | |
| Total Crosstalk | dB | ≥22 | |
| Polarization Dependent Los(PDL) | dB | ≤0.5 | |
| PMD² | ps | ≤0.5 | |
| Chromatic Dispersion² | ps/nm | ±20 | |
| Returm Loss | dB | ≥45 | |
| Fiber | Input Port | mm | 0.9 |
| Output Ribbon | - | - | |
| Fan Out | mm | 0.9 | |
| Operation Temperature | ℃ | -20~+70 | |
| Storage Temperature | ℃ | -40~+85 | |
| Package | mm | 1U | |
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
