|Place of Origin:||China|
|Certification:||CE FCC Rohs|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Blister Packaging|
|Delivery Time:||3-5 Working Days|
|Payment Terms:||T/T, Western Union, MoneyGram,Paypal|
|Supply Ability:||1000PCS Per Day|

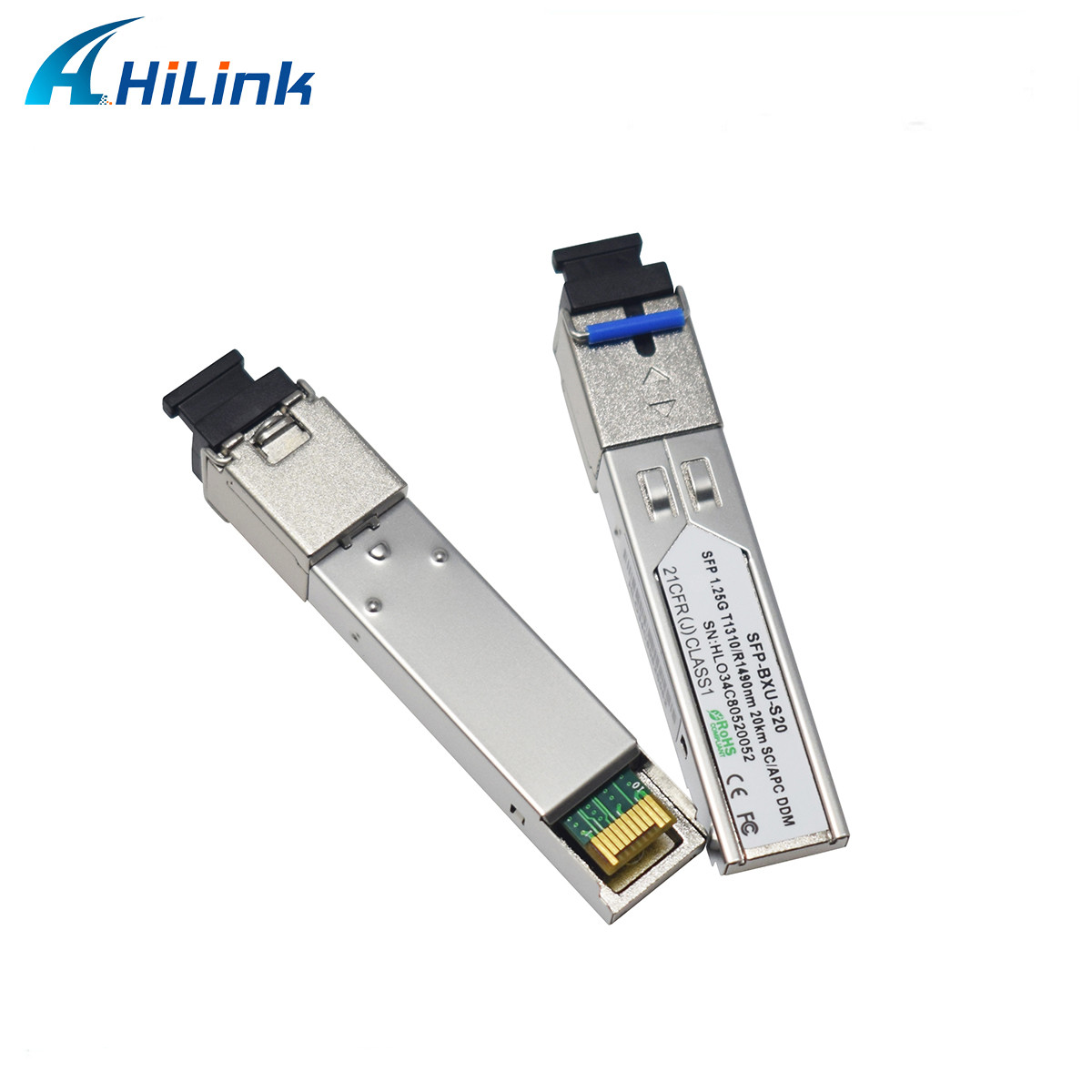

BIDI SFP Transceiver Modules,
1.25G SFP Transceiver Modules,
20KM SFP Transceiver Modules
Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Hot-pluggable SFP footprint
Wavelengths : 34/43 : Tx1310nm/Rx1490nm ; Tx1490nm/Rx1310nm
35/53 : Tx1310nm/Rx1550nm ; Tx1550nm/Rx1310nm (Optional)
Single LC/SC receptacle optical interface compliant
1310nm FP laser transmitter；1490nm DFB laser transmitter
RoHS compliant and Lead Free
Up to 20km on 9/125um SMF
Metal enclosure for lower EMI
Single 3.3V power supply
Low power dissipation <600MW
Commercial operating temperature range: 0°C to 70°C
|Item No.||WDM-SFPXX-20||Vendor Name||Hilink|
|Form Type||SFP||Max Data Rate||1.25Gbps|
|Wavelength||1310/1490nm||Max Cable Distance||20KM|
|Interface||LC/SC simplex||Optical Components||DFB|
|Cable Type||SMF||DOM Support||Yes|
|TX Power||-8~-4dBm||Receiver Sensitivity||<-25dBm|
|Commercial Temperature Range||0 to 70°C (32 to 158°F)||HTS-Harmonized Code||8517706000|
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)
1. Class 1 Laser Safety.
2. Also specified to meet curves in FC-PI-2 Rev. 10.0 Figure 18, which allow trade-off between wavelength, spectral width.
3. Equivalent extinction ratio specification for Fibre Channel. Allows smaller ER at higher average power.
4. Unfiltered, 20-80%. Complies with IEEE 802.3 (Gig. E) and FC 1x eye masks when filtered.
5. Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
6. Measured with conformance signals defined in FC-PI-2 Rev. 10.0 specifications.
7. Measured with PRBS 27-1 at 10-12 BER .
* Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
1.06 Gb/s Fibre Channel
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
