Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hilink |
| Certification: | CE Rohs |
| Model Number: | QSFP-40G-PSM4-LR4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pieces |
| Price: | Send Inquiry know latest price |
| Packaging Details: | Plastic box+Carton |
| Delivery Time: | 5-8 working day |
| Payment Terms: | T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance |
| Supply Ability: | 2000 Pieces/Week |
|
Detail Information |
|||
| Wavelength: | 1310nm | Logo: | Can Be Customzised |
|---|---|---|---|
| Operating Temperature: | 0 To 70℃ | CE RoHS: | Compliant |
| Product Name: | 40G-QSFP-PSM4-LR4 | Use: | Data Center |
| High Light: | QSFP+ MPO Connector Transceiver Module,40G Base QSFP+ MPO Transceiver Module,PSM4 LR4 QSFP+ MPO Transceiver Module |
||
Product Description
|
Item |
Description |
|---|---|
| Transceiver form factor | QSFP+ |
| Transmission speed | 40GE |
| Center wavelength (nm) | 1310nm |
| Standards compliance | 40GBASE-PSM4 |
| Connector type | MPO/MTP (8-strand or 12-strand, type B, female connector) |
| Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
| Transmit power (dBm) | -8.2 to +0.5 |
| Maximum receiver sensitivity (dBm) | -12.6 |
Features:
4 independent full-duplex channels
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
MTP/MPO connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
QSFP MSA compliant
Up to 10km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Applications:Rack to rack
Data centers Switches and Routers
Metro networks
Switches and Routers
40G BASE-LR4-PSM Ethernet Links
Product Description

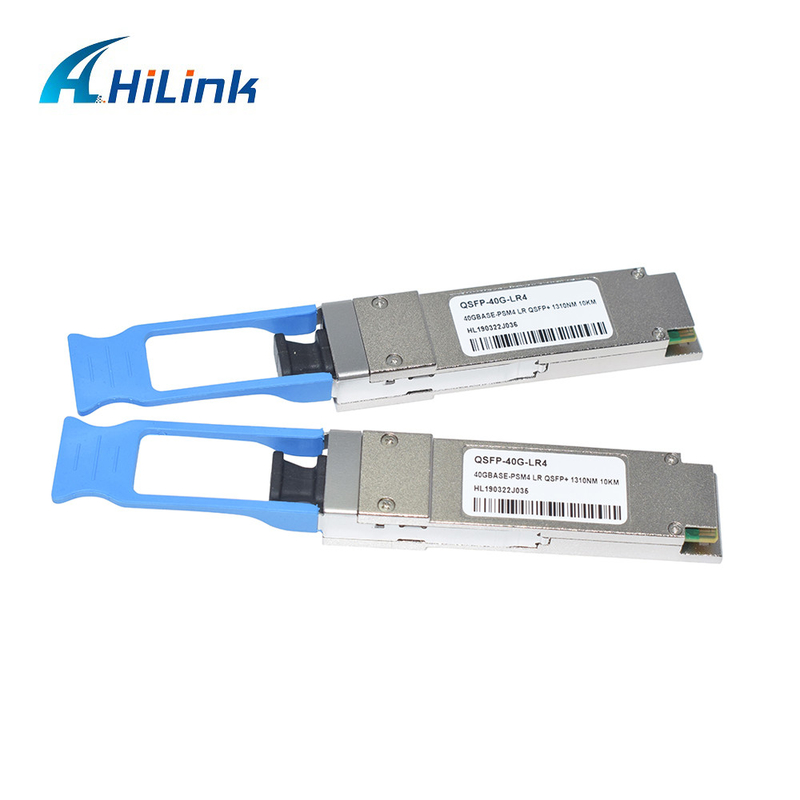

Real Picture
Warranty
We promise all the advertised optical transceivers are brand new with new components and parts.
We absolutely never use old and refurbished materials.
All the optical transceivers have been through functional test and aging test.
We provide 3 years warranty for all the optical transceivers from the date of shipment.Shipment
Delivery Notes : Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of by FedEx, DHL, UPS, TNT and EMS.
Some items in stock can be shipped out on the same day .
The Items with no stock, then the shipment would be done in 3-7 days.
DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.
For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Guarantee:
›& Brand new.
›& OEM/ODM is available. ›& 100% through quality test and aging test. ›& 3 years warranty (From the date of shipment).
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
