Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-EPON-OLT-PX20++
EPON OLT PX20++ 20KM Tx1490nm 1.25G Rx1310nm 1.25G SFP Module SC/UPC
General
EPON OLT PX20+++ is an SFP package hot-swappable optical module (in accordance with IEEE 802.3ah 1000BASE-PX20 +) for connecting optical data communication links. It adopts single-fiber bidirectional design, and the uplink and downlink rate can reach up to 1.25Gbps. It is widely compatible with mainstream OLT devices in the market.
Features
Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application
1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
Small Form Factor Pluggable package with SC/UPC Connector
0 to 70°C operating temperature
Single 3.3V power supply
Digital diagnostic monitoring interface
Digital burst RSSI function to monitor the input optical power level
LVPECL compatible data input/output interface
LVTTL transmitter disable control
LVTTL transmitter laser fault alarm
Fast LVTTL receiver Signal Detect (SD) indication response
Low EMI and excellent ESD protection
Class I laser safety standard IEC-60825 compliant
RoHS6 Compliance
Application
Gigabit-capable Passive Optical Networks (GPON)
Standards
Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
Complies with ITU-T G.984.2 Amendment 1
Complies with FCC 47 CFR Part 15, Class B
Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Complies with SFF-8472
Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.
Compatible with Telcordia GR-468-CORE

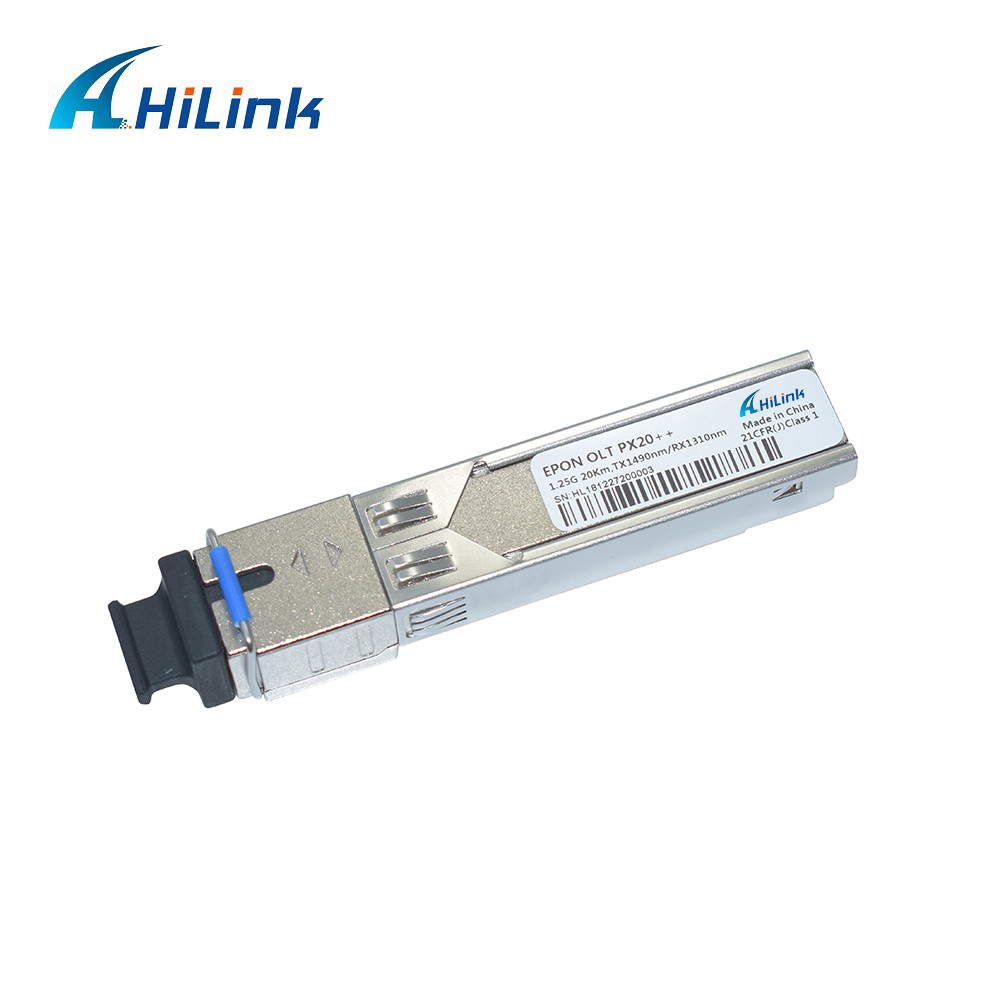

Product Picture
Solution:
Ordering Information
Part. No | Specifications | ||||
Package | Class |
Temperature (°C) |
Reach (km) |
DDM | |
HL-GPON-OLT-B+ | SFP | GPON OLT Class B+ | -5~70 | 20 | Y |
HL-GPON-OLT-B+ IT | SFP | GPON OLT Class B+ | -40~85 | 20 | Y |
HL-GPON-OLT-C+ | SFP | GPON OLT Class C+ | -5~70 | 20 | Y |
HL-GPON-OLT-C+ IT | SFP | GPON OLT Class C+ | -40~85 | 20 | Y |
HL-GPON-OLT-C++ | SFP | GPON OLT Class C++ | -5~70 | 20 | Y |
HL-GPON-OLT-C+++ | SFP | GPON OLT Class C+++ 7dBm | -5~70 | 20 | Y |
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will reply shortly.
HILINK reserves the right to make changes to the products or information contained herein without notice. No liability is assumed as a result of their use or application. No rights under any patent accompany the sale of any such products or information.
