Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-QSFP28-100G-SR4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic Flat, Retail box, by requires |
| Payment Terms: | L/C, T/T, Western Union.Paypal |
| Supply Ability: | 100/PCS/MONTH |
|
Detail Information |
|||
| Data Rate: | 100G BASE | Wavelength: | 850nm |
|---|---|---|---|
| Distance: | 100M | Operating Temperature: | 0~+70℃ |
| Fiber Connector: | MPO/MTP | Warranty: | 3 Years |
| High Light: | 100G SR4 QSFP28 Transceiver,850nm QSFP28 Transceiver,100m 100G QSFP28 Transceiver |
||
Product Description
100G SR4 850nm 100m QSFP28 SR4 MMF 850nm SFP Transceiver DOM
100G QSFP28 SR4
The HL-QSFP28-SR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm,100GBASE SR4 Applications,or 100G Gigabit Ethernet and Infiniband and FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25.78Gbps operation for an aggregate data rate of 103.12Gbps 70m using OM3 fiber. These modules are designed to operate over multi mode fiber systems using850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP28 module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
100GBASE-LR4
Infiniband QDR and DDR interconnects
100G Datacom connections
|
Part Number |
Product Description |
|
HL-QSFP-40G-SR4 |
QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
|
HL-QSFP-40G-LR4 |
QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
|
HL-QSFP-40G-ER4 |
QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM |
|
HL-QSFP-100G-SR4 |
QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
| HL-QSFP-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40K |

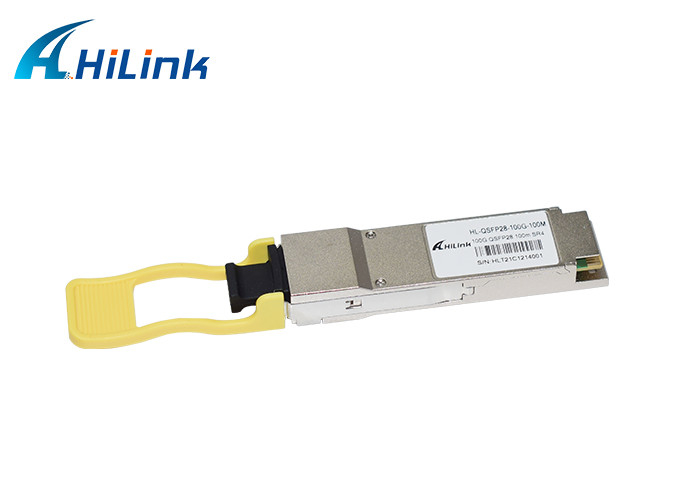

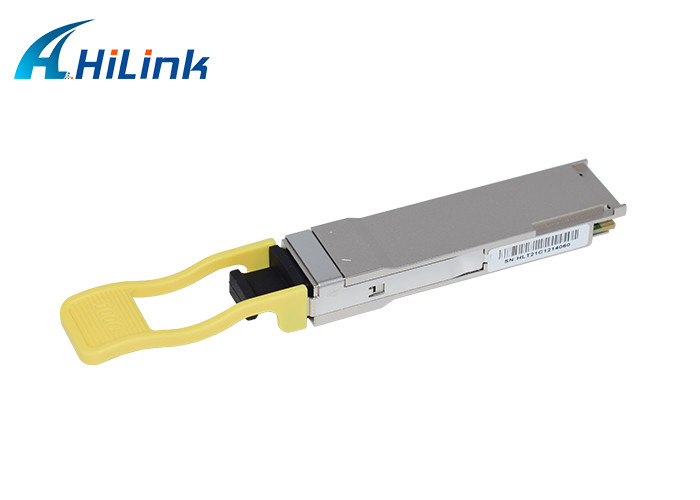

Product Picture Shows:
FAQ:
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
