GLC-ZX 80KM 1.25G SFP Transceiver 1550nm SMF 1000BASE LC SFP Module DOM

GLC-ZX 80KM 1.25G SFP Transceiver 1550nm SMF 1000BASE LC SFP Module DOM

1000BASE LC SFP Module

1550nm SFP Module

80KM 1.25G SFP Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFP-1.25G-80KM

Contact Us
Request A Quote
Product Details
Data Rate:
1.25G
Distance:
80KM
Connector:
Dual LC
Wavelengh:
1550nm
Warranty:
3 Years
CE FCC:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Blister Packaging 10pcs/tray
Payment Terms
T/T, Western Union
Supply Ability
500/week
Product Description

GLC-ZX 80KM 1.25G Ethernet 80KM 1550nm SMF 1000BASE LC SFP Module DOM





General:

        1.25G 80KM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form

Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.



Features:

Up to 1.25Gb/s dual data links

Hot-pluggable SFP footprint

1550nm DFB laser transmitter

Duplex LC connector

Up to 80km on 9/125µm SMF

Metal enclosure for lower EMI

Single +3.3V power supply

Low power dissipation <700mW

Commercial operating temperature range: 0°C to +70°C



Applications:

Gigabit Ethernet

1.06 Gb/s Fibre Channel



1000Base Transceiver Series:

GLC-SX 100BASE-SX SFP 850nm LC 550M
GLC-LX/LH 100BASE-LH SFP 1310nm LC 10KM
GLC-EX-1310 100BASE-EX SFP 1310nm LC 40KM
GLC-EX-1550 100BASE-EX SFP 1550nm LC 40KM
GLC-ZX-80 100BASE-ZX SFP 1550nm LC 80KM
GLC-ZX-120 100BASE-ZX SFP 1550nm LC 120KM
GLC-ZX-160 100BASE-ZX SFP 1550nm LC 160KM
GLC-ZX-200 100BASE-ZX SFP 1550nm LC 200KM



Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.



What we supply:

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.

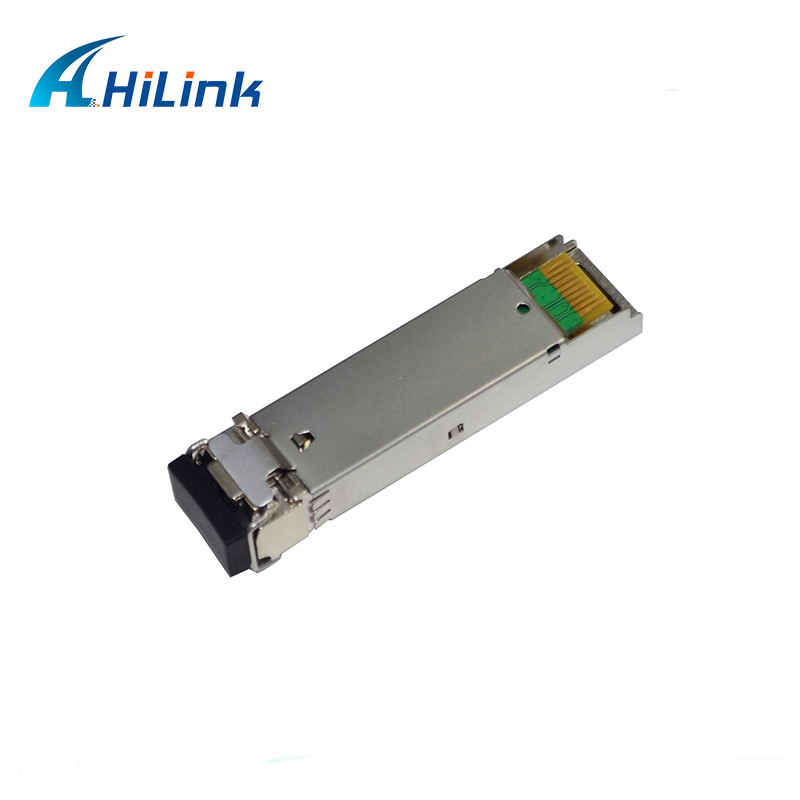

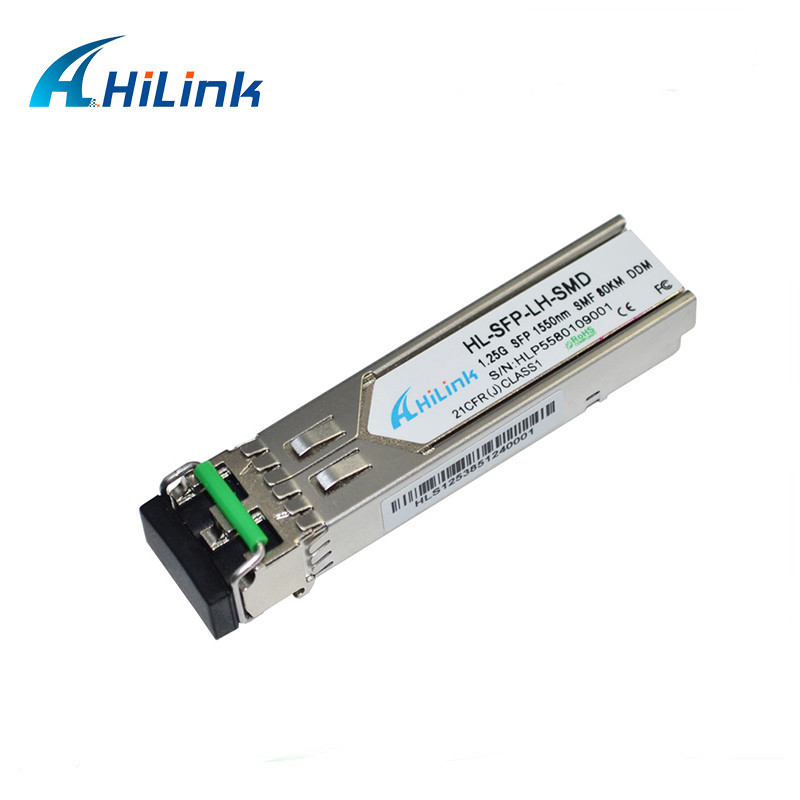

Product picture show:

GLC-ZX 80KM 1.25G SFP Transceiver 1550nm SMF 1000BASE LC SFP Module DOM 0GLC-ZX 80KM 1.25G SFP Transceiver 1550nm SMF 1000BASE LC SFP Module DOM 1GLC-ZX 80KM 1.25G SFP Transceiver 1550nm SMF 1000BASE LC SFP Module DOM 2GLC-ZX 80KM 1.25G SFP Transceiver 1550nm SMF 1000BASE LC SFP Module DOM 3

Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Output Opt. Power PO 0 - +5 dBm 1
Optical Wavelength λ 1540 - 1570 nm
Spectral Width σ - - 1 nm
Optical Rise/Fall Time tr/tf - 170 260 ps 2
Deterministic Jitter Contribution TXΔDJ - - 0.07 UI 3
Total Jitter Contribution TXΔTJ - - 0.007 UI
Optical Extinction Ratio ER 9 - - dB
Receiver
Average Rx Sensitivity RSENS - - -25 dBm 4
Maximum Received Power RXMAX 0 - - dBm
Optical Center Wavelength λC 1270 - 1600 nm
LOS De-Assert LOSD - - -25 dBm
LOS Assert LOSA -36 - - dBm
LOS Hysteresis   0.5 - - dB



Notes:

  • Class 1 Laser Safety.
  • Unfiltered, 20-80%.
  • Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
  • Measured with PRBS 27-1 at 10-12 BER .

Mechanical Specifications:

GLC-ZX 80KM 1.25G SFP Transceiver 1550nm SMF 1000BASE LC SFP Module DOM 4
