Full Compatible 10G BIDI 5KM 1270nm 1330nm Simplex LC Optical Transceiver Module

Full Compatible 10G BIDI 5KM 1270nm 1330nm Simplex LC Optical Transceiver Module

5KM Optical Transceiver Module

10G BIDI Optical Transceiver Module

1270nm 1330nm Optical Transceiver Module

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE FCC Rohs

Model Number:

HL-10G-BIDI-SFP-5

Contact Us
Request A Quote
Product Details
Wavelength:
1270nm 1330nm
Distance:
5 KM
Warrenty:
3 Years
Connector:
LC
Product Name:
10G BIDI 5KM
Package:
Carton Box, Retail Box, Or By Required
Lead Time:
3-10 Working Days
Payment & Shipping Terms
Minimum Order Quantity
1 Pair
Price
Negotiable
Packaging Details
Plastic Box,Carton box, Retail box, Or by required
Delivery Time
1-4 days
Payment Terms
T/T, Western Union, L/C, Paypal
Supply Ability
2000 pairs per week
Product Description

Full Compatible 10G BIDI 5KM 1270nm 1330nm Simplex LC Optical Transceiver Module





Features:

Operating data rate up to 10.3125Gbps

Up to 5km transmission distance

High sensitivity PIN photodiode and TIA

LC single connector

Hot pluggable 20pin connector

Low power consumption <1.2 W

Single +3.3V±5% power supply

Compliant with SFF-8472&SFF-8431

Fully RoHS Compliant

Compliant with IEEE802.3ae 10GBASE-LR/LW

Operating temperature range:

         Commercial: 0°C to +70°C

         Industrial: -40°C to +85°C

Application:

          10GBASE-LR at 10.31Gbps

         10GBASE-LW at 9.95Gbps

          Other Optical Links

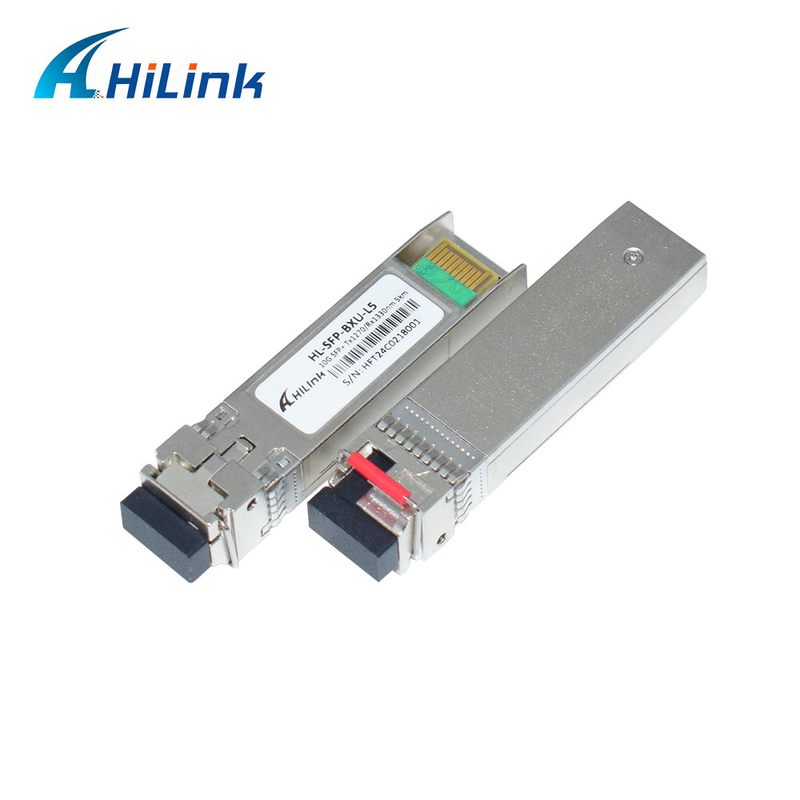

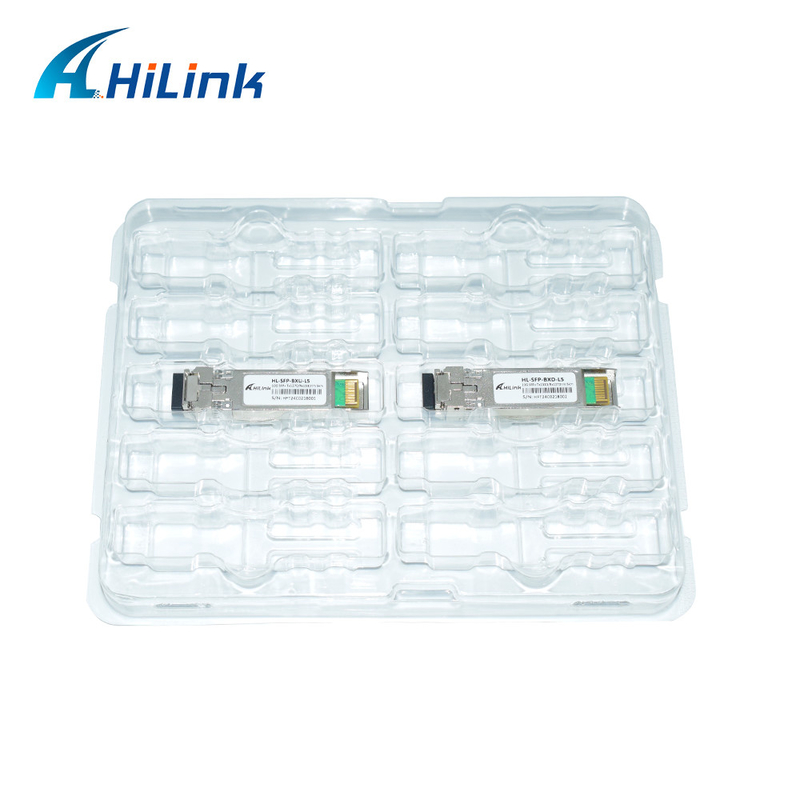

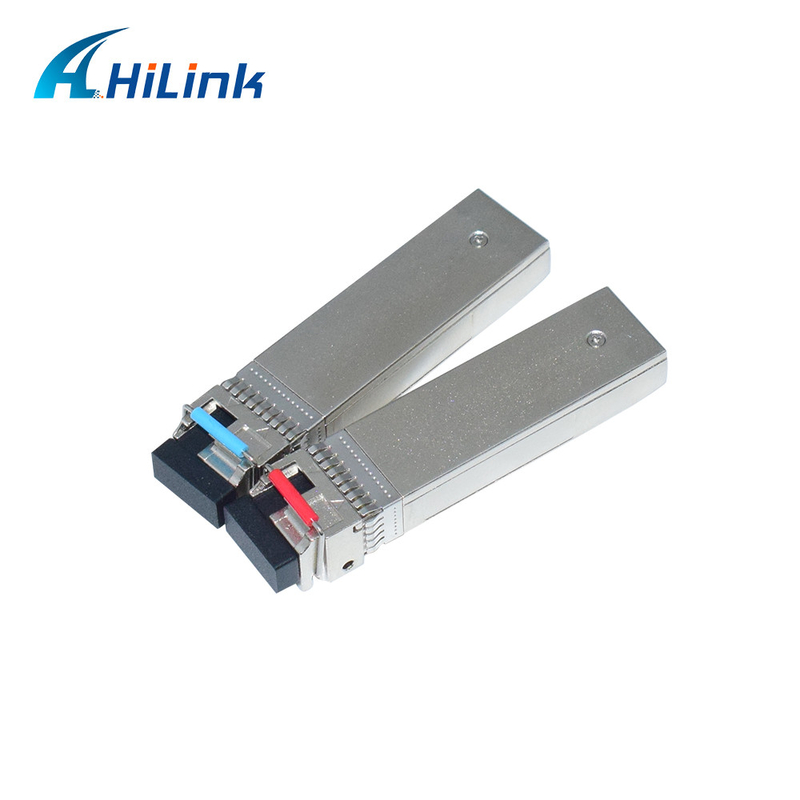

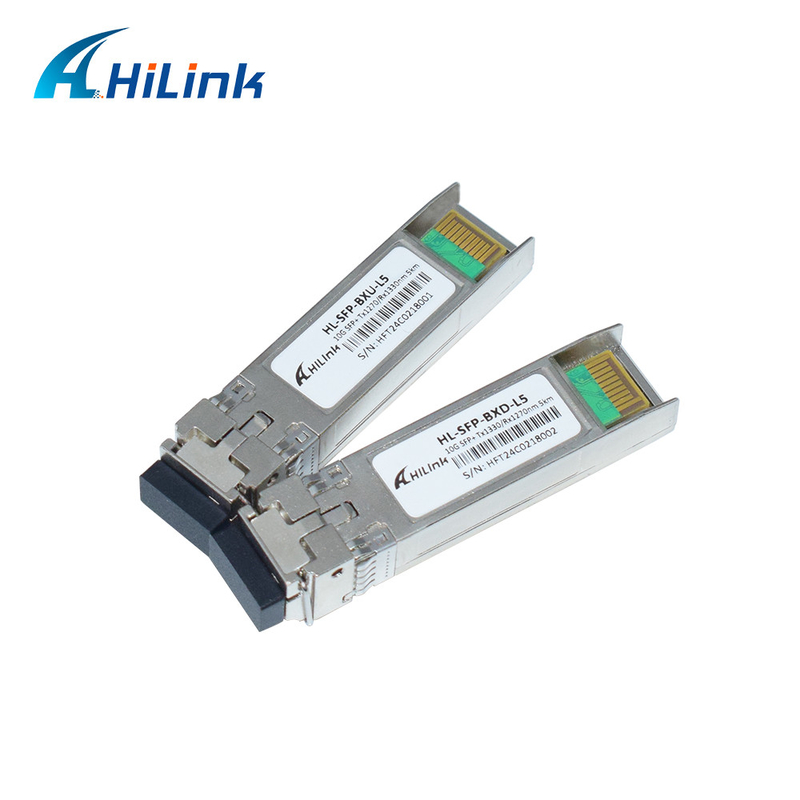

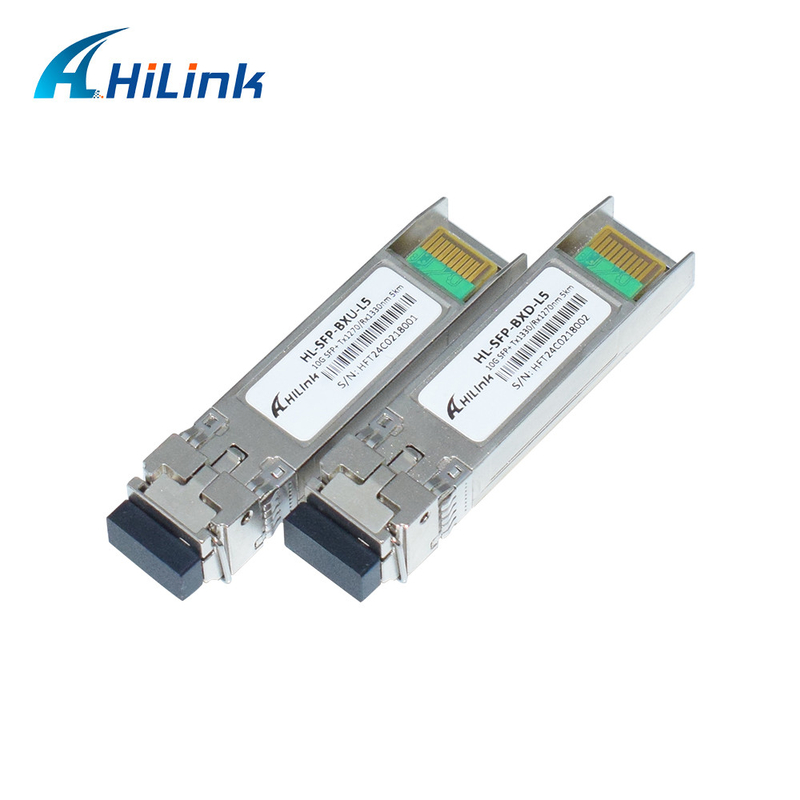

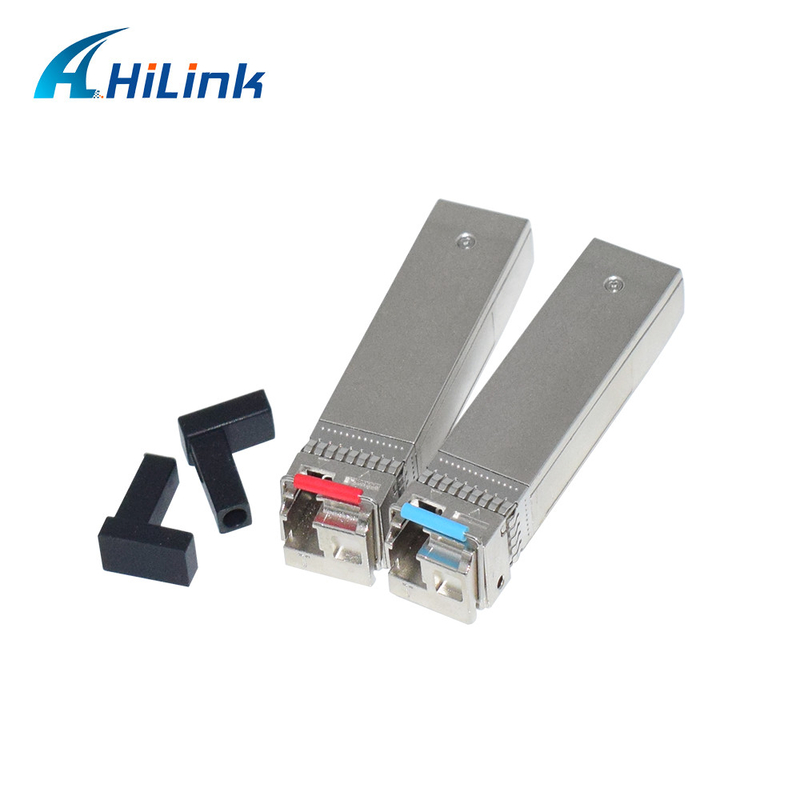

Picture:

Full Compatible 10G BIDI 5KM 1270nm 1330nm Simplex LC Optical Transceiver Module 0Full Compatible 10G BIDI 5KM 1270nm 1330nm Simplex LC Optical Transceiver Module 1Full Compatible 10G BIDI 5KM 1270nm 1330nm Simplex LC Optical Transceiver Module 2Full Compatible 10G BIDI 5KM 1270nm 1330nm Simplex LC Optical Transceiver Module 3

Company Information:

Full Compatible 10G BIDI 5KM 1270nm 1330nm Simplex LC Optical Transceiver Module 4

Full Compatible 10G BIDI 5KM 1270nm 1330nm Simplex LC Optical Transceiver Module 5

FAQ:

1. Can I have a sample order? What is your MOQ?

Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

3. What is your payment term?

T/T, Western Union or Paypal.

4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.

5. Could I use our own logo and label?

OEM service is provided.
