10G DWDM 100KM Optical Transceiver Module For Long Haul Transmission 100GHZ C Band Optical Module
Hilink 10G DWDM SFP+ ZR optical transceivers are designed for use in 10-Gigabit Ethernet links up to 100km over Single Mode fiber.
Features
Support Multi Rate 9.95-10.709Gbps
1550nm wavelength
SFI electrical interface
Hot Pluggable
2-wire interface for integrated Digital Diagnostic monitoring
SFP+ MSA package with duplex LC connector Hot pluggable
Very low EMI and excellent ESD protection +3.3V power supply
Power consumption less than 1 W
Operating case temperature: 0~+70°C
Specifications & Parameters
| Item No. |
DW-SFP10GX-100 |
Vendor Name |
Hilink |
| Form Type |
SFP+ |
Max Data Rate |
10Gbps |
| Wavelength |
DWDM CH17-CH61 |
Max Cable Distance |
0KM |
| Interface |
LC duplex |
Optical Components |
EML DWDM |
| Cable Type |
SMF |
DOM Support |
Yes |
| TX Power |
0~4dBm |
Receiver Sensitivity |
<-25dBm |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
HTS-Harmonized Code |
8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
-
10G Fiber Channel
-
Other optical links
-
SONET/SDH
-
DWDM Systems
DWDM Solution Example

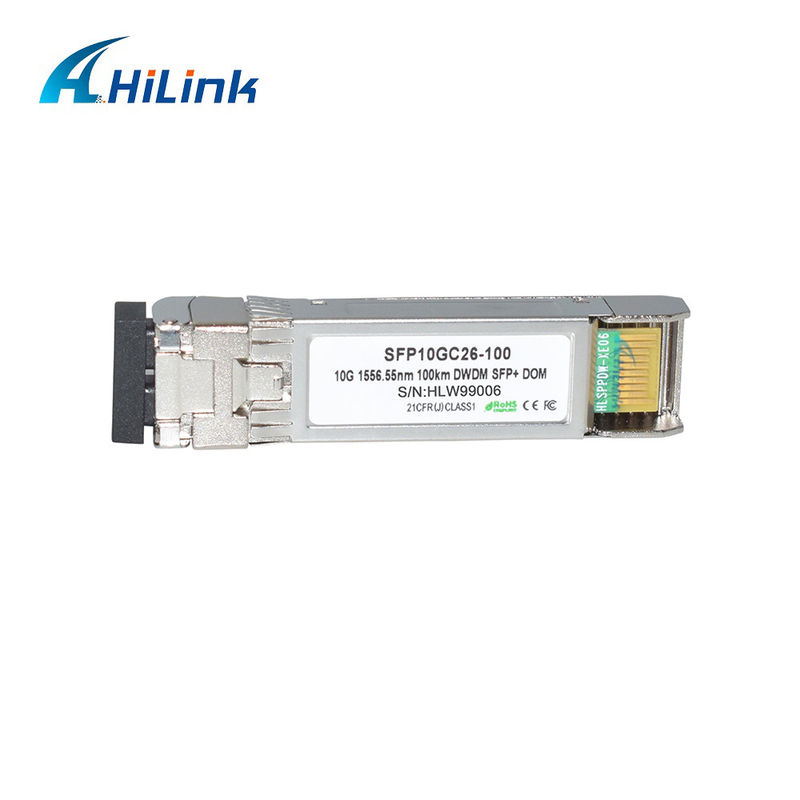

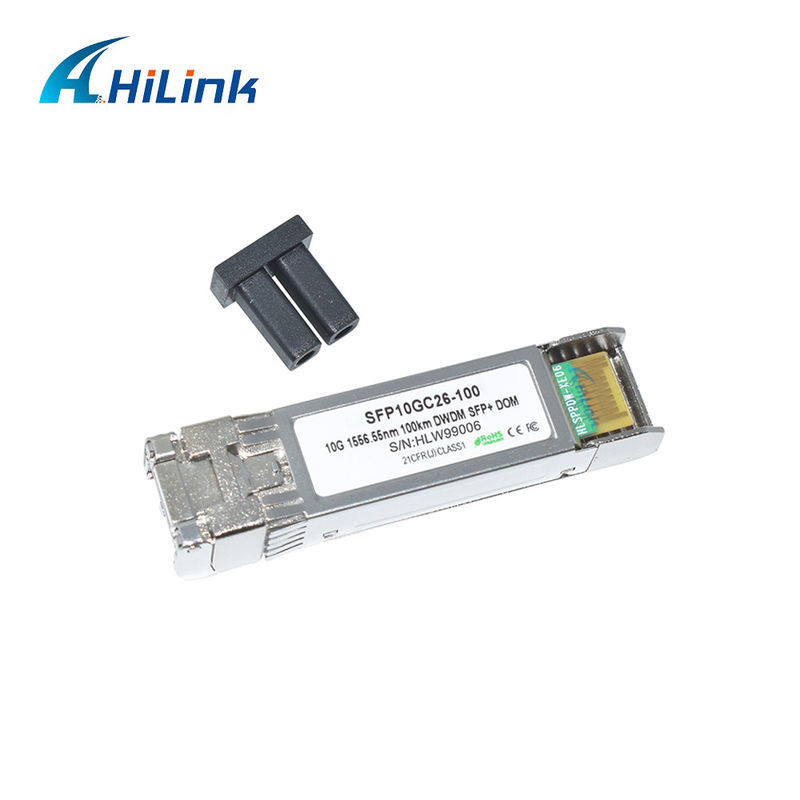

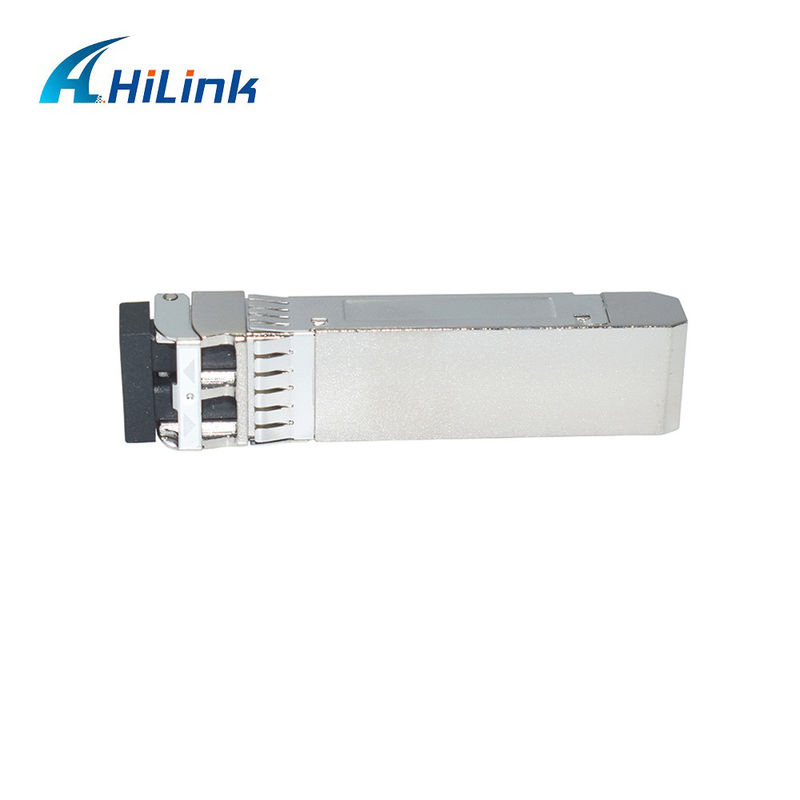

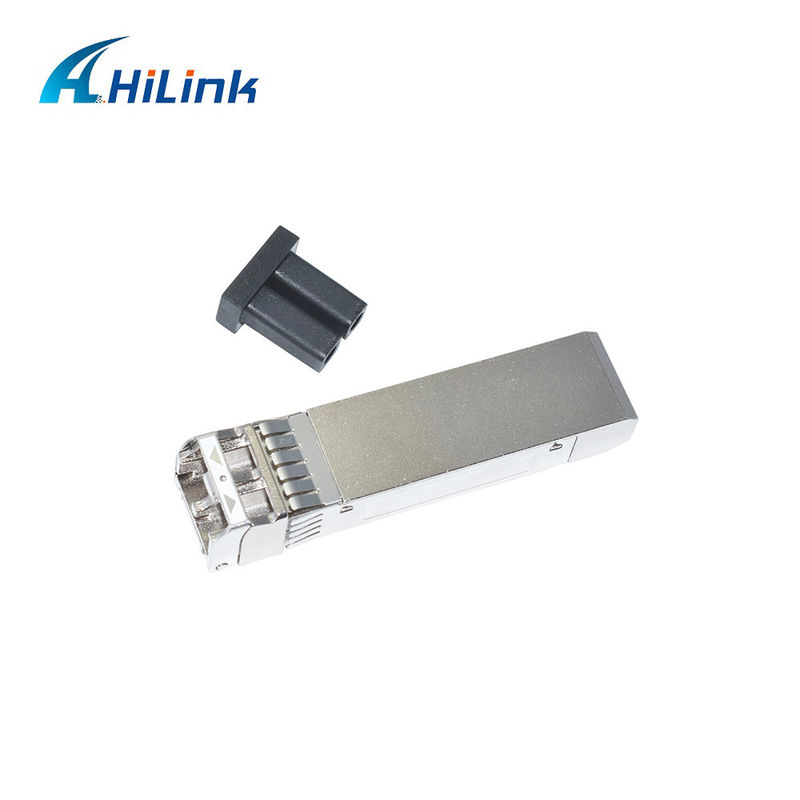

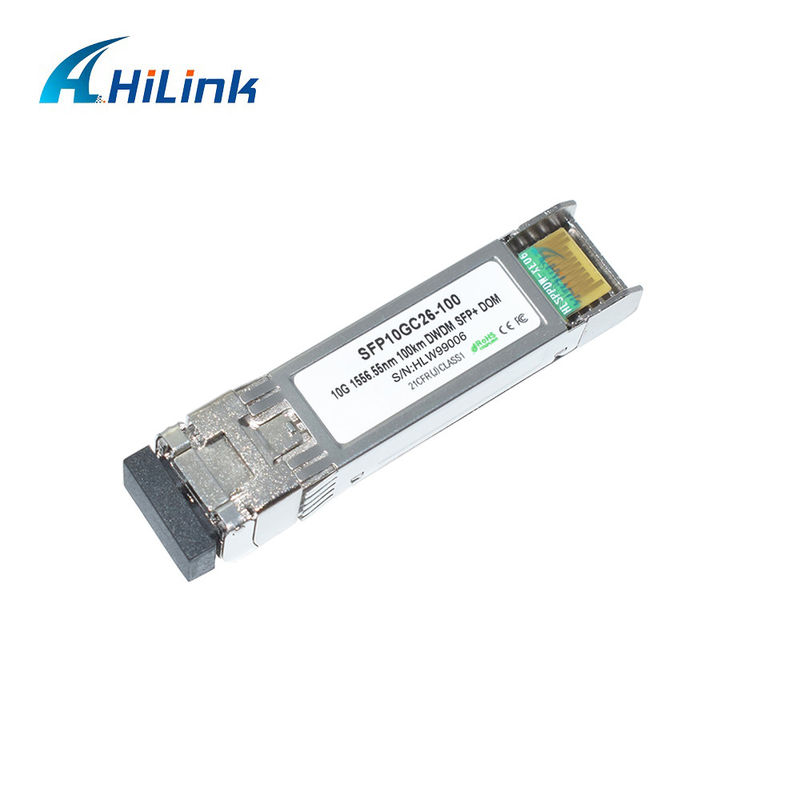

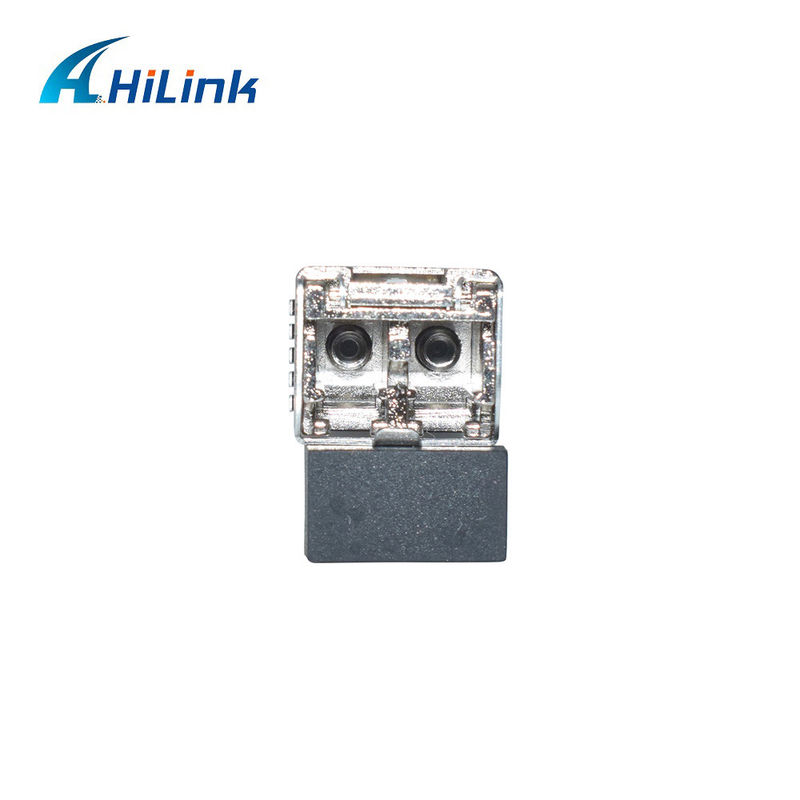

Details Photos
Packing& Shipping
Packaging
- We provide safe and reliable packaging: Static bag, Plastic bag, Retail box or by required
- Delivery time:1-5 working days
Shipment
- International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products passed CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
