QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules

QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules

1310NM QSFP LR4 Transceiver

10KM QSFP LR4 Transceiver

MPO QSFP LR4 Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFP-40G-PSM4

Contact Us
Request A Quote
QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules
Product Details
Data Rate:
40G
Distance:
10 Km
Wavelength:
1310nm
Fiber Type:
SMF
Fiber Connector:
MPO
Warranty:
3 Years
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Payment Terms
L/C, T/T, Western Union.Paypal
Supply Ability
100/PCS/MONTH
RELATED PRODUCTS
Good price 100G ZR QSFP28 Digital Coherent Optics Transceiver The Ultimate Solution for Fiber Optic Transceivers online

100G ZR QSFP28 Digital Coherent Optics Transceiver The Ultimate Solution for Fiber Optic Transceivers

Get Best Price
Good price Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 Optical Transceiver Module 1550nm 100km EML+ APD Communication & Networking Product online

Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 Optical Transceiver Module 1550nm 100km EML+ APD Communication & Networking Product

Get Best Price
Good price 100G ZR QSFP28 DCO 120KM C-Band Tunable Digital Coherent Optics Transceiver DOM LC online

100G ZR QSFP28 DCO 120KM C-Band Tunable Digital Coherent Optics Transceiver DOM LC

Get Best Price
Good price Hilink 100G QSFP28 ZR4 80KM LWDM 1295-1304NM SOA+PIN Duplex LC Connector Transceiver Module online

Hilink 100G QSFP28 ZR4 80KM LWDM 1295-1304NM SOA+PIN Duplex LC Connector Transceiver Module

Get Best Price
Contact Us
+86 17677464632
sales02@hilinktech.com
86-755-8317-6243
Contact Now
Product Description

MPO 40GBASE-PSM4 LR 1310nm QSFP+10KM Optical Transceiver Module



General

        The HL-QSDP40G-PSM4-LR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate data rate of 40Gbps 10km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.



Product Feature

Four-channel full-duplex transceiver modules

Transmission data rate up to 11.2Gbit/s per channel

Up to 10km transmission of single mode fiber

Low power consumption <2.5W,meet class 3

Operating case temperature: 0 to 70℃

3.3V power supply voltage

Hot Pluggable QSFP form factor

RoHS 6 compliant

Single MPO connector receptacle

Built-in digital diagnostic function



Application

Infiniband QDR and DDR interconnects

40G Ethernet

Proprietary High Speed Interconnections

Data center



QSFP Series :

Part Number Product Description
HL-QSFP-40G-SR4 QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M
HL-QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP-40G-ER4 QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-SR4 QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M
HL-QSFP28-100G-LR4 QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP28-100G-ER4 QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-ZR4

QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM

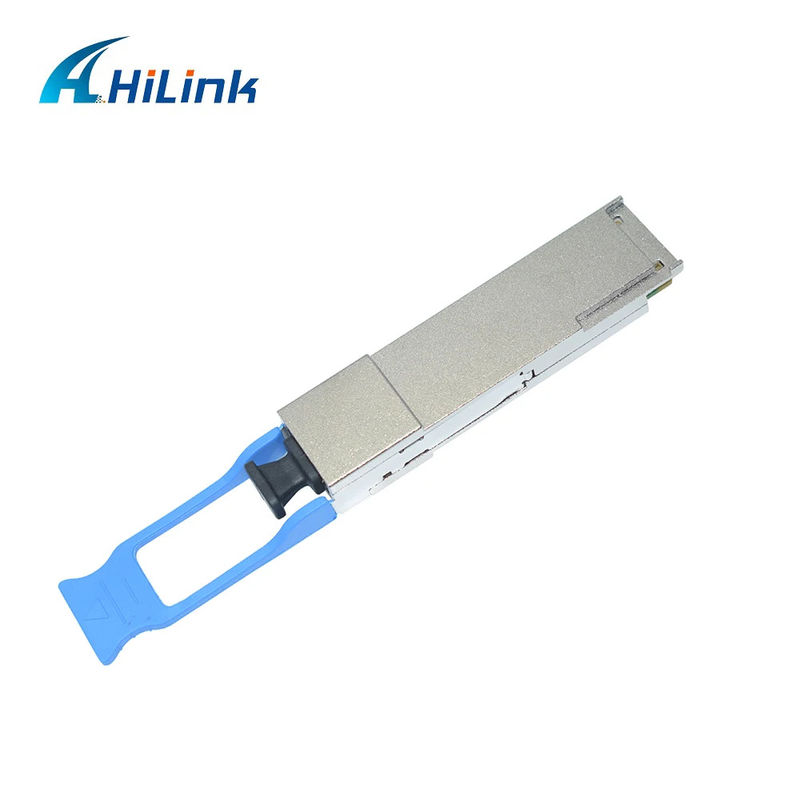

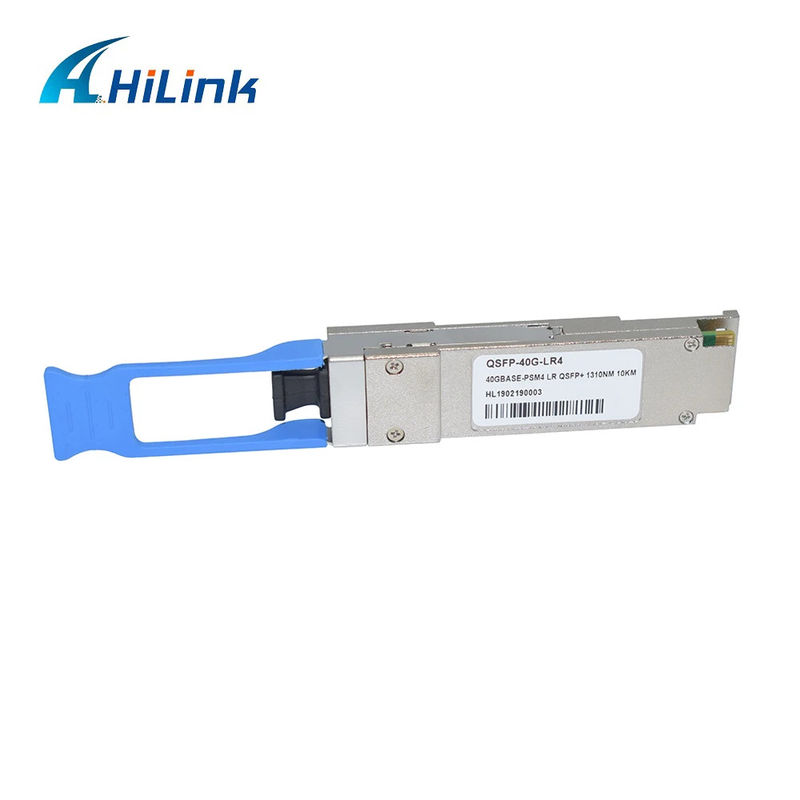

Product Picture Shows:



QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules 0QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules 1QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules 2



QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules 3







QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules 4
