100G ZR QSFP28 DCO 120KM C-Band Tunable Digital Coherent Optics Transceiver DOM LC

Product Description:

       The Coherent HL-QSFP28-DCO QSFP28 Digital Coherent Optics (DCO) transceiver supports 100G transmission over distances up to 120km (dispersion limited, optionally extendable to 300km) for edge network applications. On the host side, the module can accommodate IEEE 100GE Ethernet or ITU-T OTN OTU4 signals. The line side coherent interface specifications are aligned with IEEE Std. 802.3-2022 100GBASE-ZR [8] and ITU-T G.698.2 DW50U-8A2(C)F / DW100U-8A2(C)F [11], which define a 27.95GBd dual-polarization differential QPSK modulation format.

      The module is offered in both commercial temperature (0°C to 70°C) and industrial temperature (-40°C to 85°C) versions, with power dissipation of less than 6.0W. The local oscillator laser is full C-band tunable and the transceiver can optionally be configured to support FlextuneTM automatic wavelength tuning.

      The transceiver module is compliant to the Specification for QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) [1] and specifications referenced therein [2-7]. The transceiver is RoHS compliant and lead-free per Directive 2011/65/EU [19].

Product Features

Digital Coherent Optics module, hot-pluggable QSFP28 form factor

IEEE 100G Ethernet (CAUI-4) or ITU-T 100G OTN (OTL4.4) compliant host interface 100G optical coherent interface with DP-DQPSK modulation and Staircase FEC per IEEE Std. 802.3-2022 100GBASE-ZR or ITU-T G.709.2

Transmission reach:

Up to 80km unamplified (loss limited)

Up to 120km amplified (dispersion limited, optionally extendable to 300km)

Full C-band tunable, 50GHz or 100GHz grid with optional FlextuneTM automatic wavelength tuning

Case temperature range 0°C to 70°C (C-temp) or -40°C to 85°C (I-temp)

Power dissipation < 5.5W (C-temp) or < 6.0W (I-temp)

Remote digital diagnostics monitoring

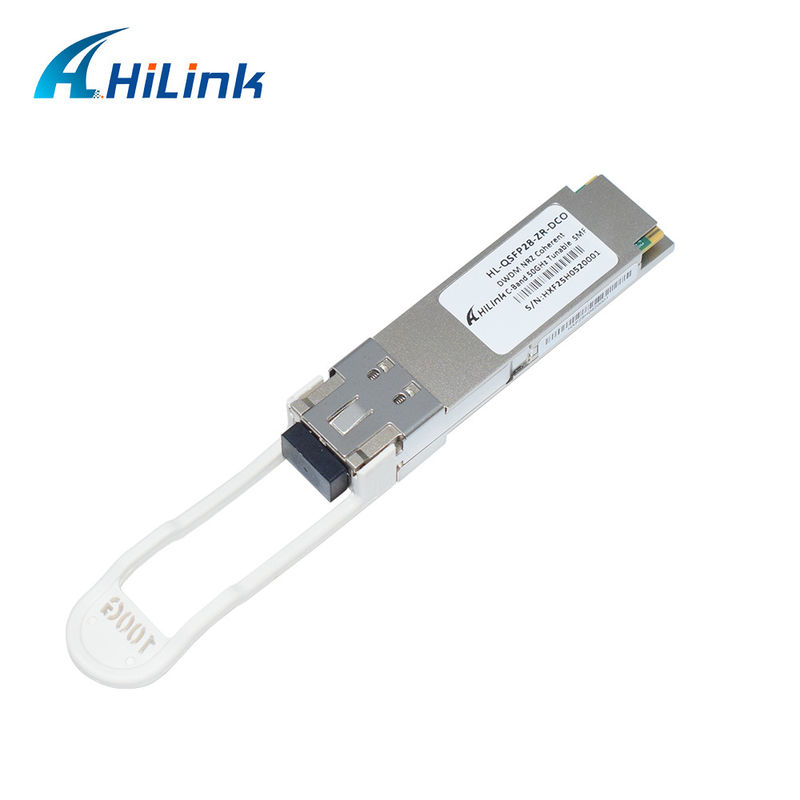

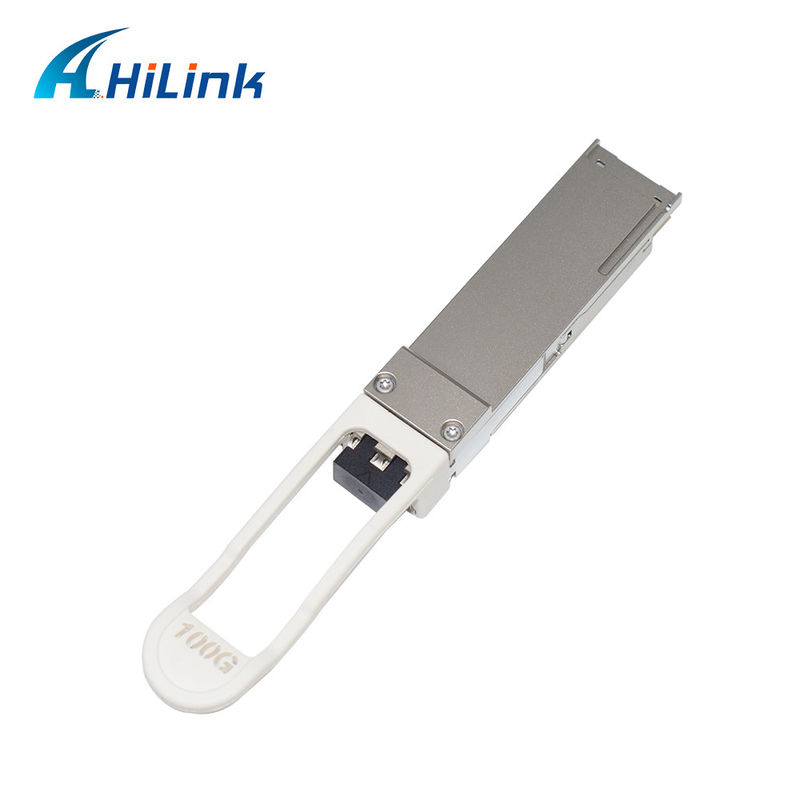

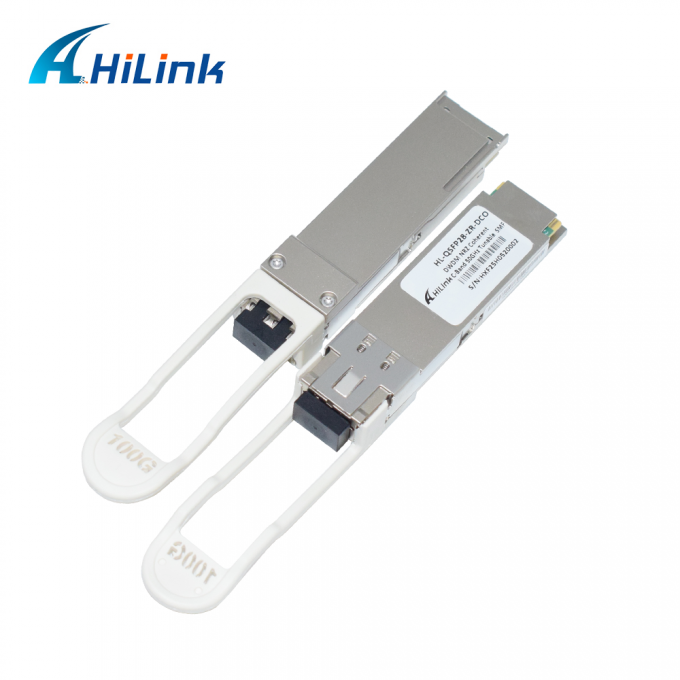

Product Show:
