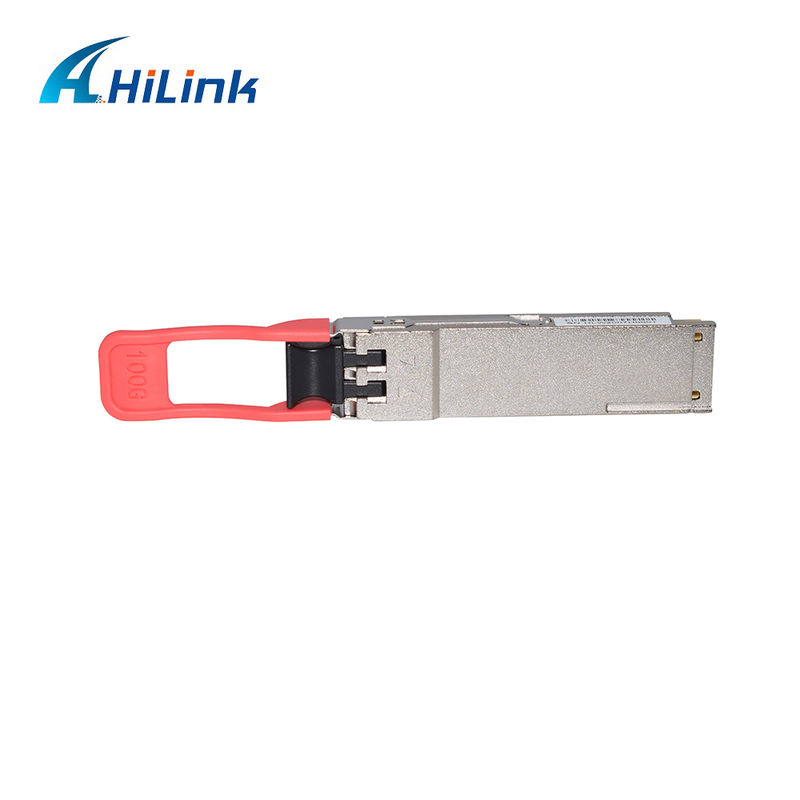

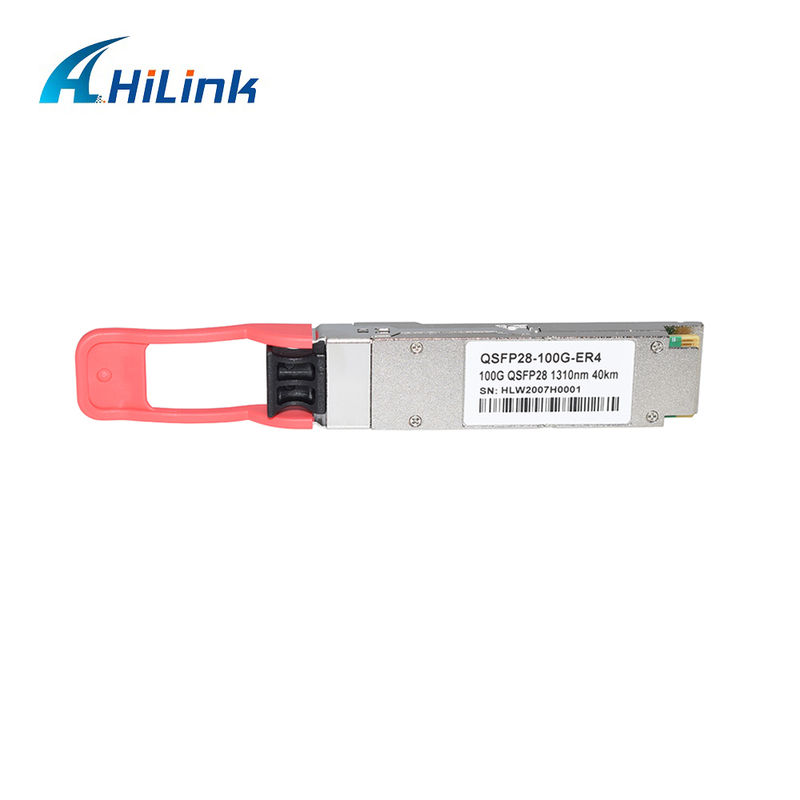

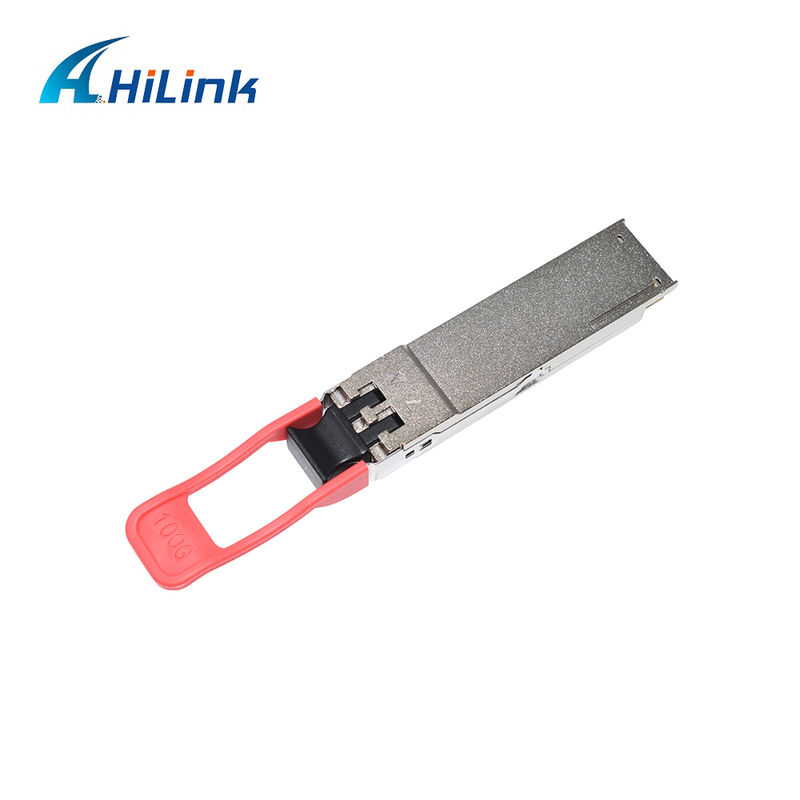

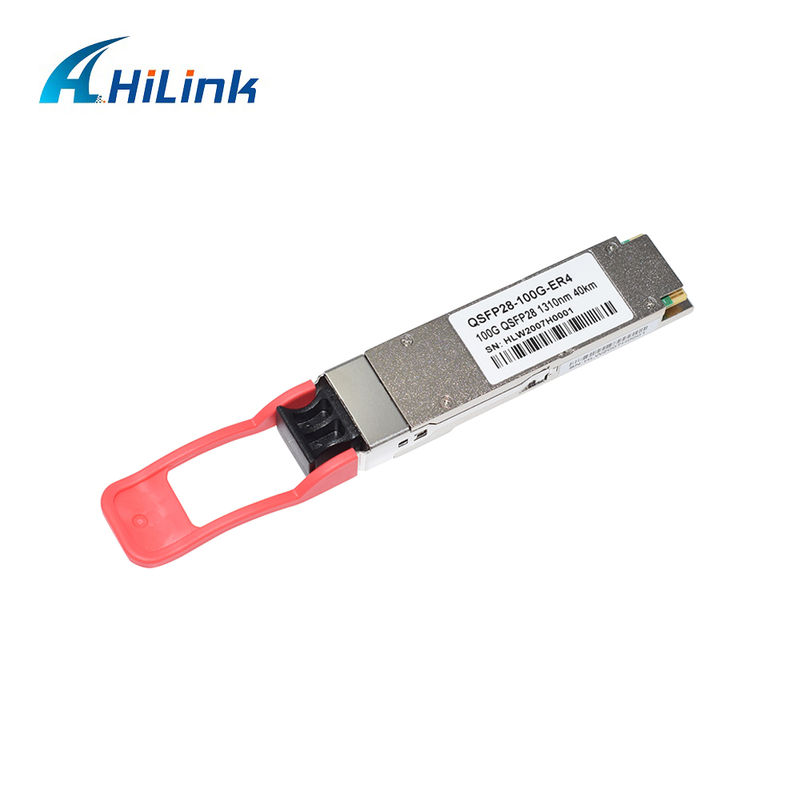

100Gb/s QSFP28 ER4 Optical Transceiver Module 40KM Hot Pluggable Duplex LC LAN WDM APD SMF RoHS-6 compliant

100Gb/s QSFP28 ER4 Optical Transceiver Module 40KM Hot Pluggable Duplex LC LAN WDM APD SMF RoHS-6 compliant

Features

Compliant to Ethernet 100GBASE-ER4

Supports 103.1Gb/s aggregate bit rate

Transmitter: cooled 4x25Gb/s LAN WDM TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

Receiver: 4x25Gb/s APD ROSA

Up to 40km reach for G.652 SMF

Duplex LC optical receptacle

4x25G electrical interface (OIF CEI-28G-VSR)

RoHS-6 compliant and lead-free

Single +3.3V power supply

Maximum power consumption 4.5W

Case operating temperature : Commercial: 0 ~ +70℃  Extended: -10 ~ +80℃ Industrial: -40 ~ +85℃

Applications

100GBASE-ER4 Ethernet Links

Infiniband QDR and DDR interconnects

Client-side 100G Telecom connections

Descriptions

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to Ethernet 100GBASE-ER4 standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 40km links.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

OEM and ODM

OEM/ODM order is available.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
