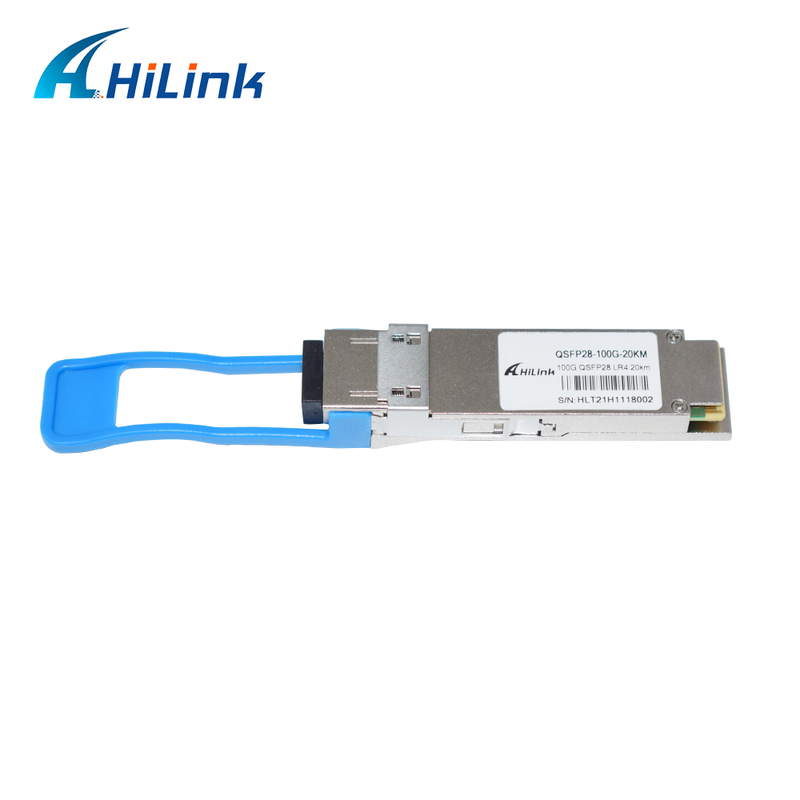

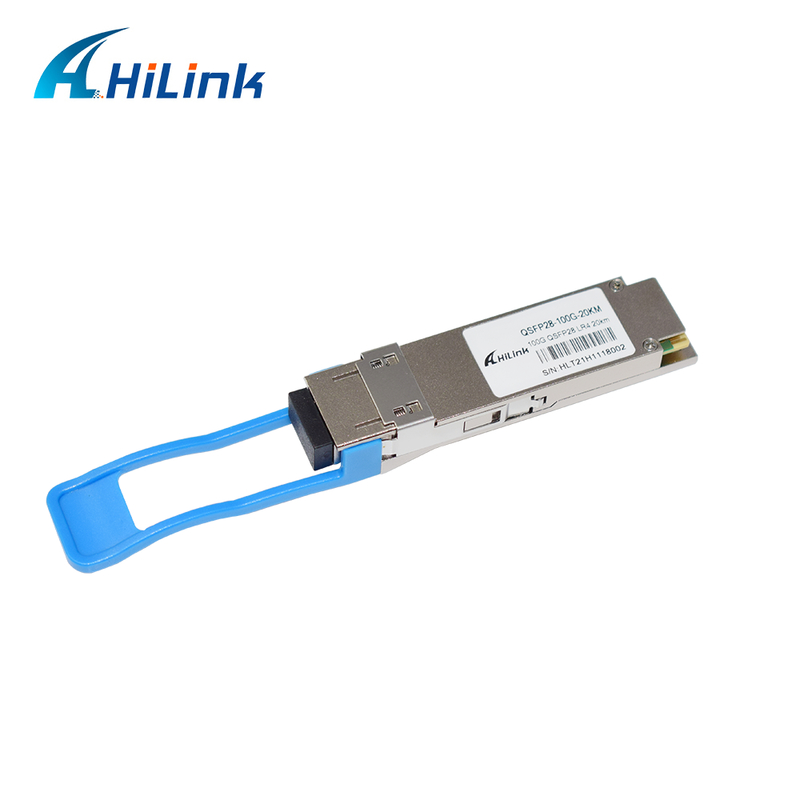

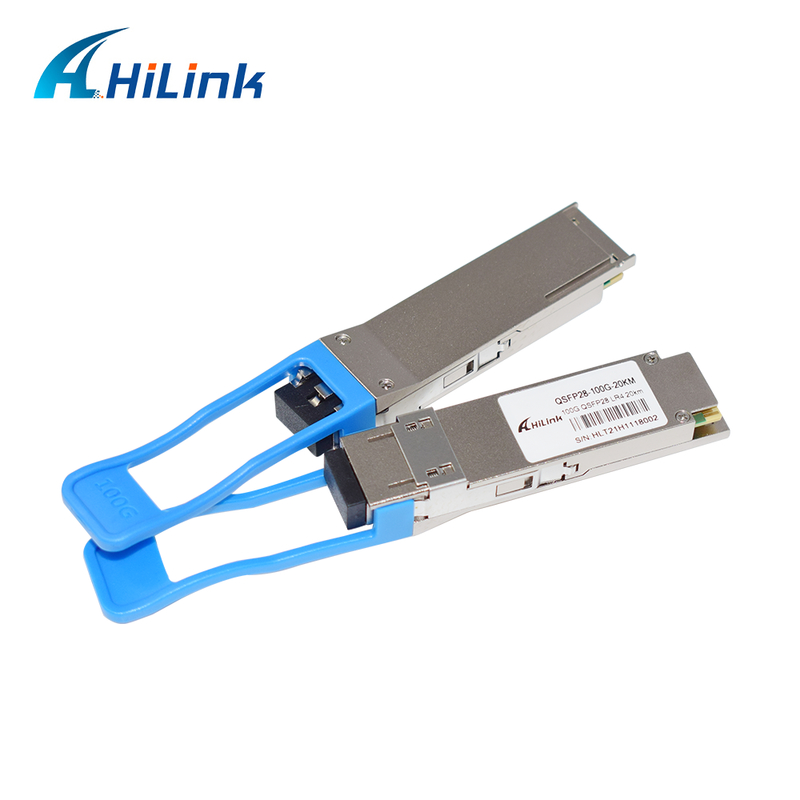

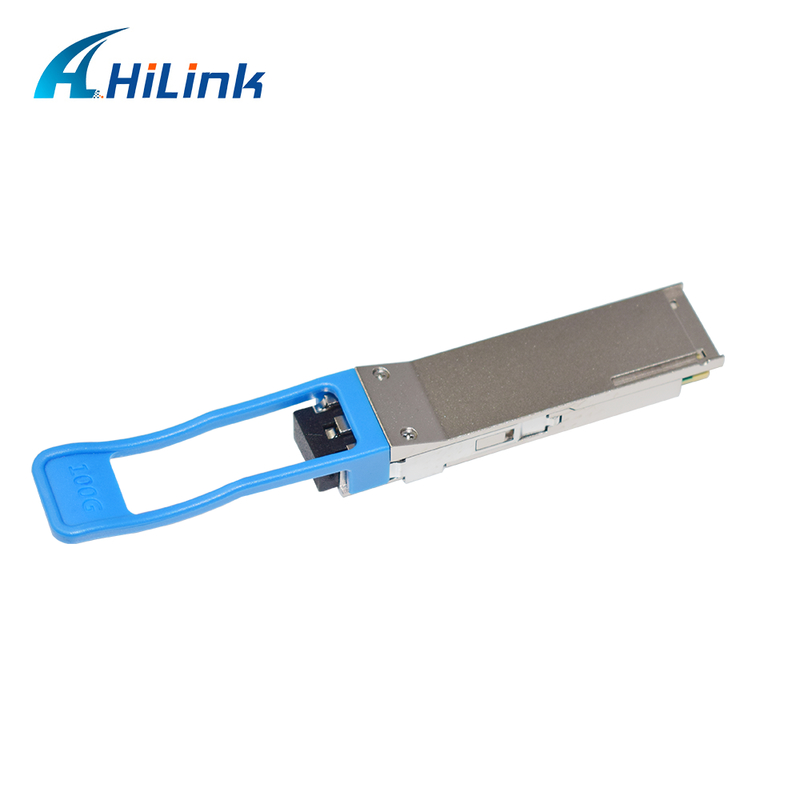

100Gb/s QSFP28 LR4 Optical Transceiver Module 20KM Hot Pluggable Duplex LC Connector Single Mode RoHS Compliant

100Gb/s QSFP28 LR4 Optical Transceiver Module 20KM Hot Pluggable Duplex LC Connector Single mode RoHS Compliant

Features

4 lanes MUX/DEMUX design

Integrated LAN WDM TOSA / ROSA for up to 20 km reach over SMF

Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

Aggregate bandwidth of > 100Gbps

Duplex LC connectors

Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Support FEC(Forward Error Correction)

Applications

Local Area Network (LAN)

Wide Area Network (WAN)

Ethernet switches and router applications

Descriptions

The 100G QSFP28 20KM is a transceiver module designed for 20km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.

The central wavelengths of the 4 lanes are 1296 nm, 1300 nm, 1305 nm and 1309 nm . It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

OEM and ODM

OEM/ODM order is available.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.

FAQ

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use second-hand components.

Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:What devices can your products compatible with?

A:Our products are compatible with Mainstream switches.

Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.

2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.

3>Confirm and ship the goods, then tracking number will be sent to you promptly.

4>We will help to track your goods until you receive them safely.
