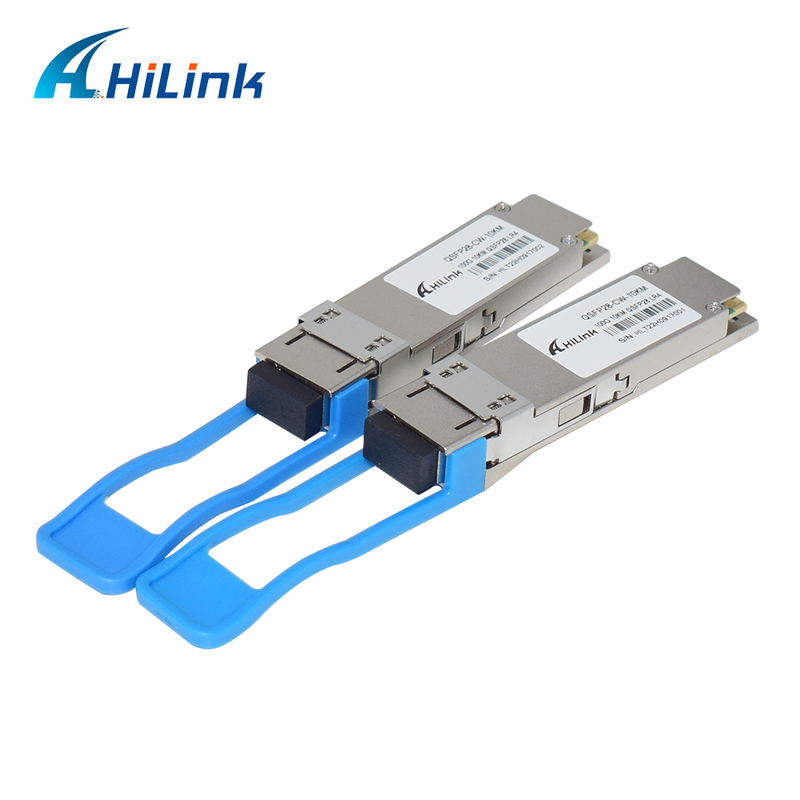

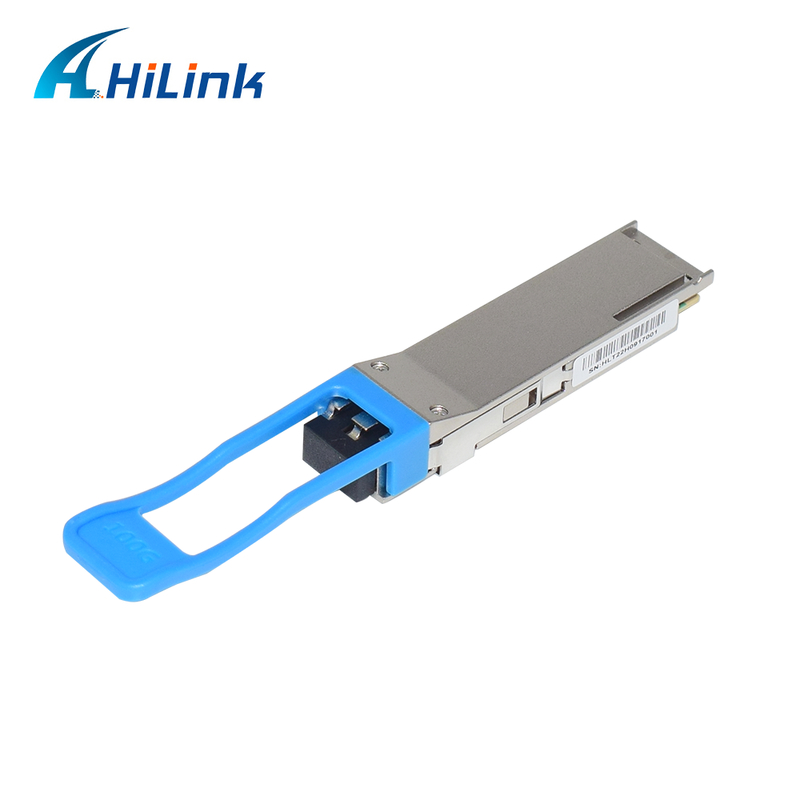

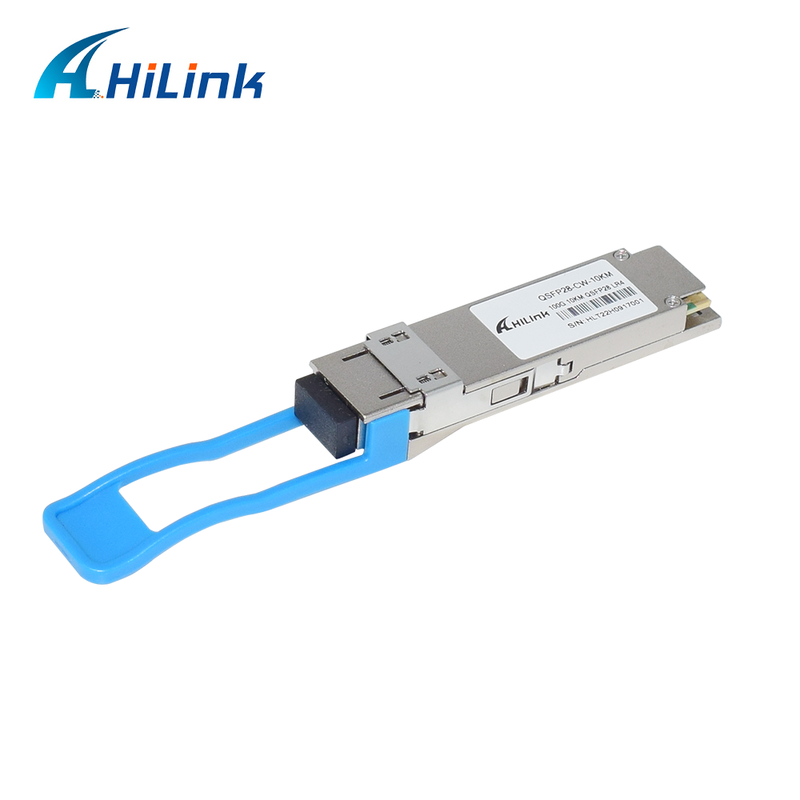

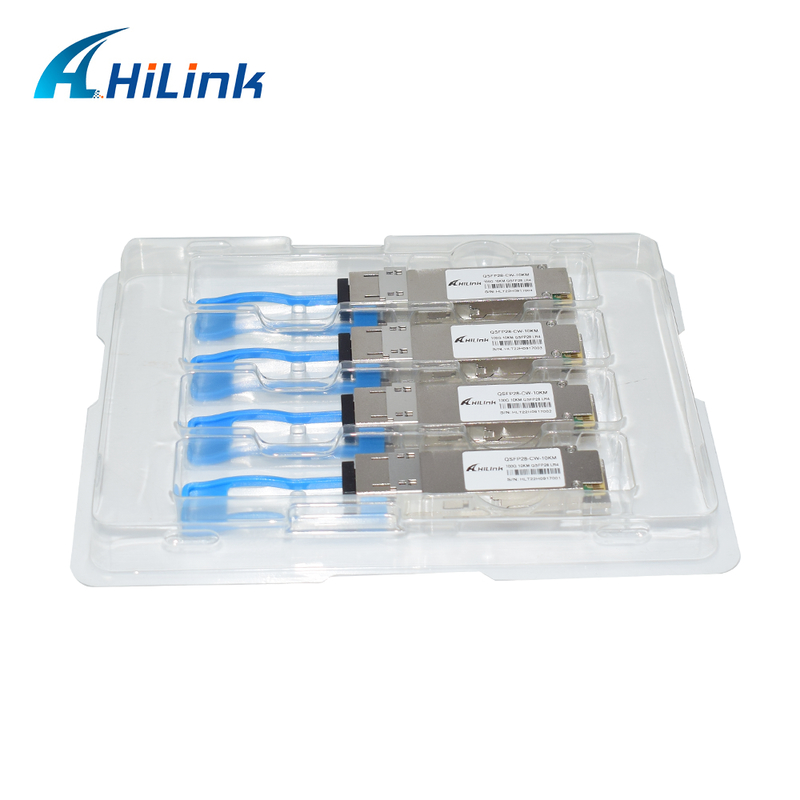

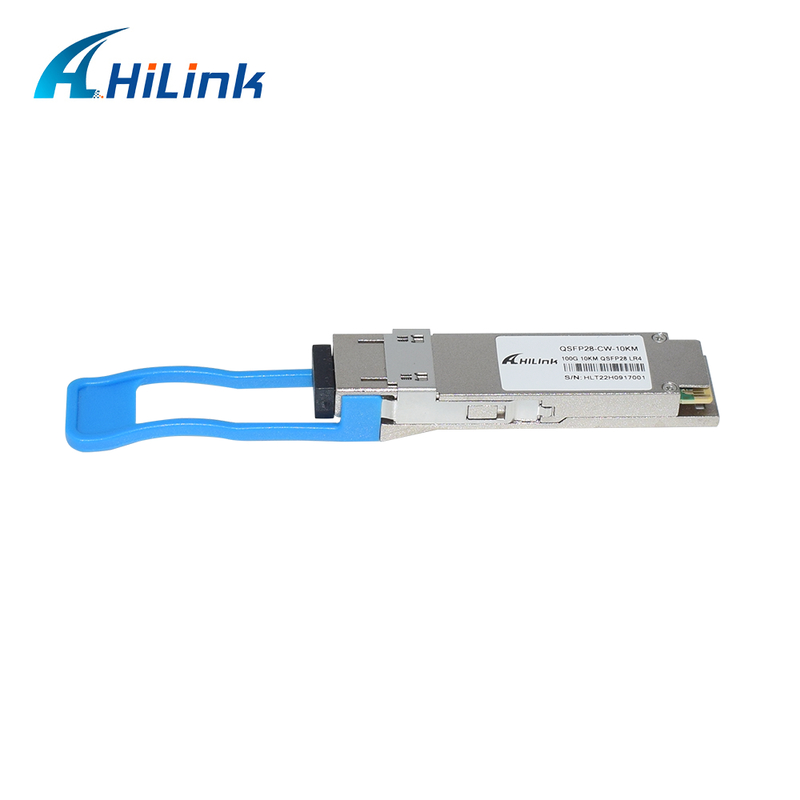

10KM Hot Pluggable 100Gb/s QSFP28 CWDM4 Optical Transceiver Module for LAN WAN Ethernet Switches Router Applications

100Gb/s QSFP28 CWDM4 Optical Transceiver Module 10KM Hot Pluggable Duplex LC Connector Single mode DDM RoHS Compliant for LAN WAN Ethernet switches router applications

Features

4 lanes MUX/DEMUX design

Integrated CWDM TOSA / ROSA for up to 10 km reach over SMF

Support 100GBASE-CWDM4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

Aggregate bandwidth of > 100Gbps

Duplex LC connectors

Compliant  with  IEEE  802.3-2012  Clause  88  standard  IEEE  802.3bm  CAUI-4  chip  to  module

electrical standard ITU-T G.959.1-2012-02 standard

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Applications

Local Area Network (LAN)

Wide Area Network (WAN)

Ethernet switches and router applications

Descriptions

The  HL-QSFP28-CWDM4-10  is  a  transceiver   module  designed  for   10km optical   communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE  802.3bm  CAUI-4  chip  to module  electrical  standard  ITU-T  G.959.1-2012-02  standard.  The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the  receiver  side, the  module  optically  de-multiplexes  a  100Gb/s  input  into  4  lanes signals,  and converts them to 4 lanes output electrical data.
    The central wavelengths of the 4 lanes are 1270 nm, 1290 nm, 1310 nm and 1330 nm . It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
    The  product  is  designed  with  form  factor,  optical/electrical  connection  and digital  diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
    The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information.  Individual channels can be addressed and unused channels can  be shut down for maximum design flexibility.
    The  HL-QSFP28-CWDM4-10  is  designed  with  form  factor,  optical/electrical connection  and  digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to  meet  the   harshest  external operating   conditions  including  temperature,   humidity  and  EMI interference. The  module  offers  very  high functionality  and feature integration,  accessible  via  a two-wire serial interface.

OEM and ODM

OEM/ODM order is available.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
