40Gb/s QSFP+ 100km Optical Transceiver Hot Pluggable C Band EML APD Duplex LC Connector Single mode DDM RoHS Compliant for 40G Ethernet

• 4 lanes MUX/DEMUX design
• Integrated DWDM TOSA / ROSA for up to 100 km reach over SMF
• C Band EML transmitter, APD photo-detector
• Duplex LC connector
• Up to 11.2Gbps per channel bandwidth
• Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-EZR4
• Single +3.3V power supply operating
• Built-in digital diagnostic functions
• Temperature range 0°C to 70°C
• Compliant with QDR/DDR Infiniband data rates
• QSFP MSA compliant
• RoHS Compliant Part

• Rack to rack
• Data centers Switches and Routers
• Metro networks
• Switches and Routers
• 40G BASE-EZR4

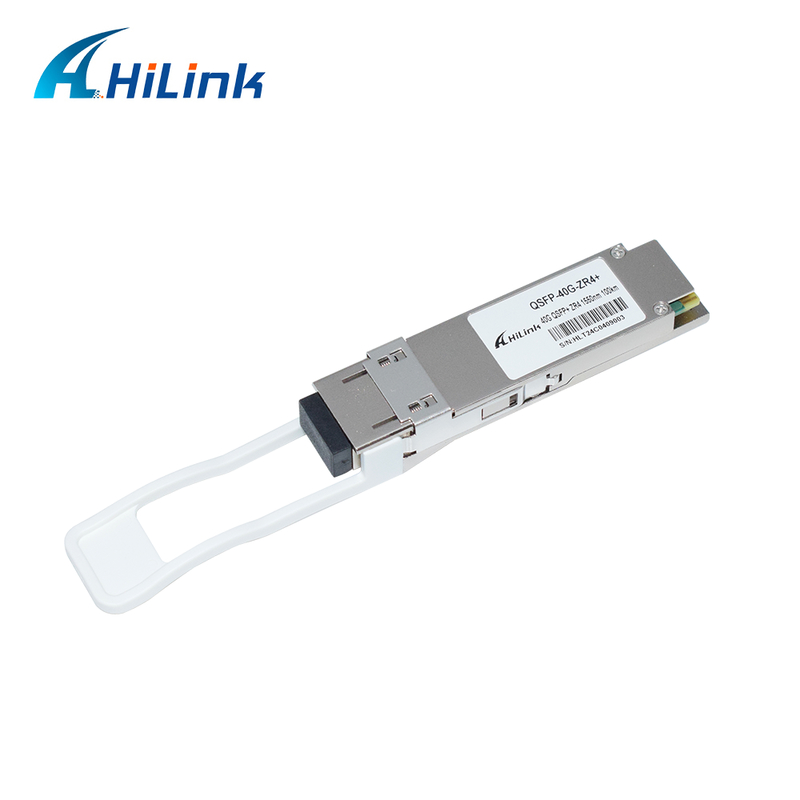

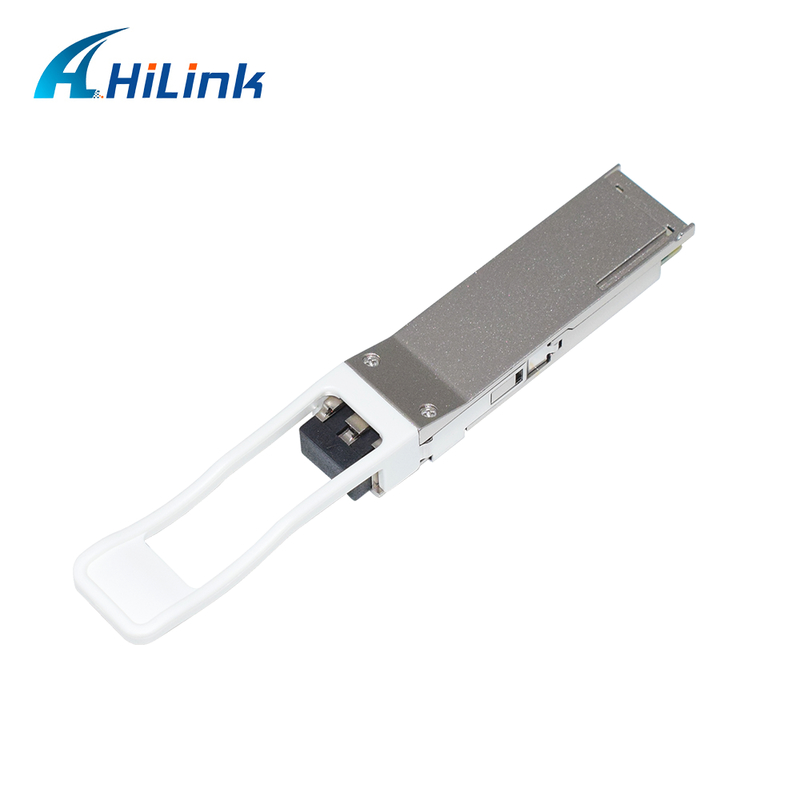

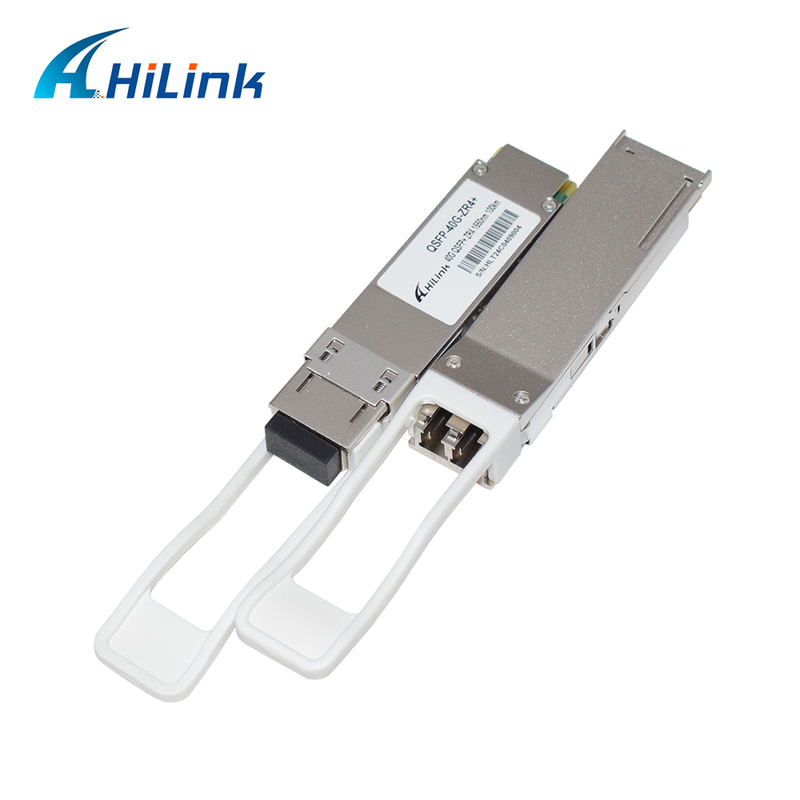

The HL-QSFP-40G-ZR4 is a transceiver module designed for 100km optical communication applications. The design is compliant to 40GBASE-EZR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels of 10Gb/s electrical data to 4 DWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 DWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 DWDM channels as members of the DWDM wavelength. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

OEM and ODM: OEM/ODM order is available.

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.

International Express: DHL, FedEx, EMS, TNT, UPS and so on. It takes 3-7 days.
