40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver

40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver

40G QSFP+ transceiver 80km LC

single mode QSFP+ optical transceiver

duplex LC QSFP+ transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFP-40G-ZR4

Contact Us
Request A Quote
40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver
Product Details
Products Name:
40G QSFP+ 80Km
Connetor:
Duplex LC
Data Rate:
40G
Distance:
80KM
Temperature Range:
0℃ ~ +70℃
Certification:
RoHS Compliant
Type:
Fiber Optic Transceivers, 40G QSFP+
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
EXW: 1085~1250USD/PCS
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Delivery Time
5-8workingdays
Payment Terms
Western Union,T/T,L/C
Supply Ability
100pcs/month
RELATED PRODUCTS
Good price 40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver online

40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver

Get Best Price
Good price 100Gb/s QSFP28 LR4 Optical Transceiver Module 20KM Hot Pluggable Duplex LC Connector Single Mode RoHS Compliant online

100Gb/s QSFP28 LR4 Optical Transceiver Module 20KM Hot Pluggable Duplex LC Connector Single Mode RoHS Compliant

Get Best Price
Good price 800G DR8+ 1310nm 2km OSFP Optical Module OSFP112 Dual MPO-12 connector for Data Center online Video

800G DR8+ 1310nm 2km OSFP Optical Module OSFP112 Dual MPO-12 connector for Data Center

Get Best Price
Good price QSFP200G QSFP56 200G SR4 Hot Pluggable Optical Transceiver 70m@OM3 100m@OM4 FEC Single MPO12 Multimode Fiber RoHS complaint High Speed for 200GBASE-SR4 Ethernet links Data centers online

QSFP200G QSFP56 200G SR4 Hot Pluggable Optical Transceiver 70m@OM3 100m@OM4 FEC Single MPO12 Multimode Fiber RoHS complaint High Speed for 200GBASE-SR4 Ethernet links Data centers

Get Best Price
Contact Us
86-755-8317-6243
Contact Now
Product Description

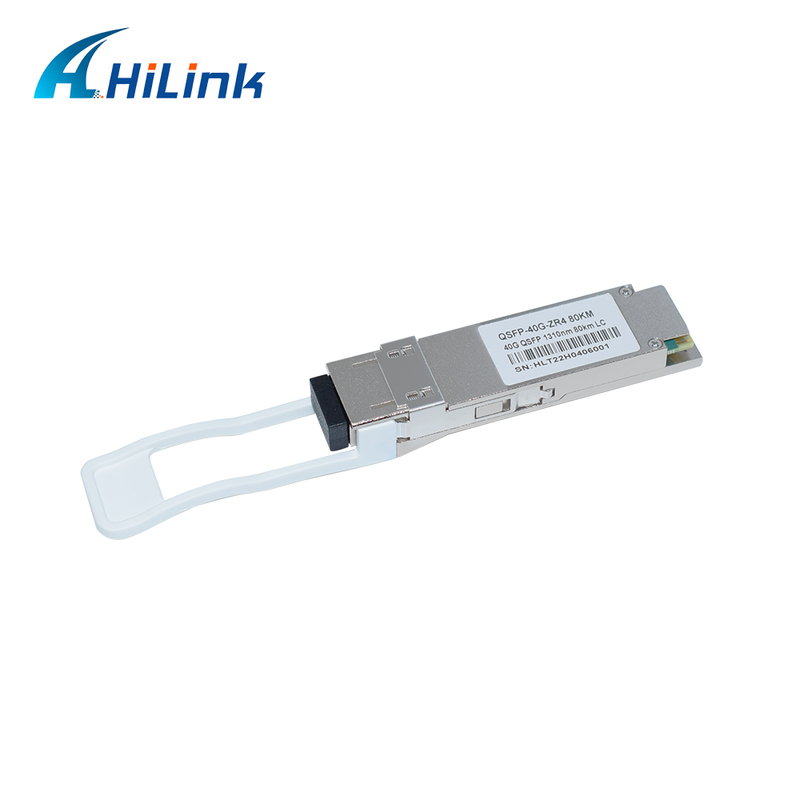

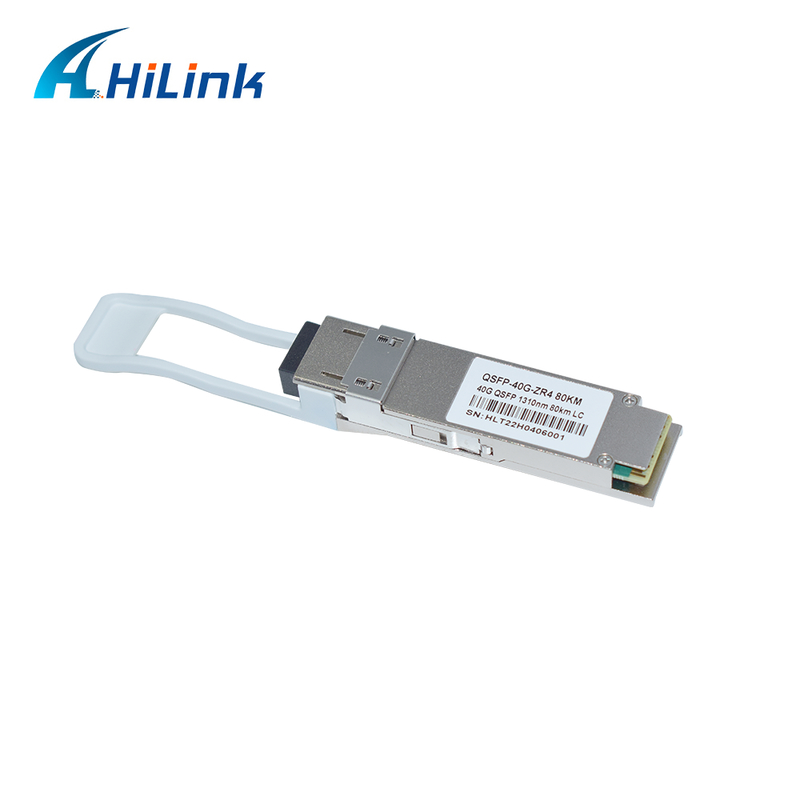

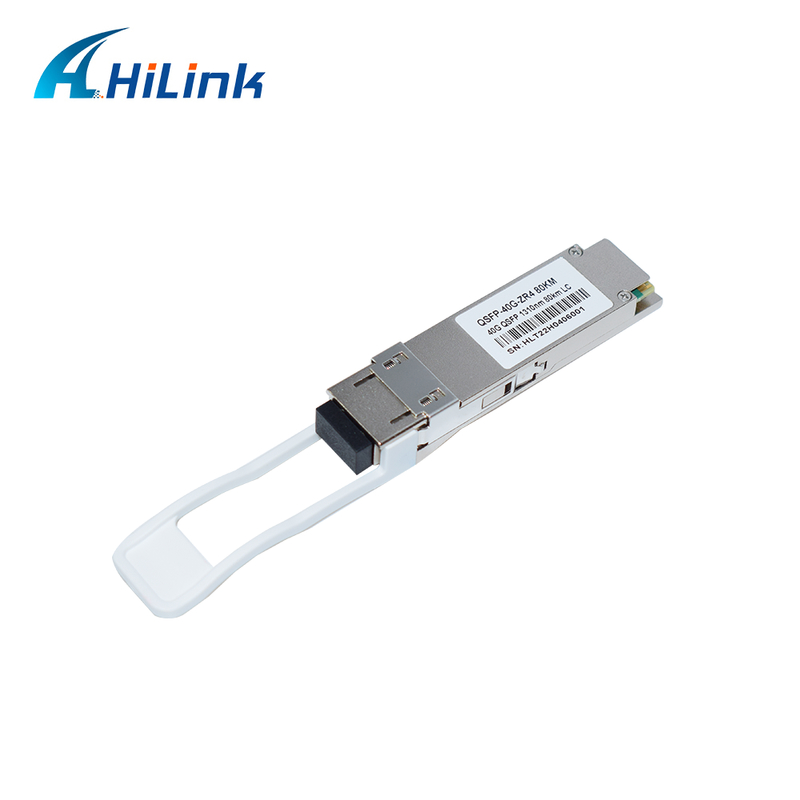

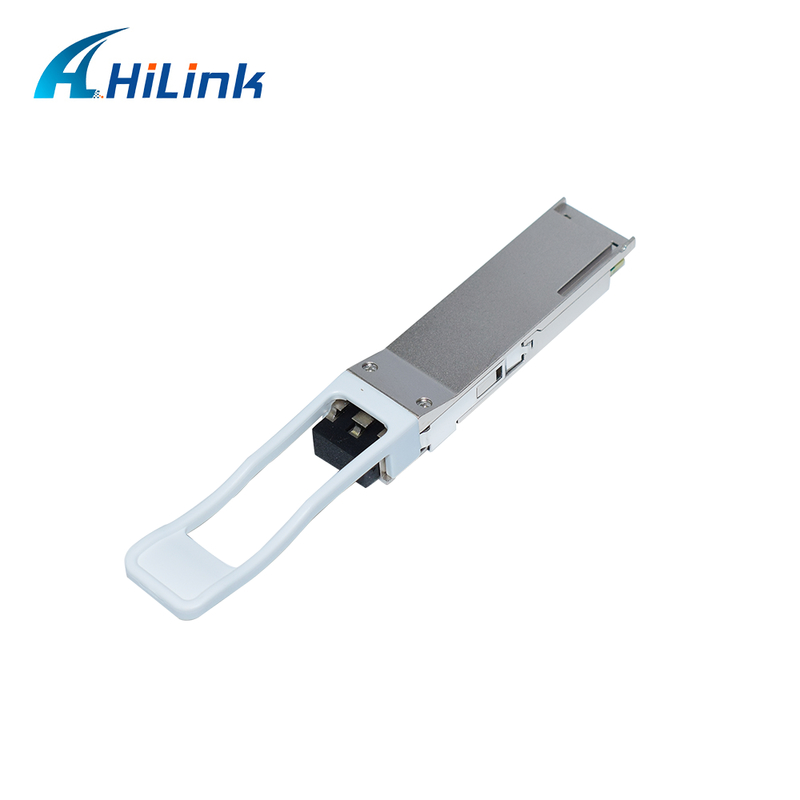

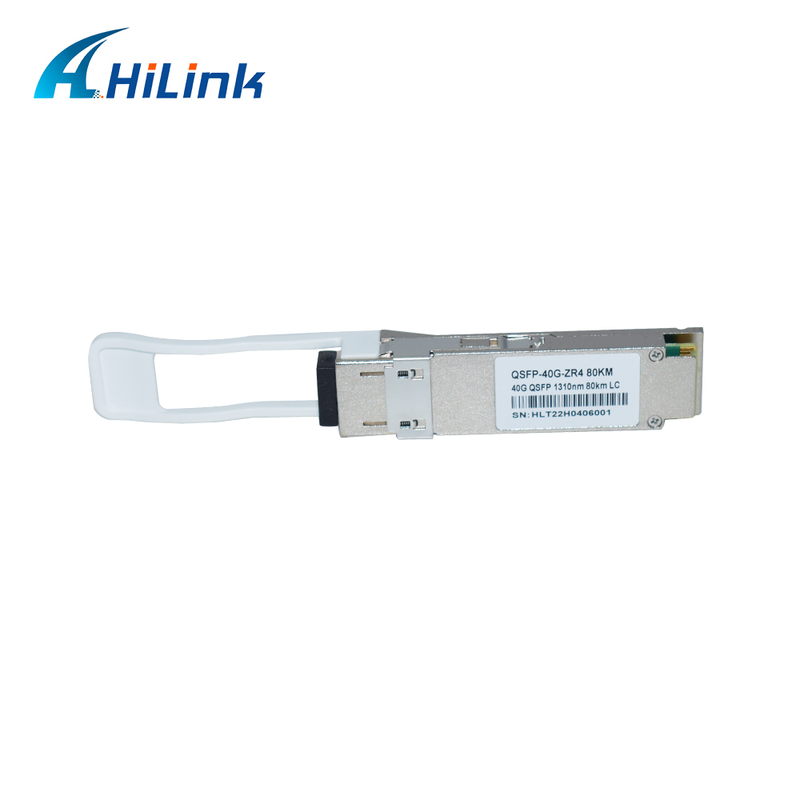

40G QSFP+ 80km Compatible Optical Transceiver Module
Hot Pluggable Duplex LC Single Mode
The HL-QSFP-40G-ZR4 is a high-performance transceiver module designed for 80km optical communication applications. Compliant with 40GBASE-ZR4 of the IEEE P802.3ba standard, this module converts 4 input channels of 10Gb/s electrical data to 4 DWDM optical signals for 40Gb/s optical transmission.
Key Features
  • 4 lanes MUX/DEMUX design with 100GHz ITU Grid
  • C Band DWDM EML transmitter with APD photo-detector
  • Up to 11.2Gbps per channel bandwidth (40Gbps aggregate)
  • Duplex LC connector for reliable connectivity
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4
  • QSFP MSA compliant design
  • Extended reach up to 80 km transmission
  • Supports QDR/DDR Infiniband data rates
  • Single +3.3V power supply operation
  • Built-in digital diagnostic monitoring
  • Operating temperature range: 0°C to 70°C
  • RoHS compliant construction
Applications
  • Rack-to-rack connections in data centers
  • Switches and routers infrastructure
  • Metro network deployments
  • 40G BASE-ZR4 implementations
40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 0 40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 1 40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 2
Quality Assurance
We guarantee all optical transceivers are brand new with new components, never using refurbished materials. Each unit undergoes rigorous functional and aging tests. We provide a comprehensive 3-year warranty from shipment date.
Product Support
We offer complete OEM/ODM services and supply a full range of compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, and DWDM solutions compatible with major brands.
40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 3 40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 4
Shipping & Delivery
We ship worldwide via DHL, FedEx, EMS, TNT, and UPS with typical delivery in 3-7 business days.
40G QSFP+ 80km Duplex LC Single Mode Optical Transceiver 5
