Name: 40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-ER4
Price: 122.00 USD
Availability: InStock

Home > Products > QSFP+ Transceiver >

40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

40G QSFP+ transceiver with LC connector

QSFP+ transceiver 40Km reach

40G transceiver with duplex LC

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFP-40G-ER4

Request A Quote

40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Product Details

Products Name:

40G QSFP+ 40Km

Connetor:

Duplex LC

Data Rate:

40G

Distance:

40KM

Temperature Range:

0℃ ~ +70℃

Certification:

RoHS Compliant

Type:

Fiber Optic Transceivers, 40G QSFP+

Digital Diagnostic Functions:

Built-in

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

EXW: 115~130USD/PCS

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

5-8workingdays

Payment Terms

Western Union,T/T,L/C

Supply Ability

100pcs/month

MTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150m

Get Best Price

40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Get Best Price

HILINK 10G SFP+ to SFP+ Fiber Converter 300M-80KM 3R Repeater

Get Best Price

40Gb/s QSFP+ 100km Optical Transceiver Hot Pluggable C Band EML APD Duplex LC Connector Single mode DDM RoHS Compliant for 40G Ethernet

Get Best Price

86-755-8317-6243

Contact Now

Product Description

40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Features

4 CWDM lanes MUX/DEMUX design

Up to 11.2Gbps per channel bandwidth

Aggregate bandwidth of > 40Gbps

Duplex LC connector

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard

QSFP MSA compliant

APD photo-detector

Up to 40 km transmission

Compliant with QDR/DDR Infiniband data rates

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Applications

Rack to rack

Data centers Switches and Routers

Metro networks

Switches and Routers

40G BASE-ER4 Ethernet Links

Product Description

HL-QSFP-40G-ER4 is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

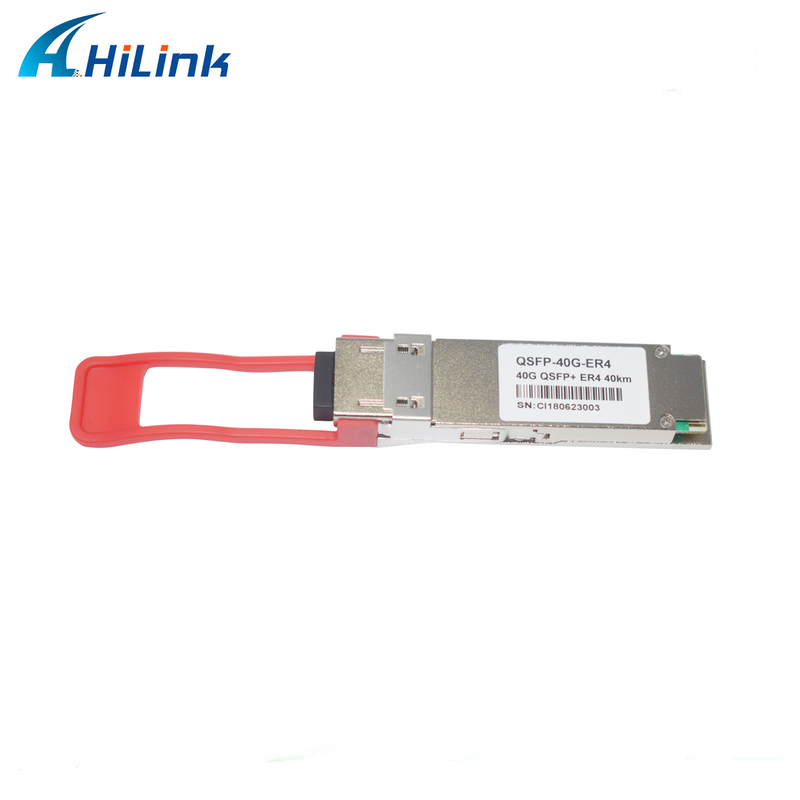

40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 0

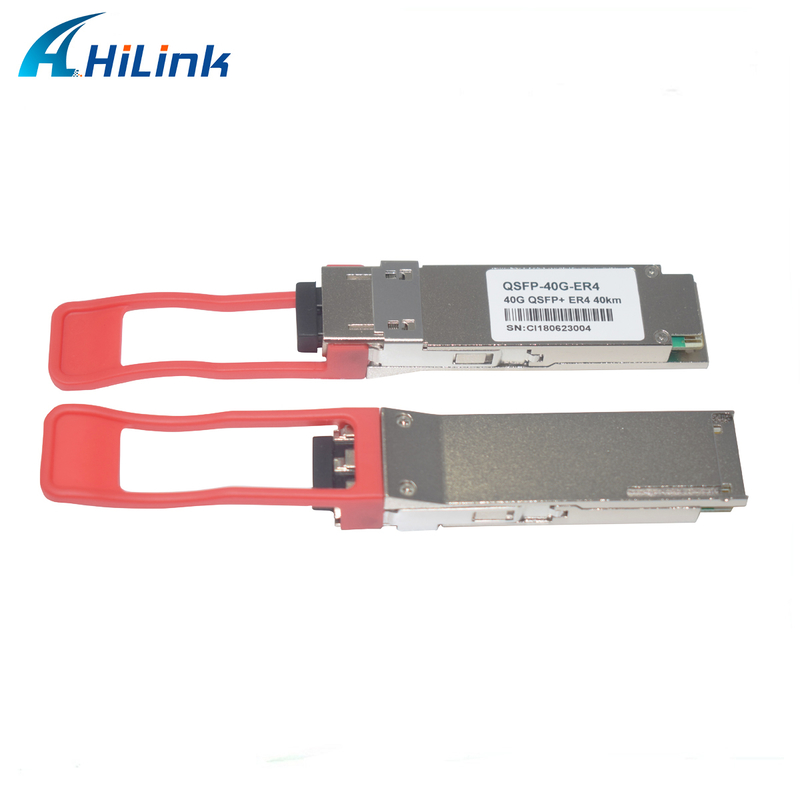

40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 1

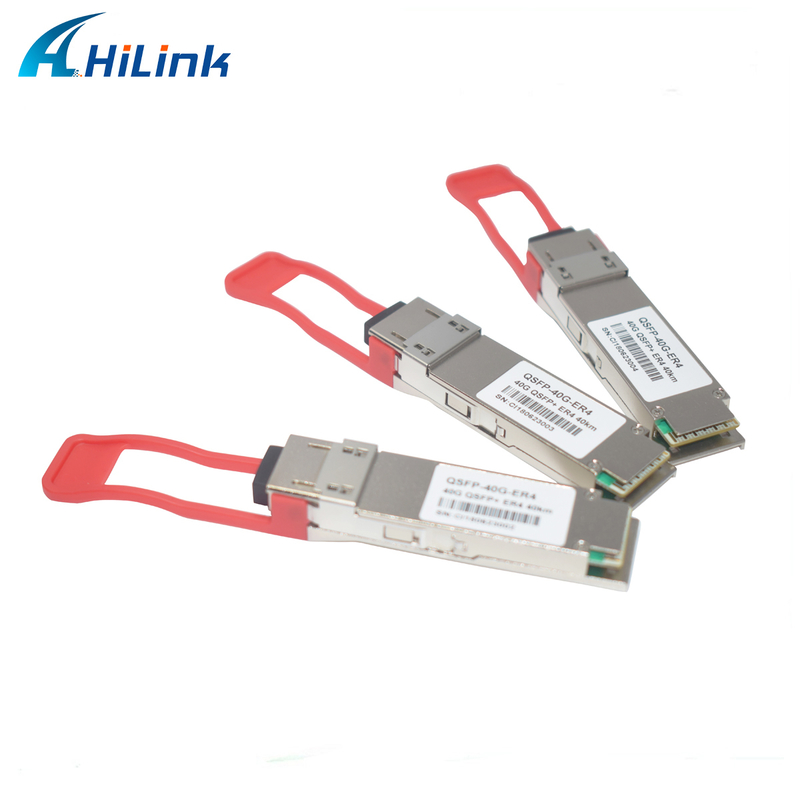

40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 2

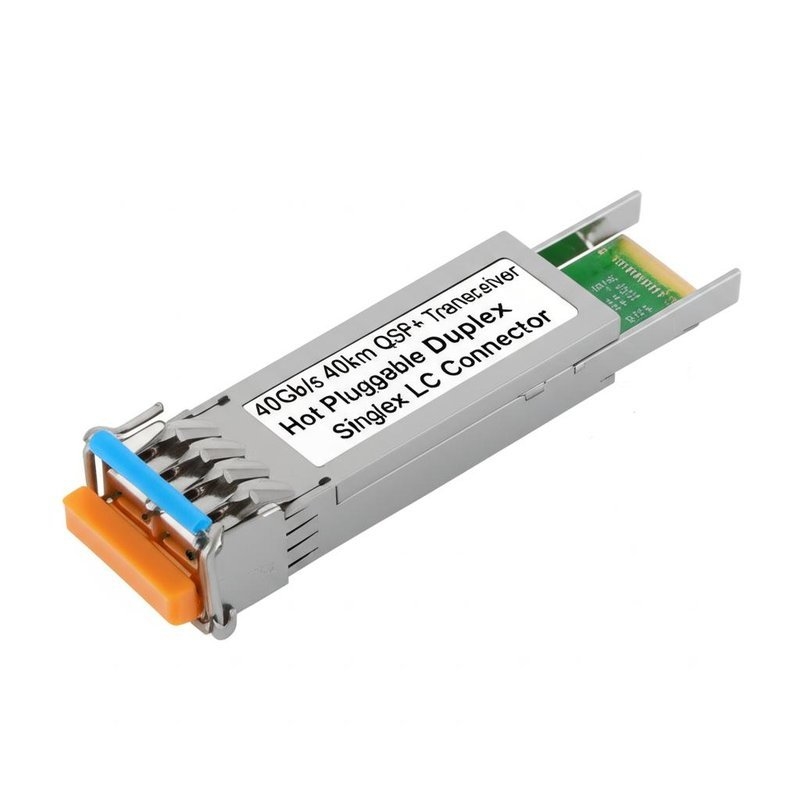

40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode 3

Our Service

OEM and ODM

OEM/ODM order is available.

Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
