1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission

1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission

1.06 Gb/s Fibre Channel BIDI SFP Module

DFB Laser BIDI SFP Module

APD Receiver BIDI SFP Module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFPGE-BXD/U-120

Contact Us
Request A Quote
1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission
Product Details
Products Name:
1.25G BIDI SFP 120km
Connetor:
Single LC
Data Rate:
1.25G
Distance:
120KM
Wavelength:
1550nm/1490nm
Temperature Range:
0℃ ~ +70℃
Certification:
RoHS Compliant
Fiber Type:
SMF
Payment & Shipping Terms
Minimum Order Quantity
1PAIR
Price
EXW: 38~43USD/PAIR
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Delivery Time
5-8workingdays
Payment Terms
Western Union,T/T,L/C
Supply Ability
100pcs/month
RELATED PRODUCTS
Good price 1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission online

1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission

Get Best Price
Good price 1.25G BIDI SFP Transceiver 20KM with Low Power Dissipation and Single SC Connector for Gigabit Ethernet online

1.25G BIDI SFP Transceiver 20KM with Low Power Dissipation and Single SC Connector for Gigabit Ethernet

Get Best Price
Good price 1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance online

1.25G SFP 2km Transceiver 1000Base-SX 1310nm Duplex LC for MMF with RoHS Compliance

Get Best Price
Good price 25Gb/s 40Km SFP28 BIDI Transceivers LC Single Connector Hot Pluggable Fully RoHS Compliant online

25Gb/s 40Km SFP28 BIDI Transceivers LC Single Connector Hot Pluggable Fully RoHS Compliant

Get Best Price
Contact Us
86-755-8317-6243
Contact Now
Product Description

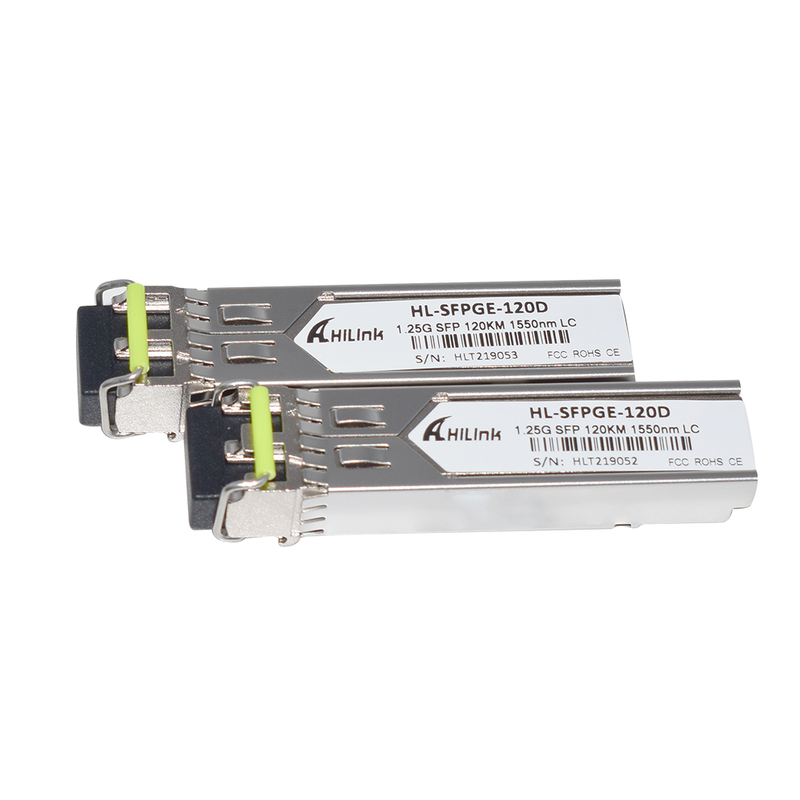

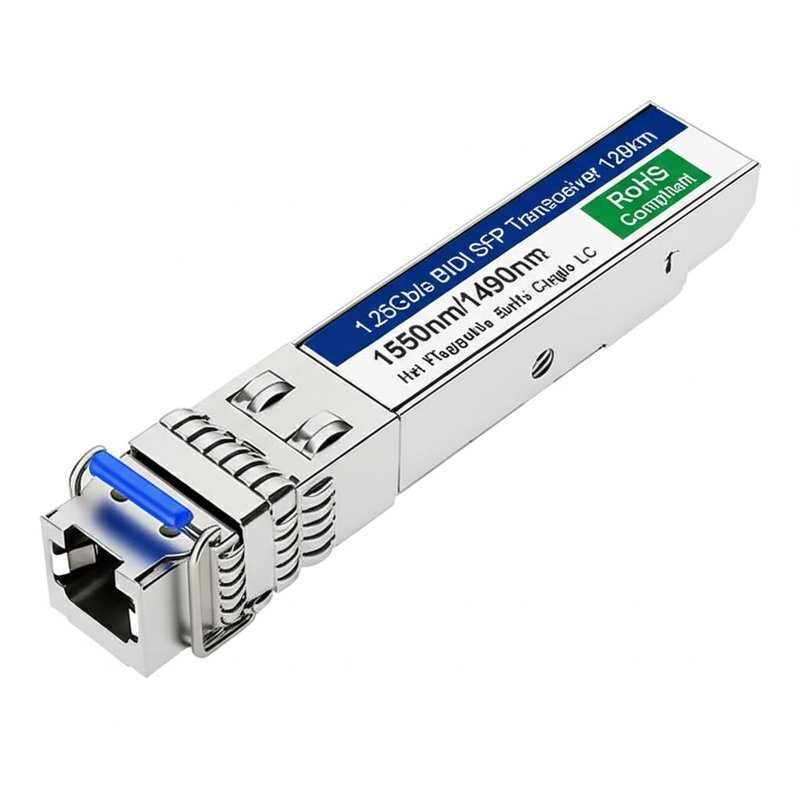

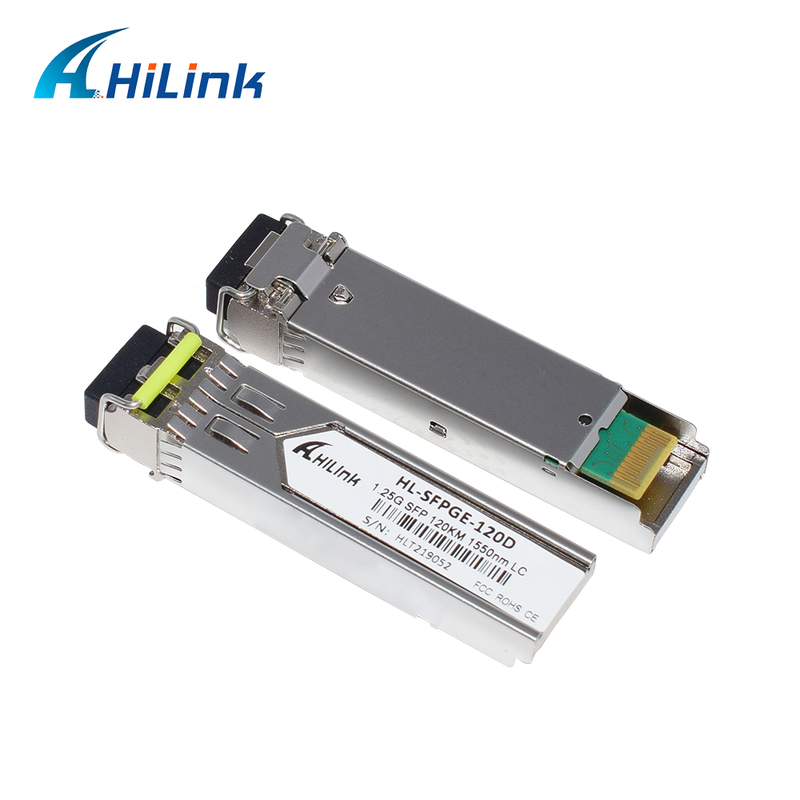

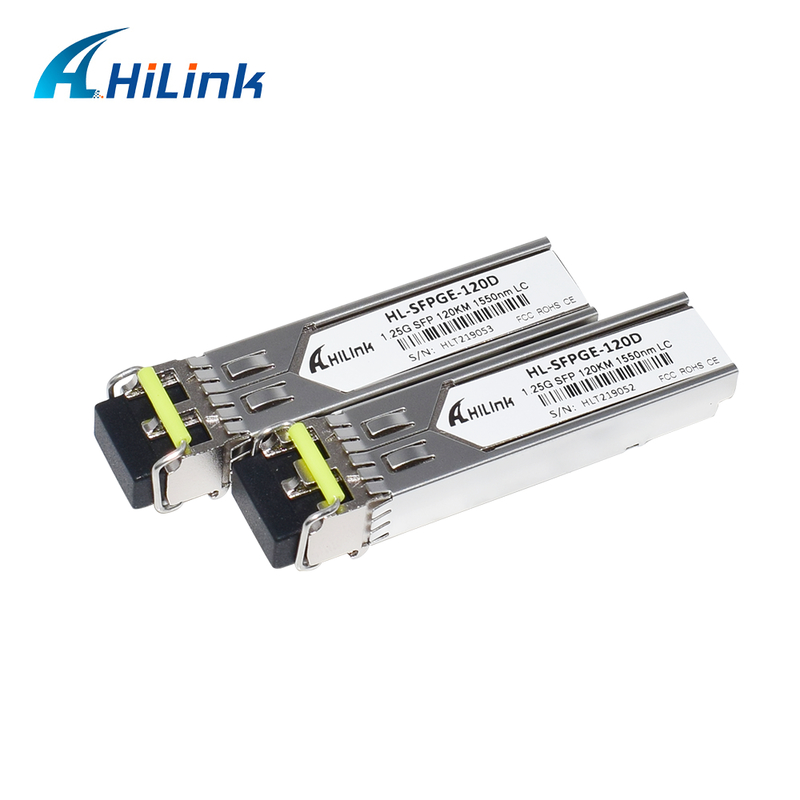

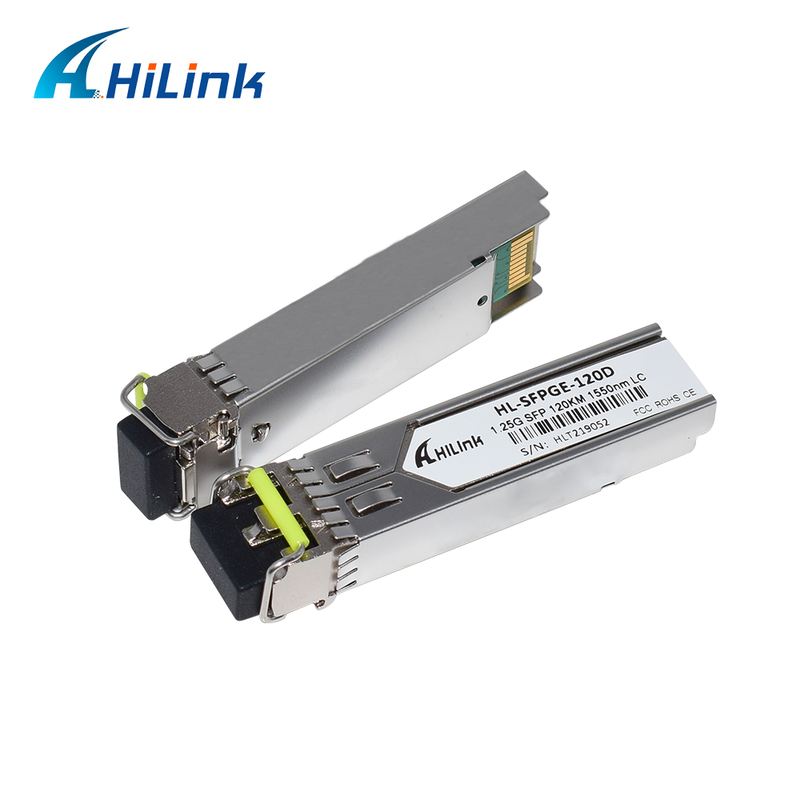

1.25Gb/s BIDI SFP Transceiver 120km 1550nm/1490nm Hot Pluggable Single LC RoHS Compliant
Product Description

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are RoHS compliant and lead-free.

Key Features
  • Single LC receptacle optical interface compliant
  • Hot-pluggable SFP footprint
  • DFB laser transmitter
  • APD Receiver
  • RoHS compliant and Lead Free
  • Up to 120km on 9/125um SMF
  • Metal enclosure for lower EMI
  • Single 3.3V power supply
  • Low power dissipation <700mW
  • Commercial operating temperature range: 0°C to 70°C
Applications
  • Gigabit Ethernet
  • 1.06 Gb/s Fibre Channel
1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 0 1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 1 1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 2
Our Service
OEM and ODM

OEM/ODM order is available.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What We Supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with most brands. For more details, please contact us.

Company Information
1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 3 1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 4
Packaging & Shipping

International Express: DHL, FedEx, EMS, TNT, UPS and so on. It takes 3-7 days.

1.06 Gb/s Fibre Channel BIDI SFP Module with DFB Laser and APD Receiver for High-Speed Data Transmission 5
