Name: 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-LR4
Price: 1,130.00 USD
Availability: InStock

Home > Products > QSFP+ Transceiver >

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

4 CWDM lanes MUX/DEMUX design QSFP+ Transceiver

10km 40G QSFP+ LR4

Compliant with 40G Ethernet IEEE802.3ba Fiber Optic Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFP-40G-LR4

Request A Quote

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

Product Details

Products Name:

40G QSFP+ 10Km

Connetor:

Duplex LC

Data Rate:

40G

Distance:

10KM

Temperature Range:

0℃ ~ +70℃

Certification:

RoHS Compliant

Type:

Fiber Optic Transceivers, 40G QSFP+

Digital Diagnostic Functions:

Built-in

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

EXW: 1084~1176USD/PCS

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

5-8workingdays

Payment Terms

Western Union,T/T,L/C

Supply Ability

100pcs/month

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

Get Best Price

40Gb/s 20km QSFP+ Optical Transceiver Hot Pluggable with Duplex LC Connector and DDM for 0°C to 70°C Operation

Get Best Price

Video

MTP MPO MMF SFP Optical Transceiver DDM DOM QSFP+ 850nm 150m

Get Best Price

40Gb/s 40km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Get Best Price

86-755-8317-6243

Contact Now

Product Description

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

Product Description

The HL-QSFP-40G-LR4 is a high-performance transceiver module designed for 10km optical communication applications. Compliant with 40GBASE-LR4 of the IEEE P802.3ba standard, this module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals, multiplexing them into a single channel for 40Gb/s optical transmission. On the receiver side, it optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.

Key Features

4 CWDM lanes MUX/DEMUX design
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
QSFP MSA compliant
Up to 10km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Operating temperature range: 0°C to 70°C
RoHS Compliant

Applications

Rack to rack connections
Data center switches and routers
Metro networks
40G BASE-LR4 Ethernet links

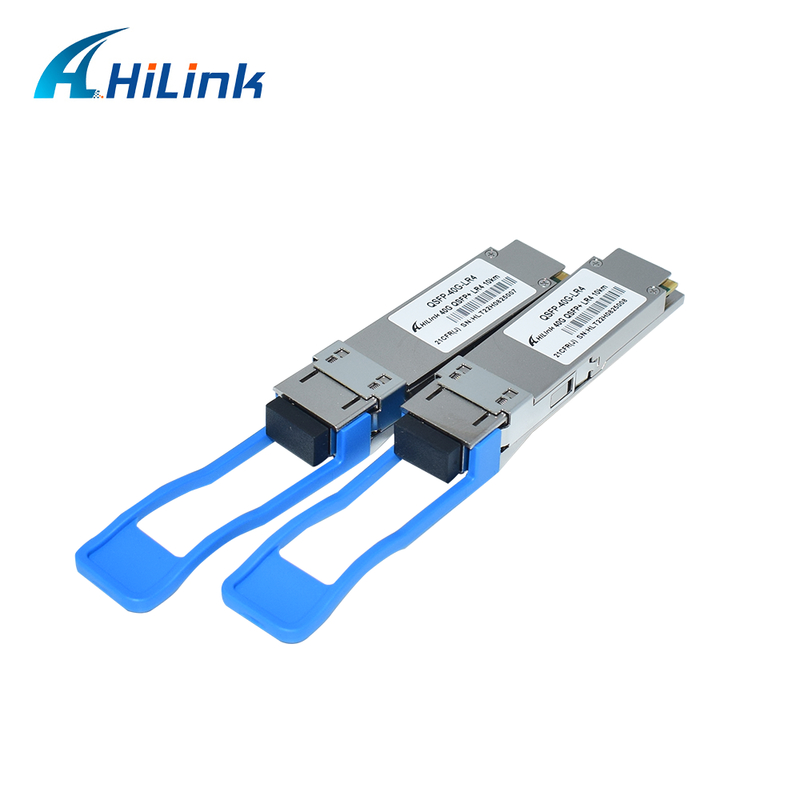

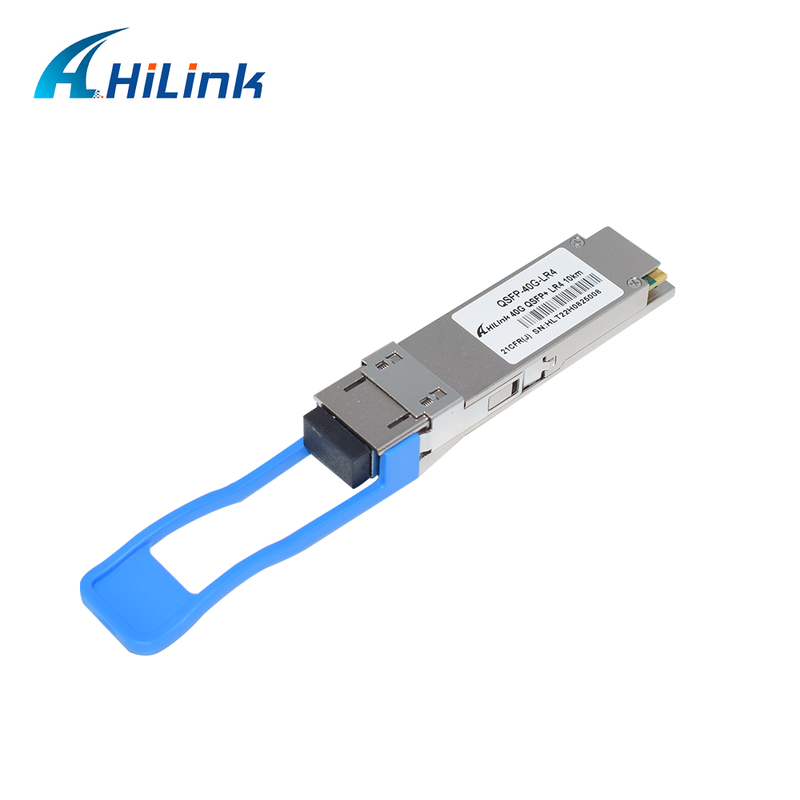

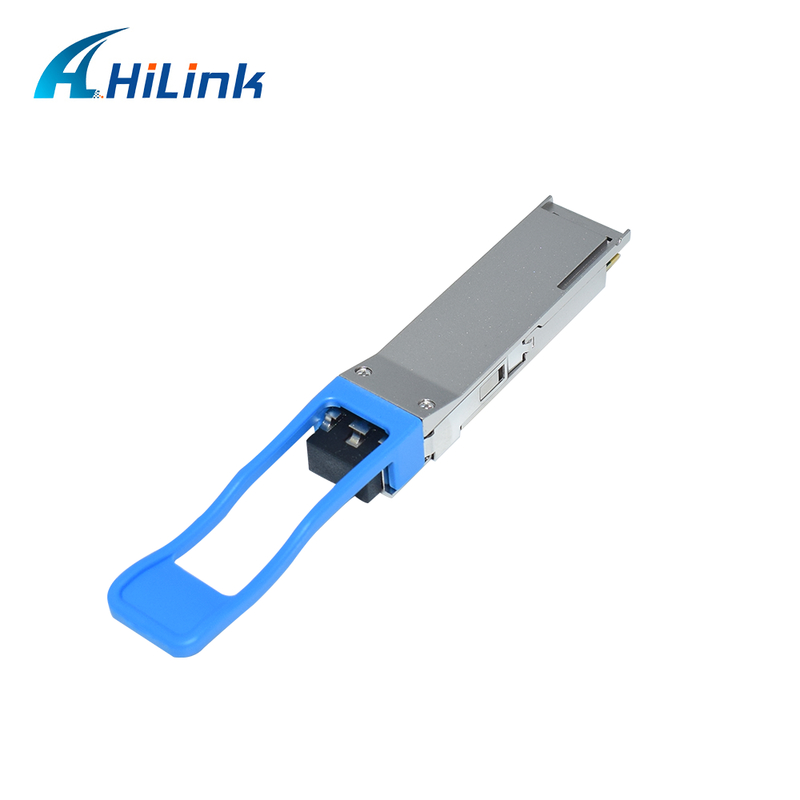

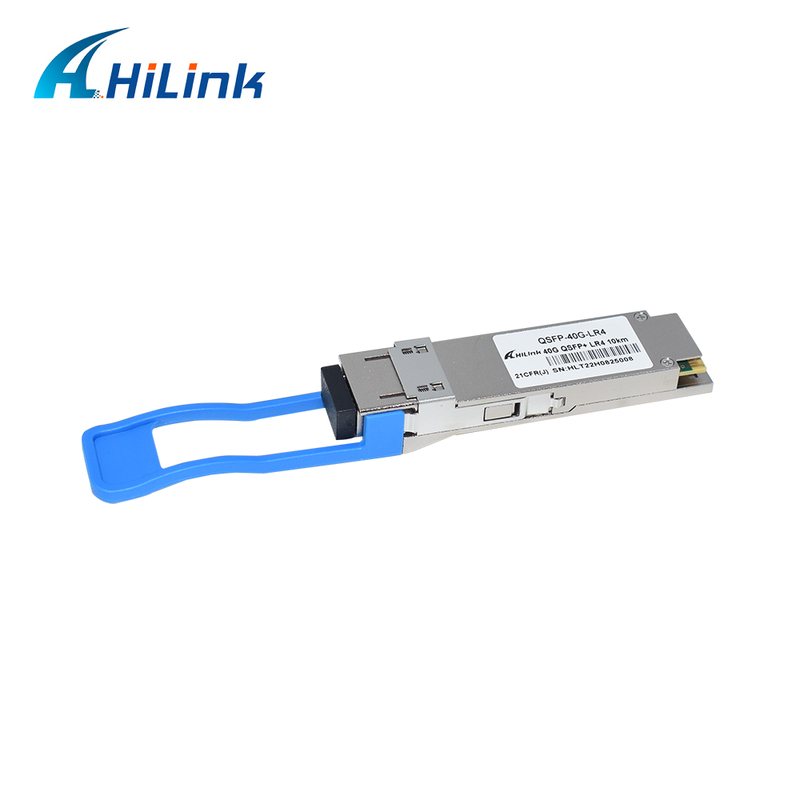

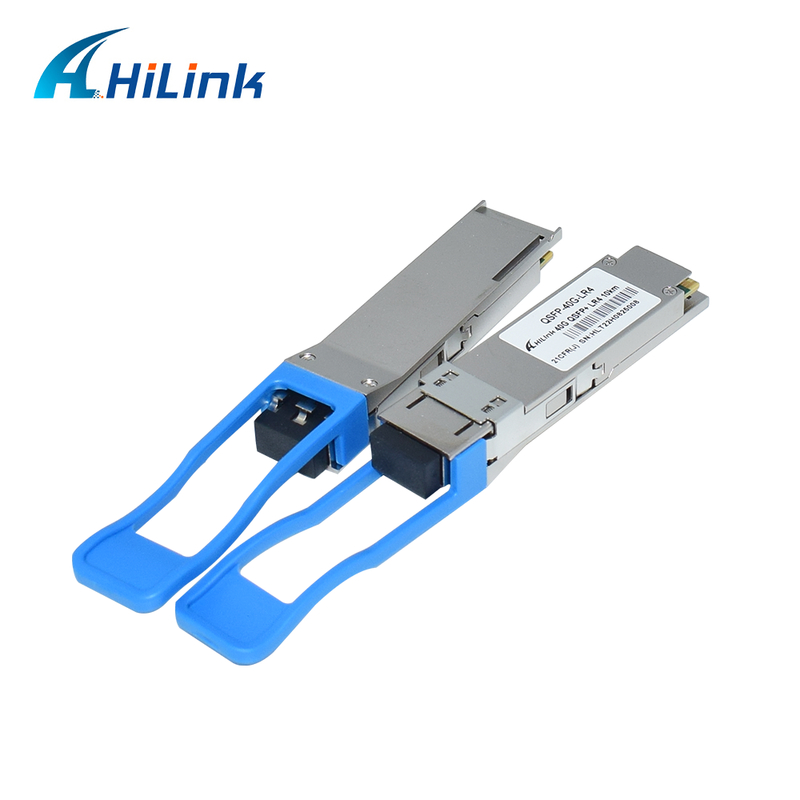

Product Images

Our Services

OEM and ODM: Custom OEM/ODM orders are available for this product.

Quality Guarantee

All advertised optical transceivers are brand new with new components and never use old or refurbished materials. Each unit undergoes functional testing and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply a comprehensive range of compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules compatible with most major brands.

Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 3-7 days.
