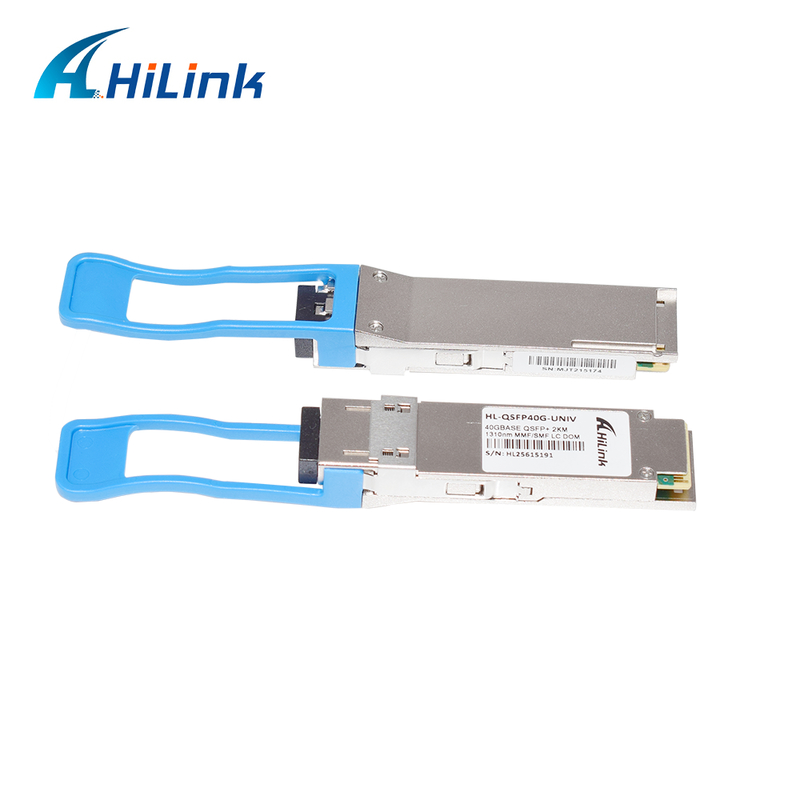

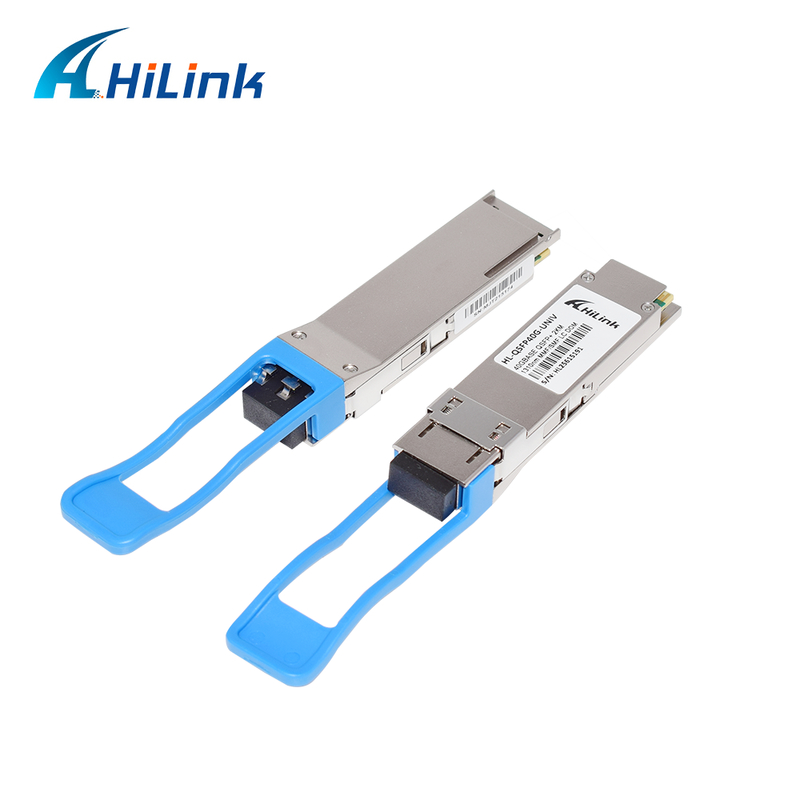

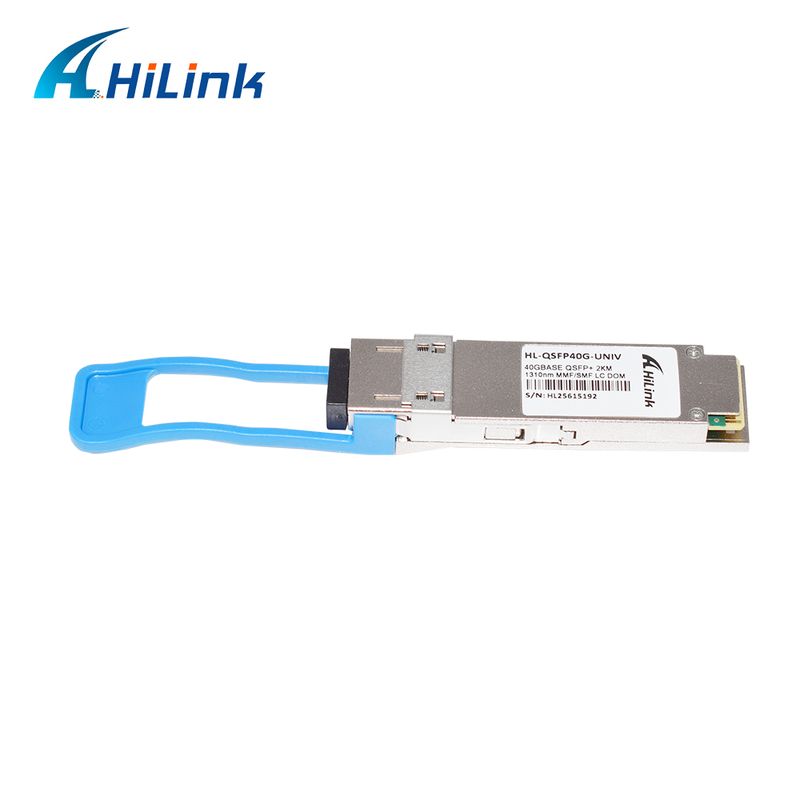

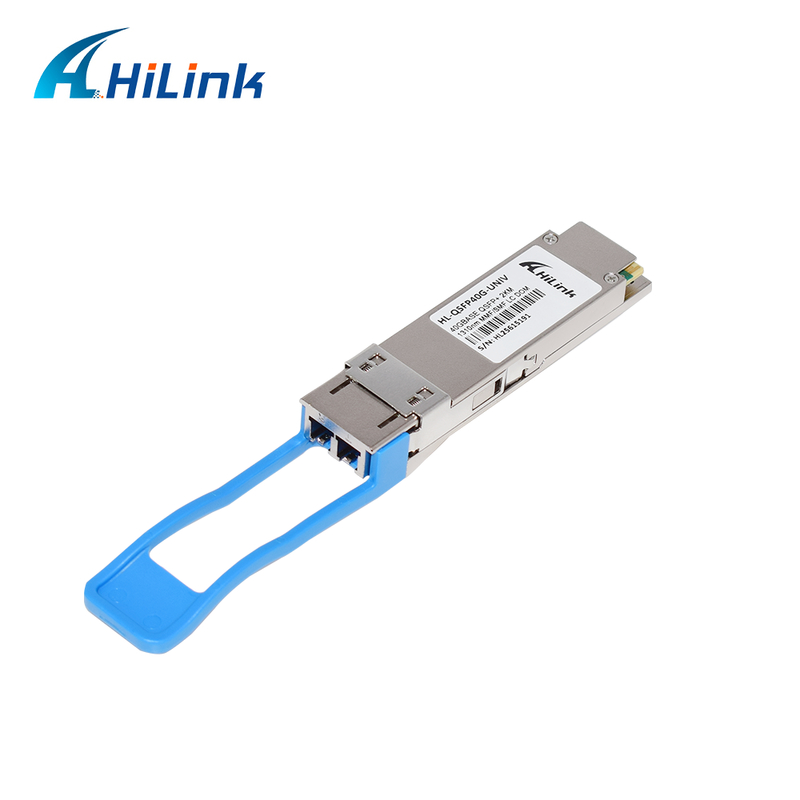

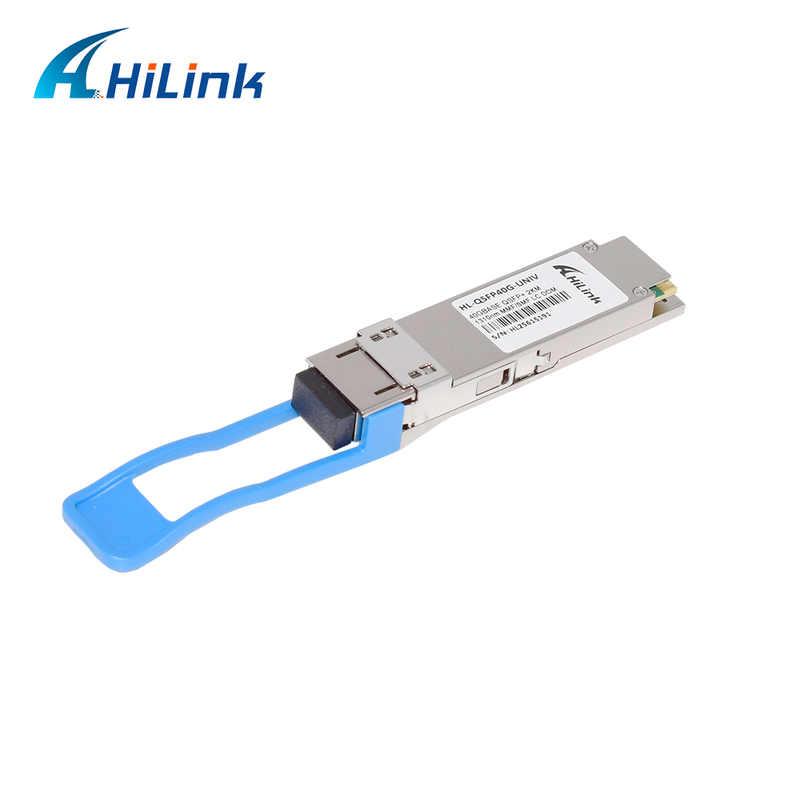

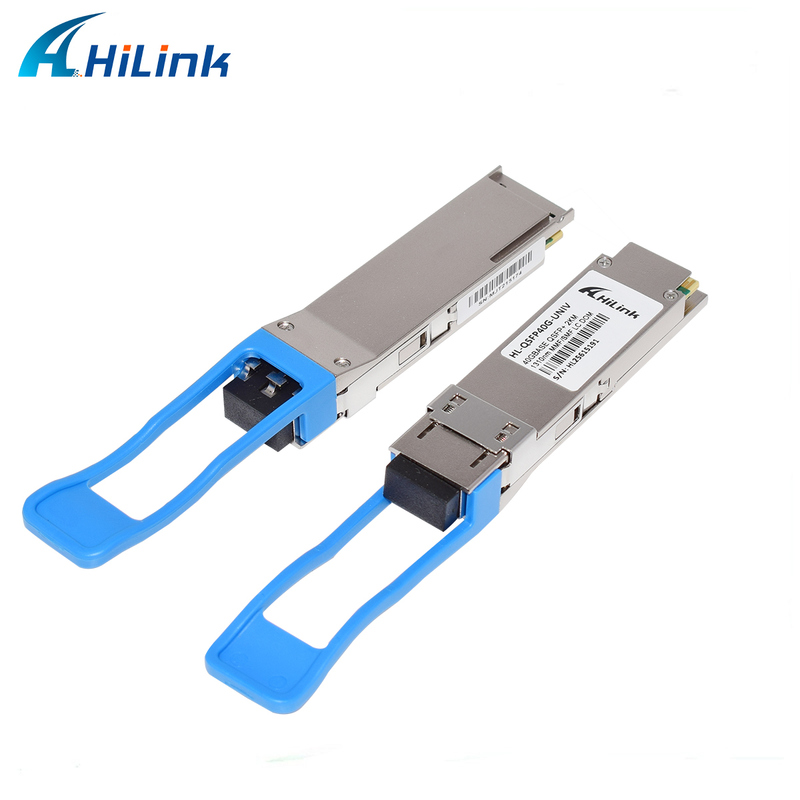

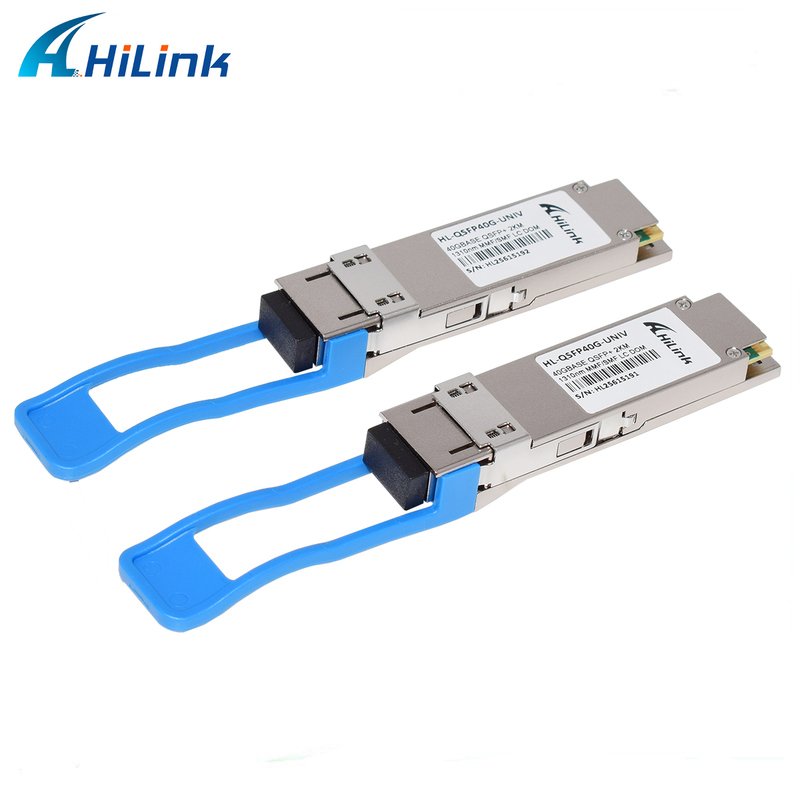

Name: 40Gb/s LX4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-LX4
Price: 81.00 USD
Availability: InStock

Home > Products > QSFP+ Transceiver >

40Gb/s LX4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring

1270~1330nm QSFP+ Transceiver

4 CWDM Lanes MUX/DEMUX Optical Module

2km Fiber Optic Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFP-40G-LX4

Request A Quote

40Gb/s LX4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring

Product Details

Products Name:

40G QSFP+ 2Km

Connetor:

Duplex LC

Data Rate:

40G

Distance:

2KM

Temperature Range:

0℃ ~ +70℃

Certification:

RoHS Compliant

Type:

Fiber Optic Transceivers, 40G QSFP+

Digital Diagnostic Functions:

Built-in

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

EXW: 75~87USD/PCS

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

5-8workingdays

Payment Terms

Western Union,T/T,L/C

Supply Ability

100pcs/month

40G QSFP+ SWDM4 Optical Transceiver with 240m/350m Distance Duplex LC Connector and Built-in Digital Diagnostics

Get Best Price

40Gb/s 150m QSFP+ SR4 Transceiver Fiber Optic Module MPO Connector

Get Best Price

40Gb/s 100m QSFP+ Fiber Optic Module Bi-Di Duplex LC Hot Pluggable 850/900nm MMF

Get Best Price

40Gb/s 60km QSFP+ Transceiver Hot Pluggable Duplex LC Connector Single mode

Get Best Price

86-755-8317-6243

Contact Now

Product Description

40Gb/s LX4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring

Product Description

40Gb/s LX4 IR4 QSFP+ 2km Transceiver Duplex LC SMF/MMF Digital Diagnostics Monitoring

Key Features

Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-SR4/IR4 Standard
QSFP MSA compliant
Maximum link length of 100m on OM3 and 150m on OM4
4 CWDM lanes MUX/DEMUX design
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Operating temperature range: 0°C to 70°C
RoHS Compliant

Applications

Rack to rack connections
Data center switches and routers
Metro networks
40G Ethernet links

Technical Details

The HL-QSFP-40G-LX4 transceiver module is designed for 2km (SMF) and 150m (MMF) optical communication applications. Compliant with 40GBASE-SR4 and 40GBASE-LX4 of the IEEE P802.3ba standard, it converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals, multiplexing them into a single channel for 40Gb/s optical transmission. On the receiver side, it optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.

Our Services

We offer OEM and ODM services for custom orders.

Quality Guarantee

All optical transceivers are brand new with new components, never using old or refurbished materials. Each unit undergoes functional and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special modules compatible with most major brands.

Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS with delivery in 3-7 days.
