Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial

Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial

10Gb SFP+ DWDM transceiver module

SFP+ optical module 40km range

industrial DWDM SFP+ transceiver

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-DWSFP10G-ER

Contact Us
Request A Quote
Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial
Product Details
Product Name:
10G DWDM SFP+ 40KM
Data Rate:
10G
Wavelength:
CH17~61
Distance:
40km
Warranty:
3 Years
Certification:
RoHS
Delivery Time:
3-7workingdays
OEM:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price Hilink Customized MTP/MPO Patchcord Cables online

Hilink Customized MTP/MPO Patchcord Cables

Get Best Price
Good price Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver online

Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Get Best Price
Good price Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 80km Transceiver Optical Module Duplex LC Commerical Industrial online

Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 80km Transceiver Optical Module Duplex LC Commerical Industrial

Get Best Price
Good price Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module online

Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module

Get Best Price
CONTACT US
Contact Now
Product Description

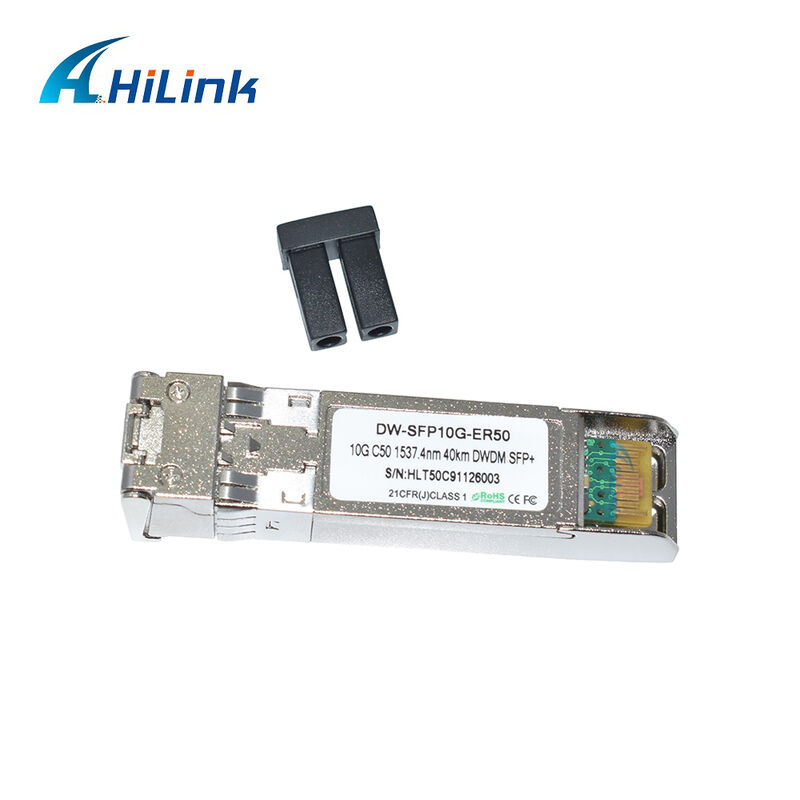

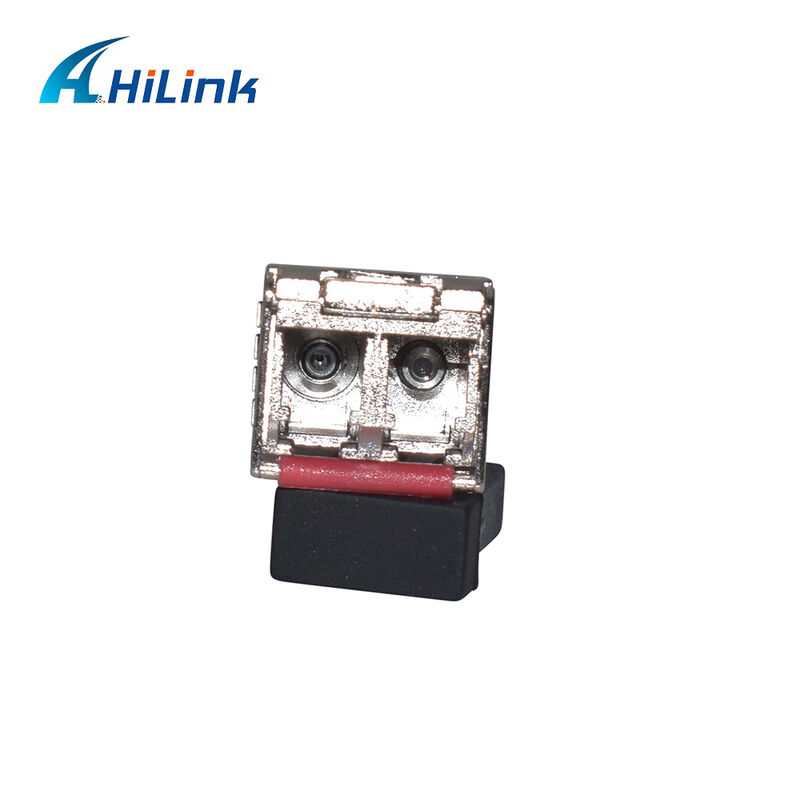

Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial
HILINK 10G DWDM SFP+ 40KM Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber. They are compliant with SFF-8431, SFF-8432 and ITU-T G.698.1. The transceiver designs are optimized for high performance and cost effectiveness to supply customers the best solutions for telecommunication.
This transceiver consists of two sections: The transmitter section incorporates a cooled EML laser, and the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Key Features
  • Supports 9.95 to 11.3 Gb/s bit rates
  • Duplex LC connector
  • Hot pluggable SFP+ footprint
  • Cooled EML transmitter and PIN-TIA receiver
  • Applicable for 40km SMF connection
  • Low power consumption, < 1.2W
  • 100 GHz channel spacing
  • Digital Diagnostic Monitor Interface
  • Optical interface compliant to ITU-T 694.1 & G.698.1
  • Electrical interface compliant to SFF-8431 & SFF-8432
  • Operating case temperature:
    • Commercial: 0 to 70°C
    • Industrial: -5 to 80°C
Applications
  • 10G Ethernet
  • 2x, 4x, 8x Fiber Channel
  • ITU-T G.698.1
  • Other optical links
Company Information
Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial 0 Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 40km Transceiver Optical Module Duplex LC Commerical Industrial 1
OEM/ODM orders are available upon request.
Quality Guarantee
We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.
Product Portfolio
We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.
Frequently Asked Questions
  • Do you sell second-hand products?
    No. All our products are brand new, and we never use second-hand components.
  • What payment terms do you accept?
    We accept T/T, PayPal, and Western Union.
  • What shipping methods do you offer?
    Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.
  • Do your products come with warranty?
    Yes, we provide a 3-year warranty for all our products from the date of shipment.
  • What devices are your products compatible with?
    Our products are compatible with mainstream network switches and equipment.
  • How to place an order?
    1. Confirm order details - provide the model and quantity you need
    2. Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
    3. Confirm and ship goods - tracking number will be sent promptly
    4. We'll help track your shipment until safe delivery
