Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module

Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module

400Gb/s QSFP-DD DR4 transceiver

MPO-12 optical transceiver module

500M QSFP-DR4 compatible module

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-400G-QDD-DR4

Contact Us
Request A Quote
Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module
Product Details
Product Name:
400G-QDD-DR4
Data Rate:
400G
Distance:
500m
Connector:
MPO-12
Warranty:
3 Years
Certification:
RoHS 2.0
Delivery Time:
3-7workingdays
OEM:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price Hilink Customized MTP/MPO Patchcord Cables online

Hilink Customized MTP/MPO Patchcord Cables

Get Best Price
Good price Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver online

Hilink HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Get Best Price
Good price Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 80km Transceiver Optical Module Duplex LC Commerical Industrial online

Hilink 10Gb SFP+ DWDM SFP 100GHZ CH17~61 Optional 80km Transceiver Optical Module Duplex LC Commerical Industrial

Get Best Price
Good price Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module online

Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module

Get Best Price
CONTACT US
Contact Now
Product Description
Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module
The Hilink HL-400G-QDD-DR4 is designed for 500m optical communication applications and is compliant with the 100G Lambda MSA standard. This module converts 8-channel 53.125 Gbps electrical data to 4-channel 106.25 Gbps optical signals.
Key Features
  • Up to 50Gbps data rate per channel using PAM4 modulation
  • 4 channels transmitters and PIN receivers
  • 8 x 53.125 Gbps PAM4 electrical interface (400GAUI-8)
  • Maximum power consumption: 9 W
  • MPO-12 connector
  • Up to 500m transmission on single mode fiber
  • Operating case temperature: 0°C to 70°C
  • Single 3.3 V power supply
  • QSFP-DD MSA compliant rev4.0 compliant
  • Compliant with IEEE 802.3cu
Applications
  • Data Center 400GE 500m SMF links
  • 4:1 breakout with 100GBASE-DR
  • Upgrading 100G PSM4 to 400G
  • Switch/Router interconnections

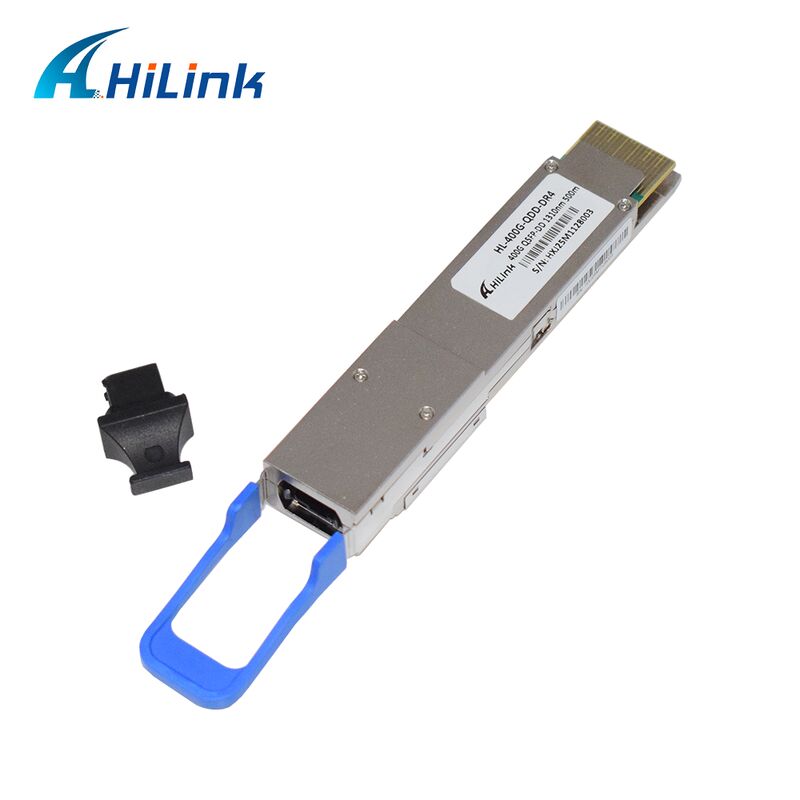

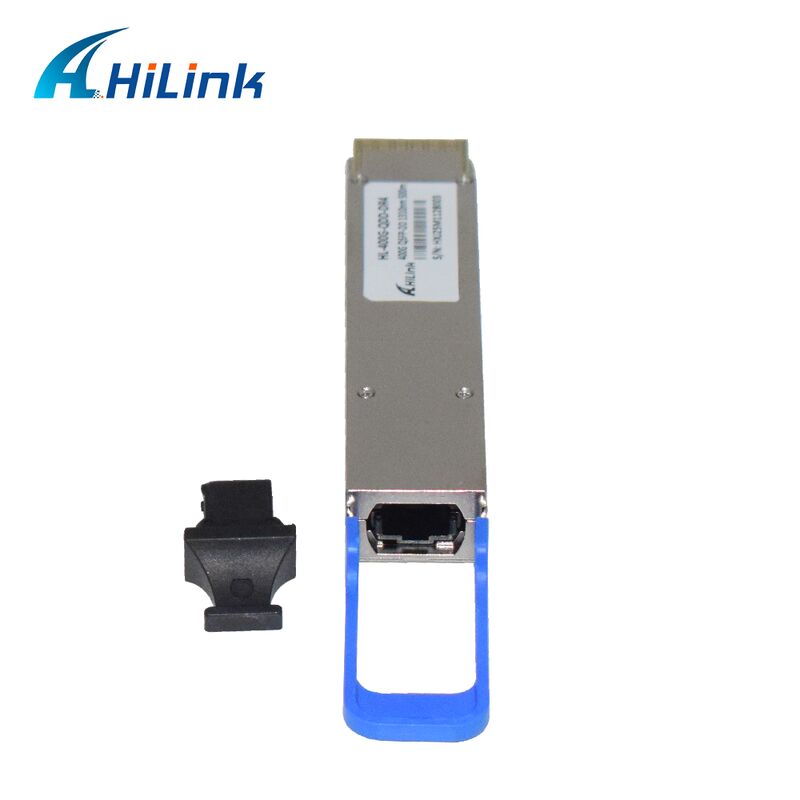

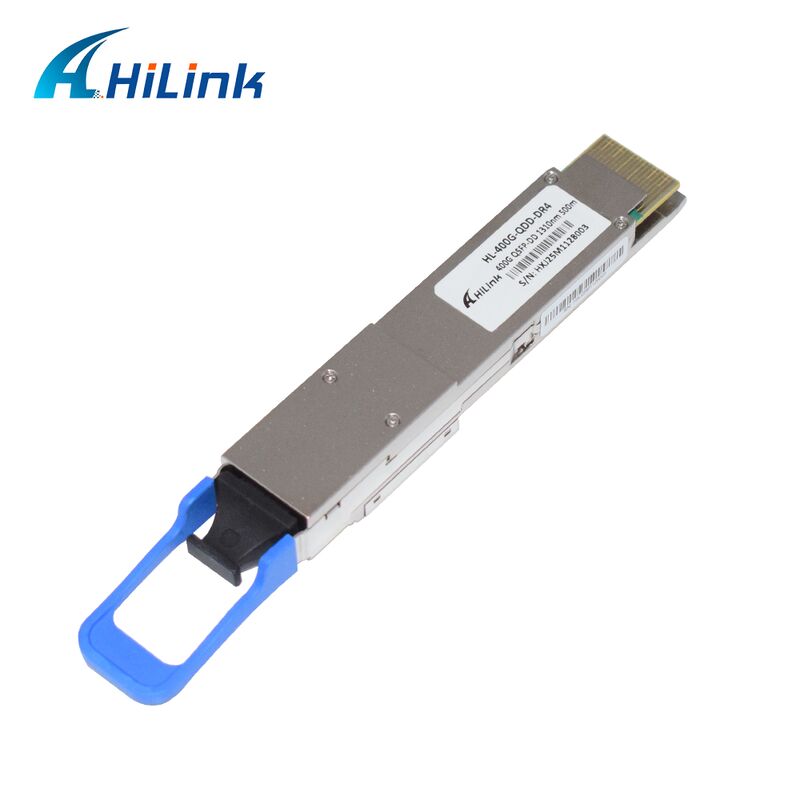

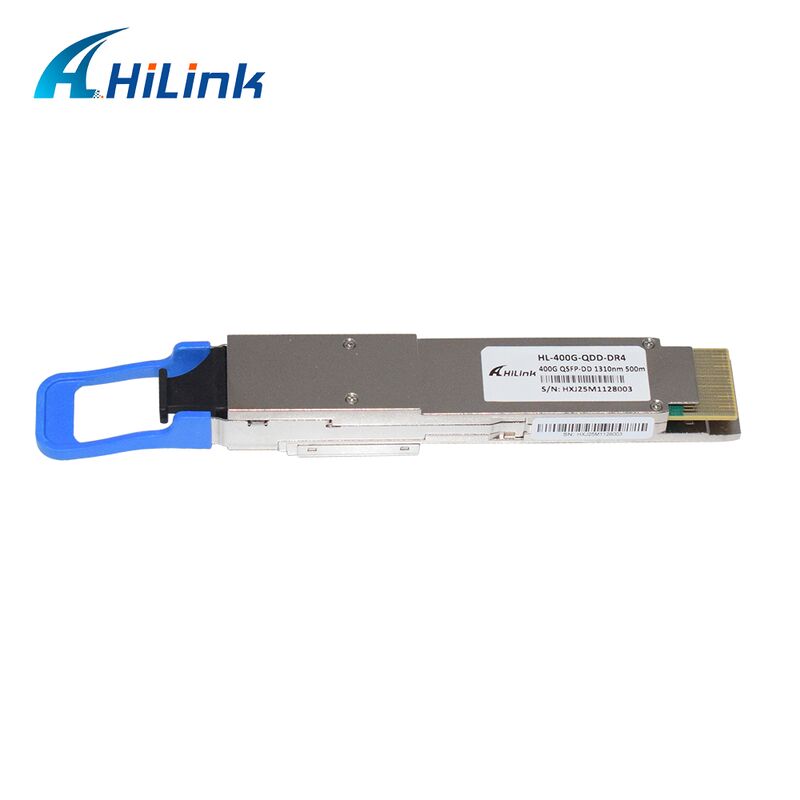

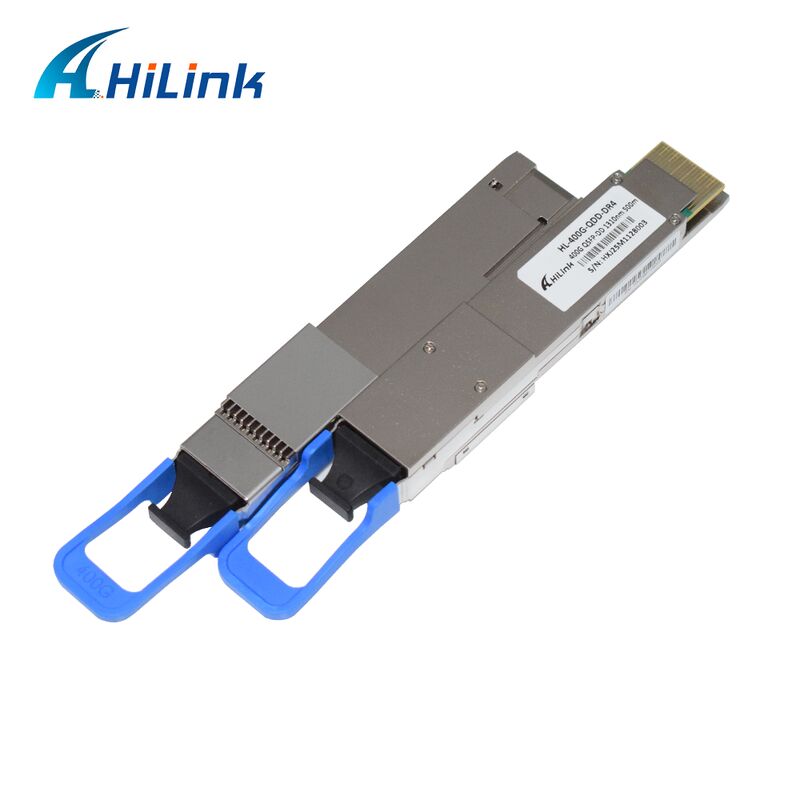

Product Images
Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module 0 Hilink HL-400G-QDD-DR4 400Gb/s 500M QSFP-DD DR4 MPO-12 Optical Transceiver Compatible Module 1
Custom Manufacturing
OEM/ODM orders are available upon request.
Quality Guarantee
We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.
Product Portfolio
We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.
Frequently Asked Questions
Do you sell second-hand products?
No. All our products are brand new, and we never use second-hand components.
What payment terms do you accept?
We accept T/T, PayPal, and Western Union.
What shipping methods do you offer?
Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.
Do your products come with warranty?
Yes, we provide a 3-year warranty for all our products from the date of shipment.
What devices are your products compatible with?
Our products are compatible with mainstream network switches and equipment.
How to place an order?
  1. Confirm order details - provide the model and quantity you need
  2. Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
  3. Confirm and ship goods - tracking number will be sent promptly
  4. We'll help track your shipment until safe delivery
