Name: HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box for Data Center
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-Cir-xxxx
Price: 130.00 USD
Availability: InStock

Home > Products > Optical Transceiver Module >

HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box for Data Center

3-ports optical circulator LC/UPC SC/APC

1310nm circulator for data center

ABS box optical circulator 1550nm

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE Rohs

Model Number:

HL-Cir-xxxx

Request A Quote

HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box for Data Center

Product Details

Product Name:

ABS Box 3 Ports Circulator

Fiber Connector:

Port1&Port3-LC/UPC, Port2-SC/APC

Payment & Shipping Terms

Minimum Order Quantity

1 pieces

Price

Send Inquiry know latest price

Packaging Details

Plastic box

Delivery Time

5-8 working day

Payment Terms

T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance

Supply Ability

2000 Pieces/Week

Hilink 100G QSFP28 Optical Transceiver Module with 100km Distance 100G Data Rate and ZR4+ Compliance

Get Best Price

HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver with 2km Reach Optical Transceiver Module

Get Best Price

Hilink HL-QSFP28-100G-UD-10 100Gb/s QSFP28 LR BIDI 10km Single Lambda Optical Transceiver Module

Get Best Price

Hilink QSFP28-BX-UD40 100G BiDi Optical Transceiver with 40km Distance for Data Center Applications

Get Best Price

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

ABS Box 3 Ports Circulator, Port1&Port3-LC/UPC, Port2-SC/APC 1310nm/1550nm/1610nm

An optical circulator is a special optical passive component that can be used to separate optical powers that travel in opposite directions in one single optical fiber, analogous to the operation of an electronic circulator. An optical circulator is a three-port device that allows light to travel in only one direction - from port 1 to port 2, then from port 2 to port 3. This feature is very important to optical bidirectional transmission and communication. Usually, it was use for optical transceiver, FBG(fiber Bragg grating) filter and optical amplifier

Features:

High Channel Isolation

Low Insertion Loss

High Return Loss

Low PDL

High Stability and Reliability

Compact in-Line Package

Epoxy Free Optical Patch

Application:

Optical Fiber Amplifier

CATV Optical Fiber Link

Optical Fiber System testing

Wavelength Add/Drop

Dispersion Compensation

Bi-Direction Communication

Parameter		Specification
Configuration		Port 1 to Port 2 to Port 3		Port 1 to Port 2 to Port 3 to Port 4
Operation Wavelength (nm)		1310±30 or 1550±30 or 1585±30	1525 to 1610	1310±30 or 1550±30
I.L (dB)	Typical	0.6	1.0	0.8
I.L (dB)	Maximum	0.8	1.2	1.0
Typical Isolation (dB)		50	50	50
Minimum Isolation (dB)		40	35	40
Cross Talk (dB)		≥50	≥50	≥50
Polarization Dependent Loss (dB)		<0.15	<0.2	<0.2
Polarization Mode Dispersion		<0.1	<0.1	<0.1
Return Loss(dB)		≥50	≥50	≥50
Power Handling (mW)		300	300	300
Operating Temperature (℃)		-0~+70	-0~+70	-0~+70
Storage Temperature (℃)		-40~+85	-40~+85	-40~+85

HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box for Data Center 0

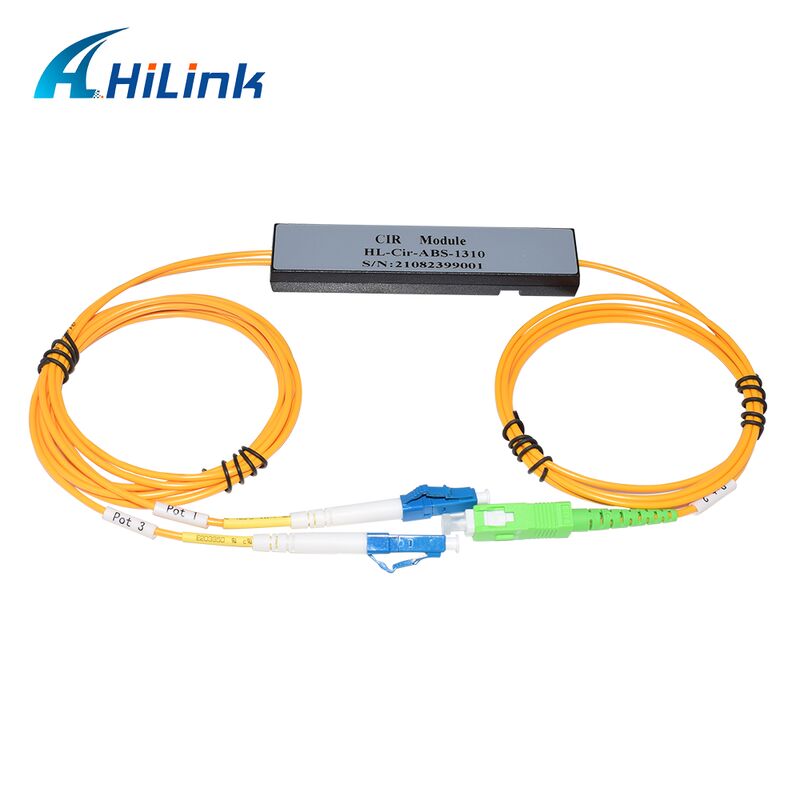

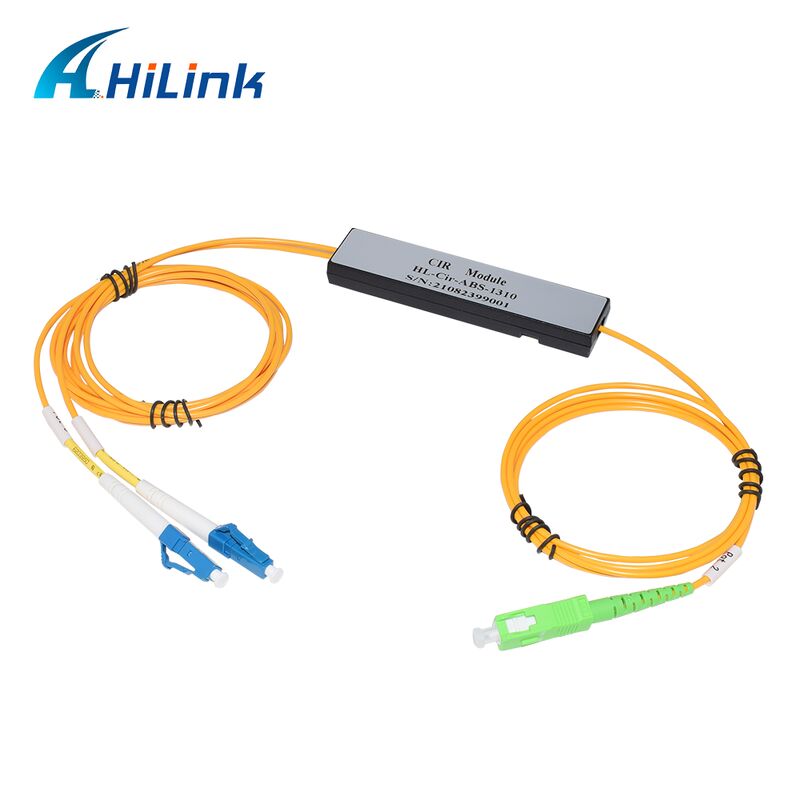

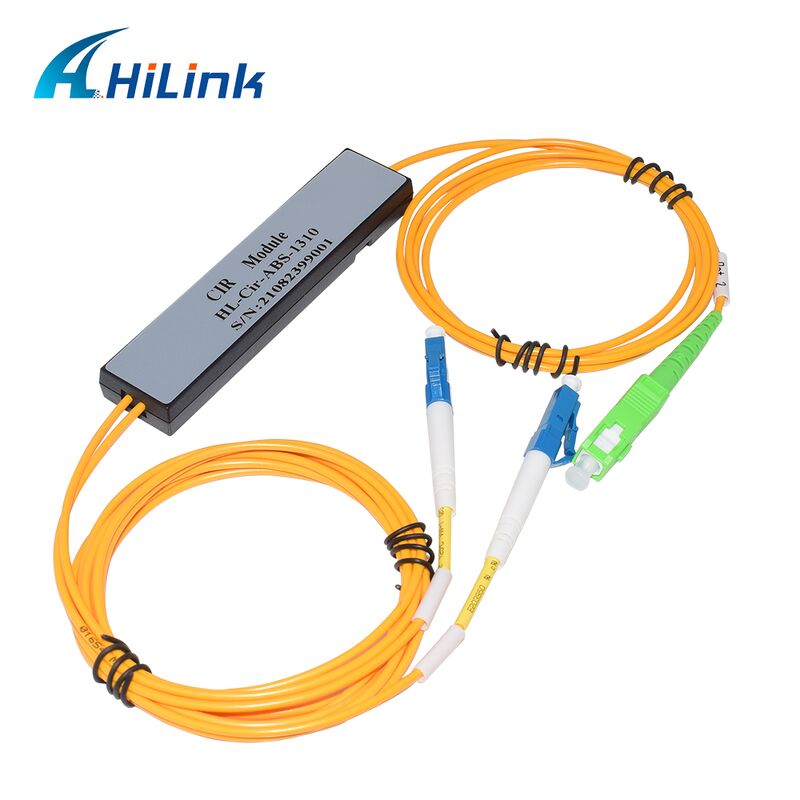

Real Photo Show

HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box for Data Center 1

Order Info

Product

Centre Wavelength

Grade

Pigtail Type

Fiber length

Connector Type

Optical

Circulator

1310nm1550nm

P= Grade P

A=Grade A

1=250um bare fiber

2=900um Loose tube

3=2mm Cable

4=3mm Cable

1=1m

1.5=1.5m

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=LC

Packing&Shipping

We provide safe and reliable packaging:Plastic box+Carton or by required

Delivery time:2-5 working days

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.

Our Service

OEM/ODM order is available
