Name: 400G OSFP LR4 10km Duplex LC Transmission on Single Mode Fiber (SMF) OSFP Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL- 400G - OSFP-LR
Price: 900.00 USD
Availability: InStock

Home > Products > QSFP+ Transceiver >

400G OSFP LR4 10km Duplex LC Transmission on Single Mode Fiber (SMF) OSFP Module

400G OSFP LR4 transceiver

OSFP module single mode fiber

10km duplex LC OSFP

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL- 400G - OSFP-LR

Request A Quote

Product Details

Product Name:

400G - OSFP-LR

Application:

400Gbase

Wavelength:

1310nm

Distance:

10KM

Connector:

DDM/DOM:

Yes

Fiber Type:

SMF

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Static bag, Plastic bag, Retail box

Delivery Time

2-7 working days

Payment Terms

T/T, Western Union,Paypal

Supply Ability

10pcs/Week

400G Base SMF LR4 OSFP Module Duplex LC Transmission on 10km for 5G Data Center

Get Best Price

Video

QSFP+ Transceiver VCSEL OM4 MMF QSFP+ Transceiver 850nm 100m Duplex LC 100G Fcc

Get Best Price

Video

100G QSFP28 SWDM4 Fiber Optical Transceiver MMF 150m Duplex LC For Data Center

Get Best Price

Video

Duplex LC SMF Optical Transceiver Module 100GBASE-LR1 QSFP28 Single Lambda 1310nm 10km DOM

Get Best Price

Contact Now

Product Description

400G OSFP LR4 10km Duplex LC Transmission on Single Mode Fiber (SMF) OSFP Module

Product Overview

400G Base SMF LR4 OSFP Module Duplex LC Transmission on 10km for 5G Data Center

Kindly Remind: Tell us your needed compatibility!

OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s.

The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with a 4-channels modulator driver, 4 externally modulated lasers and one optical multiplexer. On the receiver path, an optical de-multiplexer is coupled to 4 photodiodes, along with the PAM4 re-timer that built-in 4-channel TIA array. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

Key Features

Supports 425Gbps
Single 3.3V Power Supply
Up to 10km over SMF with KP4 FEC supported at the Host side
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface PIN and TIA array on the receiver side
Power dissipation < 8W

QSFP Series Comparison

QSFP	Nominal Wavelength (nm)	Cable Type	Core Size (Microns)	Modal Bandwidth (MHzkm)3	Cable Distance*1	Power Consumption (W)	Pull Tab Color
QSFP-100G-SR4-S	850	MMF	50.0 50.0	2000 (OM3) 4700 (OM4)	70m 100m	3.5	Beige
QSFP-100G-LR4-S	1295, 1300, 1304, 1309	SMF	G.652	-	10km	3.5	Blue
QSFP-100G-CWDM4-S	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green
QSFP-100G-PSM4-S	1310	SMF	G.652	-	500m	3.5	Orange
QSFP-100G-SM-SR	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green

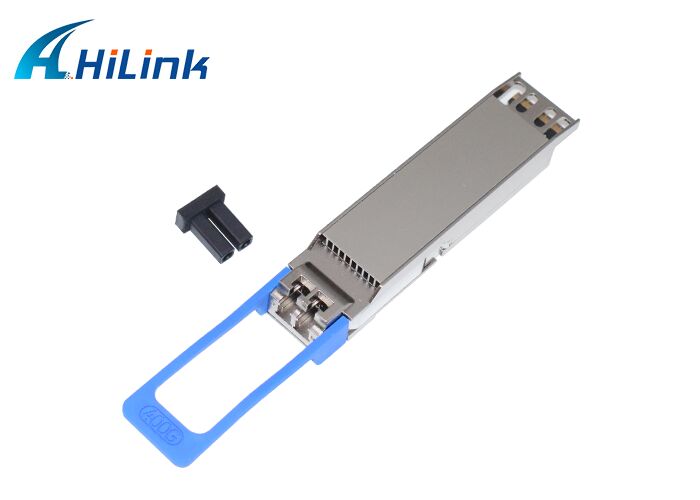

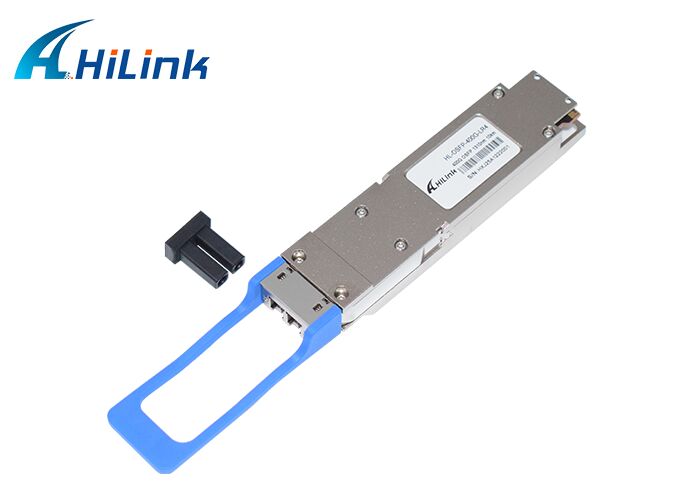

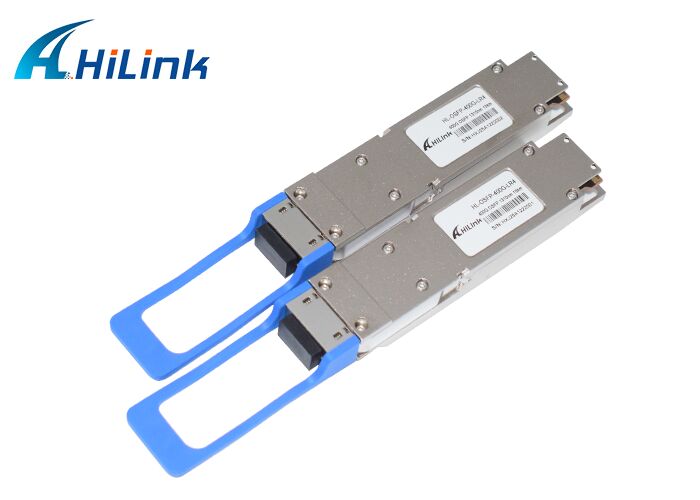

Product Image
