HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Place of Origin:

China

Brand Name:

HiLink or OEM

Certification:

CE FCC ROSH

Model Number:

HL-SFP28-LR-10KM

Contact Us
Request A Quote
HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers
Product Details
Data Speed:
25Gbps
Wavelength:
1310nm
Connector Type:
LC
Transmission Distance:
10km
Power Consumption:
<1.2 W
Operating Temperature:
-40°C To +85°C
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Negotiable
Packaging Details
Normal or OEM
Delivery Time
5-8 working days
Payment Terms
T/T,Western Union,PayPal
Supply Ability
2000pcs per week
RELATED PRODUCTS
Good price HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach online

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

Get Best Price
Good price HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers online

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Get Best Price
Good price 100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM online Video

100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM

Get Best Price
Good price QSFP28-BX-D40 100G QSFP28 40KM 1304/1309nm BIDI Optical Transceiver EML+APD SFP Transceiver online Video

QSFP28-BX-D40 100G QSFP28 40KM 1304/1309nm BIDI Optical Transceiver EML+APD SFP Transceiver

Get Best Price
Contact Us
Contact Now
Product Description
HL-SFP28-LR-10KM 25G SFP28 10km Dual LC Transceivers
Product Overview
The HL-SFP28-LR-10KM Transceiver is designed for 10km reach service 25.78Gb/s 1310nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It features low power consumption, operates on a 3.3V DC power supply, and is available in industrial temperature range. Compliant with SFP28 MSA, SFF-8431 and SFF-8432 standards.
The optical assembly features low jitter and low bit error rate with a DML laser transmitter and PIN/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.
Key Features
  • Operating data rate up to 25.78Gbps
  • Rate Adaptation
  • Up to 10km transmission distance
  • High sensitivity Pin photodiode and TIA
  • LC duplex connector
  • Hot pluggable 20pin connector
  • Low power consumption <1.2 W
  • Single +3.3V±5% power supply
  • Compliant with SFF-8472 & IEEE 802.3cc
  • Fully RoHS Compliant
  • Operating temperature range:
    • Commercial: 0°C to +70°C
    • Industrial: -40°C to +85°C
Applications
  • Data Center Backbone
  • Ethernet Switches
  • High-speed Servers
  • High-performance Computing Clusters
  • SAN, Routers, Hubs, Load Balancer

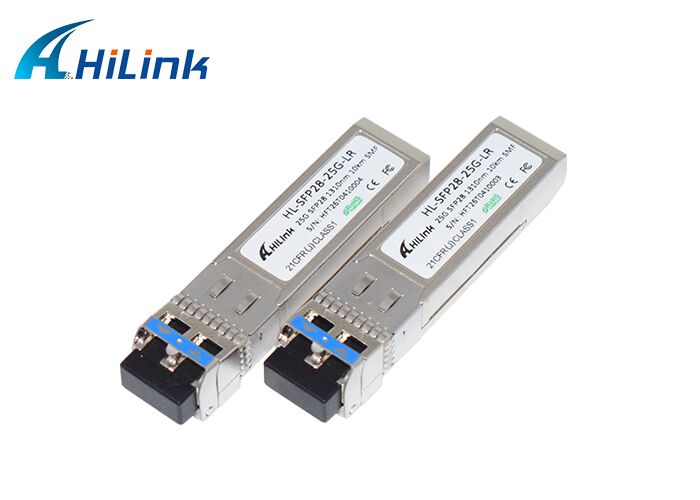

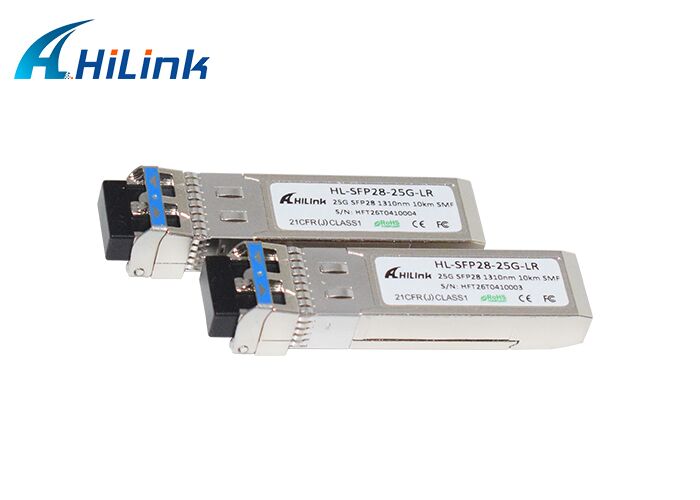

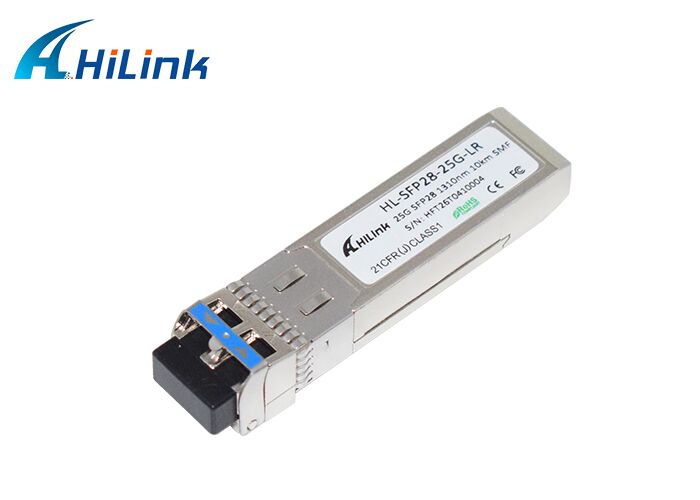

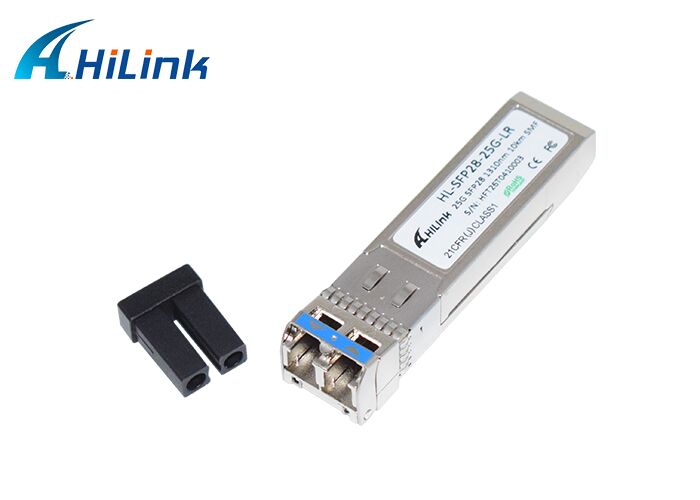

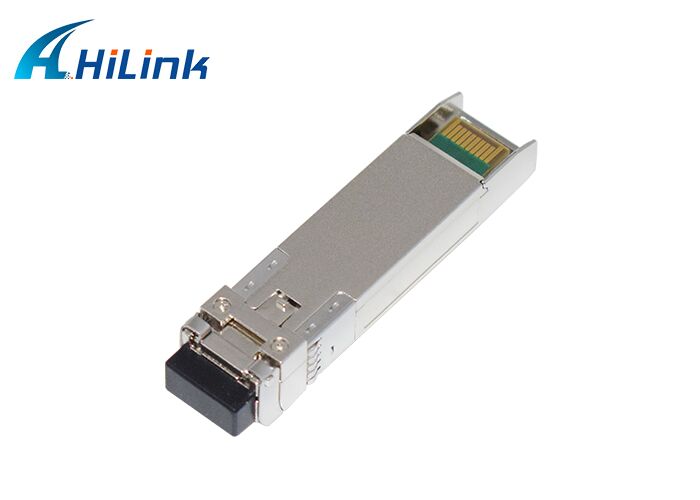

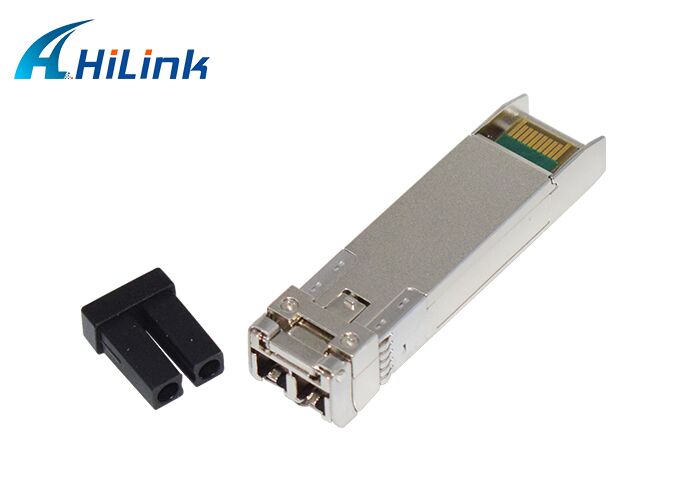

Product Images
HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers 0 HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers 1 HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers 2
