Name: QSA28 Adapter 100G QSFP28 Port to 25G SFP28 Slot Converter with Hot-Pluggable Design and Built-in EEPROM DDMI Monitoring
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSDD-400G-LR4
Price: 130.00 USD
Availability: InStock

Home > Products > Optical Transceiver Module >

QSA28 Adapter 100G QSFP28 Port to 25G SFP28 Slot Converter with Hot-Pluggable Design and Built-in EEPROM DDMI Monitoring

100G QSFP28 to 25G SFP28 QSA28 Adapter

Hot-Pluggable QSFP28 to SFP28 Converter

Built-in EEPROM QSA28 Adapter

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE FCC Rohs

Model Number:

HL-QSDD-400G-LR4

Request A Quote

QSA28 Adapter 100G QSFP28 Port to 25G SFP28 Slot Converter with Hot-Pluggable Design and Built-in EEPROM DDMI Monitoring

Product Details

Connetor:

Duplex LC

Wavelength:

1310nm

Products Name:

400G LR4 10KM

Temperature:

0℃ ~ +70℃

Data Rate:

400G

Distance:

10KM

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiable price

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

5-8workingdays

Payment Terms

T/T,L/C

Supply Ability

100pcs/month

400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver

Get Best Price

Video

SFP+ 10G Bidi 20km 1270nm/1330nm Fiber Optical Module

Get Best Price

QSFP28 100G BiDi Optical Transceiver with 10KM Reach 1271/1331nm Wavelength and Simplex LC Interface

Get Best Price

10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support

Get Best Price

86-755-8317-6243

Contact Now

Product Description

Adapter Converter Module

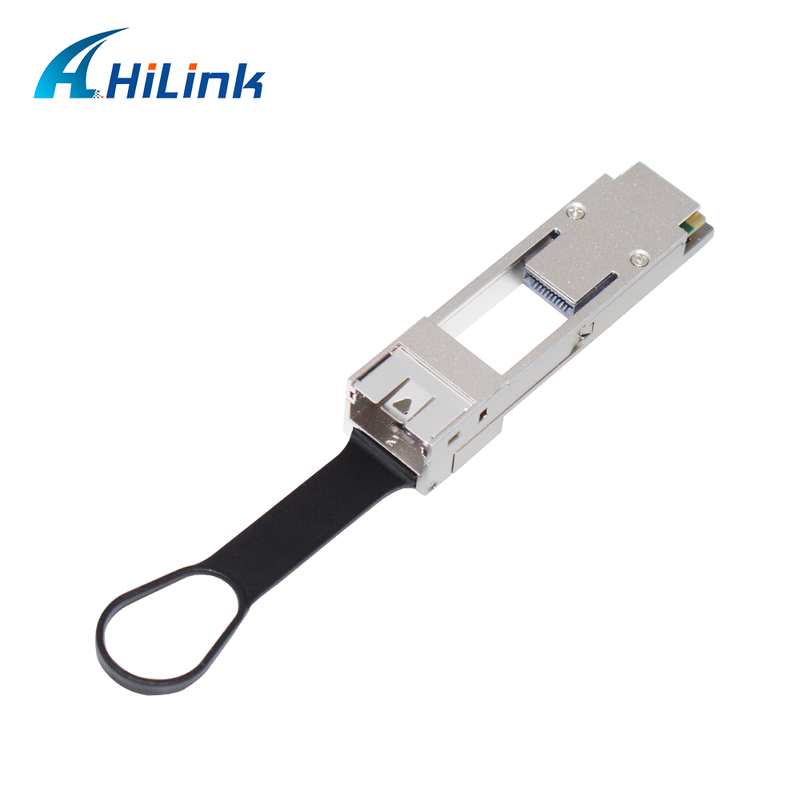

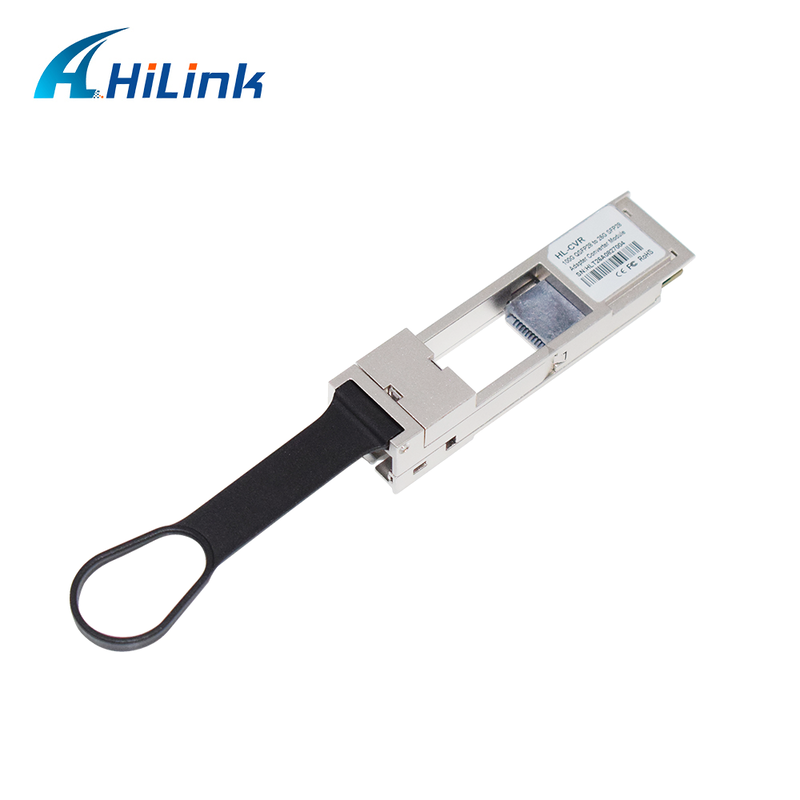

100G QSFP28 to SFP28 QSA28 Adapter Converter Module

This QSA28 adapter converts 100G QSFP28 port into SFP28 25G slot. It can work with 25G SFP28 module, DAC cables and AOC cables to reuse the existing 25G link resources. It can support hot plugging to easy installation. Compatible with most MSA-compliant swithes and servers. Widely adopted for data center upgarde and port resources optimization.

Product Features

Convert 100G QSFP28 port to 25G SFP28 slot
Support 25G SFP28 transceiver, DAC and AOC cable
Hot-pluggable design for easy installation
Low insertion loss and low crosstalk
Built-in EEPROM, support DDMI diagnostic monitoring
Secure latching structure for stable connection
Single 3.3V power supply
Operating case temperature: 0°C to 70°C
Compliant with SFF-8665 and SFF-8432 MSA standards
QSFP-DD MSA compliant rev5.0 compliant
All-metal housing for good EMI shielding and heat dissipation

Applications

Telecommunication room, server interconnection
Data center network

Part No.	Specifications									Application
Part No.	Package	Data rate	Laser	Optical Power	Detector	Sensitivity	Temp	Reach	Other	Application
HL-CVR	CVR-QSFP28 to SFP28	100G to 25G	N/A	N/A	N/A	N/A	0~70℃	N/A	DDM	400G Ethernet
