Name: 400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-400G-CFP2
Price: 130.00 USD
Availability: InStock

Home > Products > Optical Transceiver Module >

400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver

400G CFP2 DCO transceiver module

DWDM optical transceiver long distance

CFP2 transceiver module with warranty

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE FCC Rohs

Model Number:

HL-400G-CFP2

Request A Quote

400G CFP2 DCO DWDM Transceiver Module Long Distance Transmission Optical Transceiver

Product Details

Products Name:

400G CFP2 DCO

Connetor:

Duplex LC

Data Rate:

400G

Distance:

Long Distance

Wavelength:

C‑band Tunable DWDM Dense‑wavelength

Temperature:

0℃ ~ +70℃

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiable price

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

Confirmation

Payment Terms

T/T,L/C

Supply Ability

100pcs/month

SFP+ 10G Bidi 20km 1270nm/1330nm Fiber Optical Module

Get Best Price

QSFP28 100G BiDi Optical Transceiver with 10KM Reach 1271/1331nm Wavelength and Simplex LC Interface

Get Best Price

10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support

Get Best Price

10G BiDi SFP+ Optical Transceiver with 1270/1330nm Wavelength and 10KM Distance for Single Fiber Transmission

Get Best Price

86-755-8317-6243

Contact Now

Product Description

400G CFP2 DCO DWDM Transceiver Module

Long Distance Transmission Optical Transceiver

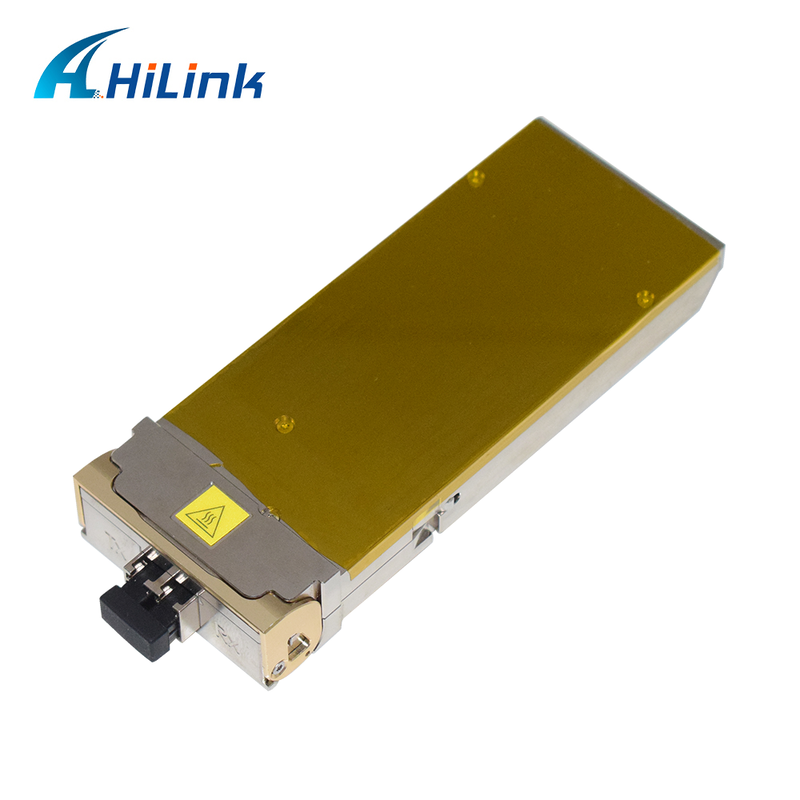

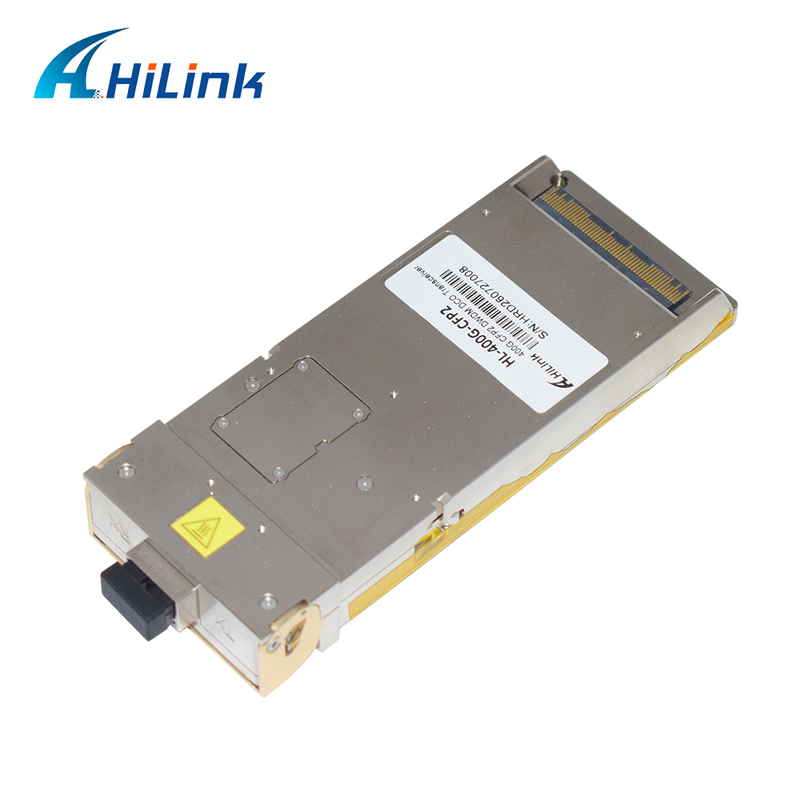

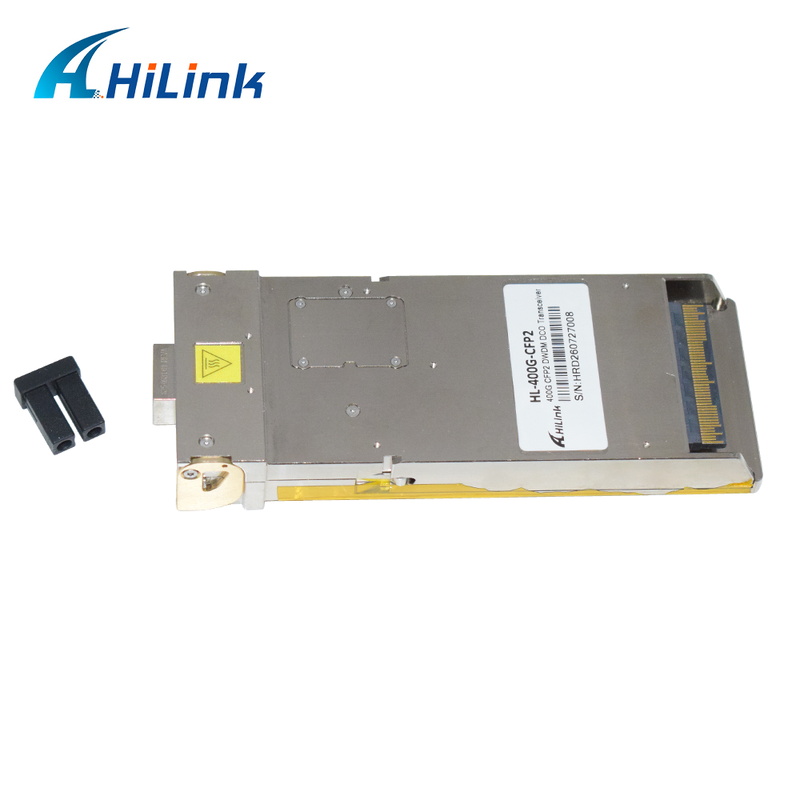

This high-performance optical transceiver module features CFP2-DCO form factor with golden-finger electrical interface for compatible CFP2 switch cages. Equipped with Duplex LC fiber connectors for standard single-mode fiber patch cords, it incorporates Digital Coherent Optics (DCO) architecture with C-band tunable ITLA laser for DWDM dense-wavelength systems and long-distance transmission applications.

Product Features

4×100Gbps PAM4 coherent parallel lanes
CFP2-DCO golden-finger electrical interface
Integrated ITLA tunable laser and coherent receivers
DWDM dense-wavelength operation with C-band tunable channels
Digital Coherent Optics (DCO) architecture
Maximum power consumption: 18 W
LC duplex connector compatibility
Long-reach transmission over single-mode fiber
Operating case temperature: 0°C to 70°C
Single 3.3 V power supply
Compliant with CFP2 MSA specification
Compliant to relevant OTU & Ethernet standards

Applications

400G Ethernet networks
Data center network infrastructure
Backbone transmission systems
Metro WDM applications

Technical Specifications

Part No.	Specifications	Application
HL-400G-CFP2	Package: CFP2-DCO Data Rate: 400G Laser: ITLA Tunable C-band DWDM Optical Power: -2.8~4 dBm Detector: Coherent Receiver Sensitivity: Max (-6.6, -8+ SECQ) Temperature: 0~70℃ Reach: Long distance Other: DCO, DDM	400G Ethernet
