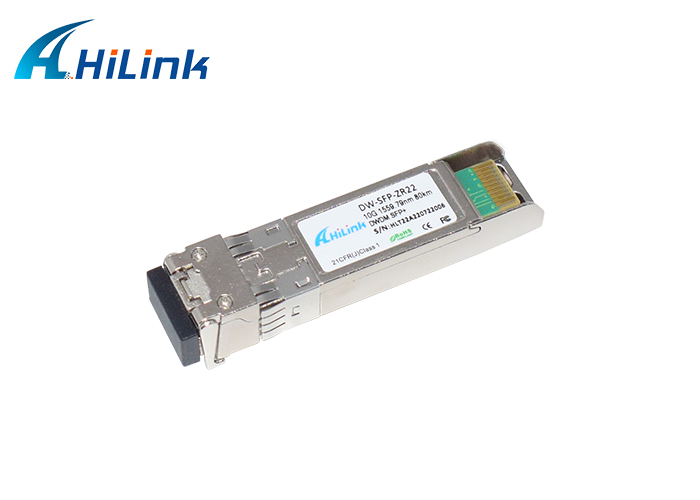

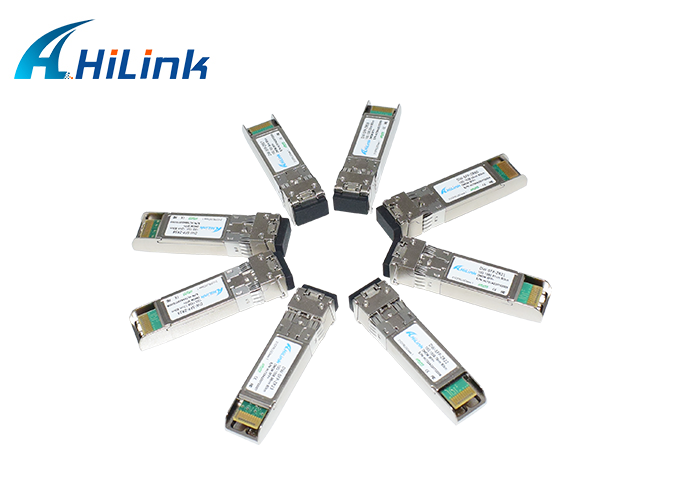

10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support

10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support

80km SFP+ Optical Transceiver

C17-61 Wavelength 10G SFP+ Module

DDM/DOM Support DWDM SFP+ Transceiver

Place of Origin:

China

Brand Name:

Hilink

Certification:

CE ROSH FCC UKCA

Model Number:

HL-SFP-DW-80

Contact Us
Request A Quote
10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support 10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support
Product Details
Wavelength:
C17-61
Data Speed:
10G
Distance:
80km
Fiber Type:
SMF
DDM/DOM:
Yes
Private Label:
Supported
Connector:
Duplex LC
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
Negotiable
Packaging Details
0.02g
Delivery Time
5-8 working days
Payment Terms
L/C,T/T,PayPal
Supply Ability
2000pcs per month
RELATED PRODUCTS
Good price QSFP28 100G BiDi Optical Transceiver with 10KM Reach 1271/1331nm Wavelength and Simplex LC Interface online

QSFP28 100G BiDi Optical Transceiver with 10KM Reach 1271/1331nm Wavelength and Simplex LC Interface

Get Best Price
Good price 10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support online

10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support

Get Best Price
Good price 10G BiDi SFP+ Optical Transceiver with 1270/1330nm Wavelength and 10KM Distance for Single Fiber Transmission online

10G BiDi SFP+ Optical Transceiver with 1270/1330nm Wavelength and 10KM Distance for Single Fiber Transmission

Get Best Price
Good price 400G QSFP-DD LR4 Optical Transceiver with 10km Transmission 1310nm Wavelength and Duplex LC Connector online

400G QSFP-DD LR4 Optical Transceiver with 10km Transmission 1310nm Wavelength and Duplex LC Connector

Get Best Price
Contact Us
+86 188 7132 7004
sales09@hilinktech.com
86-755-8317-6243
Contact Now
Product Description

10G DWDM SFP+ C17-C61 80km DOM Duplex LC SMF Transceiver Module

The laser-based 10Gigabit SFP+ Transceiver is designed to transmit and receive serial optical data over single mode optical fiber with 80km. They are compliant with SFF-8431,SFF-8432, 10GFC Rev 4.0, and 10GBASE-ZR/ZW. The transmitter converts serial CML electrical data into serial optical data compliant with the IEEE 802.3ae standard. The receiver converts serial optical data into serial CML electrical data.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.


Features:

  • Compliant to SFP+ MSA
  • Fully RoHS Compliant
  • All metal housing for superior EMI performance
  • Operating data rate up to 11.1Gbps l High sensitivity APD photodiode and TIA
  • LC duplex connector
  • Hot pluggable 20pin connector
  • Low power consumption <2 W
  • 0℃ to 70℃ operating wide temperature range
  • Single +3.3V±5% power supply
  • Digital Monitoring SFF-8472 Rev 10.2 compliant

Applications

  • 10GBASE-ZR/ZW
  • 10G Fiber Channel

10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support

10G DWDM SFP+ Optical Transceiver Module with 80km Distance C17-61 Wavelength and DDM/DOM Support
