Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP40G-LR4
Video

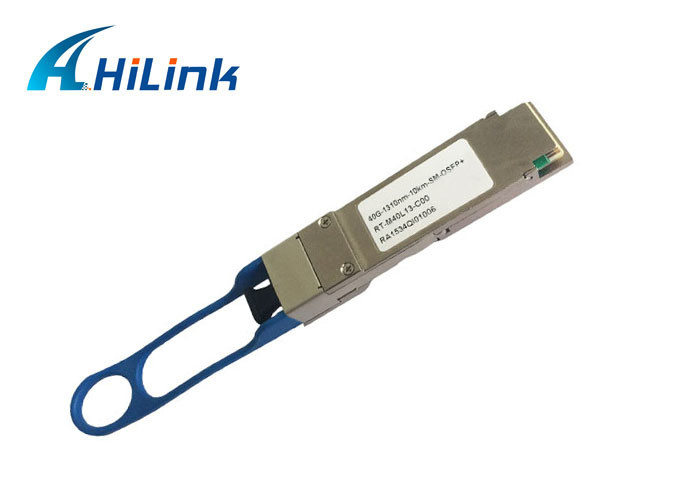

40G QSFP LR4 40Gb/s QSFP+ LR4 Optical Transceiver, QSFP+ module 10km
Description
This product is a transceiver module designed for 2m-10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
Features:
♦ Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
♦ QSFP+ MSA compliant
♦ Compliant with QDR/DDR Infiniband datarates
♦ Up to 11.2Gbps data rate per wavelength
♦ 4 CWDM lanes MUX/DEMUX design
♦ Up to 10km transmission
♦ Operating case temperature: 0~70C
♦ Maximum 3.5W operation power
♦ RoHS compliant
Applications:
♦ 40G BASE-LR4 Ethernet Links
♦ Infiniband QDR and DDR interconnects
♦ Client-side 40G Telecom connections
| Brand | Hilink, OEM |
| P/N | HLQF-40G-LR4 |
| Form Factor | QSFP+ |
| Wavelength | 1271 nm, 1291 nm, 1311 nm and 1331 nm |
| Distance | 10km |
| Data Rate | 40Gb/s |
| Connector | LC |
| Power Supply | 3.5V |
| Maximum operation power | 3.5W |
| Operating Temperature | Commercial 0°C to 70°C |
| DDM / DOM | YES |
| Warranty | 1 year |
| Certification | CE / FCC / RoHS / TUV / UL |
| Compatible With | Cisco / Huawei / HP / HILINK / H3C / Juniper etc |
QSFP Series :
| ordering information | |
| Part Number | Product Description |
| HiLink-QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
| HiLink-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| HiLink-QSFP-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
| HiLink-QSFP-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
| 25G SFP28 SR4 | 25Gbps 850nm SFP28 transceiver 100M |
| QSFP-40G-SR4 | QSFP-SR4, MMF, 850nm, 150M, MPO |
| QSFP-40G-CSR4 | QSFP+, MMF, 850nm, 300M (OM3) - MPO |
| QSFP-40G-LR4 | QSFP-LR4, SMF, 1270nm~1330nm,15KM LC |
| QSFP-40G-PSM-IR4 | QSFP+-IR4,SMF ,1310NM 2KM MPO |
| 40G QSFP+ PSM 10KM | QSFP+-LR4,SMF ,1310NM 10KM MPO |
| 100G QSFP28 SR4 | 100GBASE-SR4 QSFP28 |
| QSFP28 CWDM4 2KM | 100G QSFP28 CWDM4 2KM 1271~1331 |
| QSFP28 CWDM4 500M | 100G QSFP28 CWDM4 500 1271~1331 |
| QSFP28 PSM4 1310nm 2km | QSFP28 PSM4 1310nm 2km MPO SMF |
| 25G SFP28 AOC 1M | 25Gbps 850nm Multimode SFP28 AOC 1~100M |
| 25G SFP28 DAC SFF-8402 | 25G SFP28 to SFP28 DAC 1m 3m 5meter |
| 40G QSFP+ AOC 1M | QSFP-AOC Active 40Gbase 1~100meter |
| 40G QSFP+ DAC 1M | QSFP SFF8436 Passive Cable 1~5M |
| 100G QSFP28 TO QSFP28 DAC | 1M 2M 3M 5M SFF-8665 100G QSFP28 Passive |
| 100G QSFP28-SR4 AOC 1M | 100GBASE-SR4 QSFP28 AOC Fiber |
