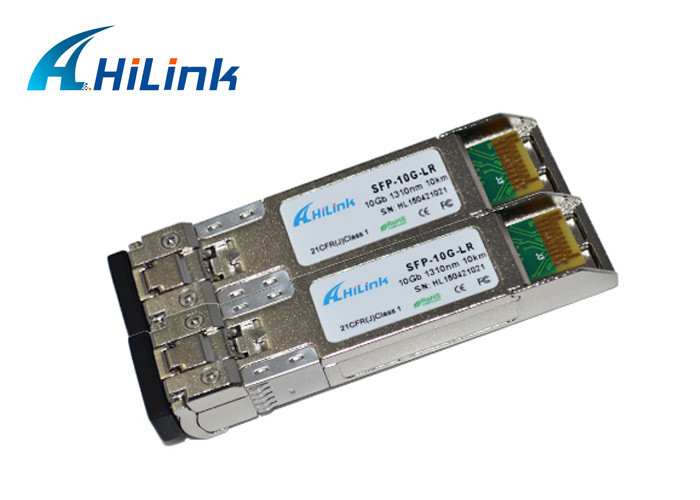

Optics SFP+ Module 10Gbase 1310nm LR 10km Dual Fiber LC connector

Optics SFP+ Module 10Gbase 1310nm LR 10km Dual Fiber LC connector

sfp+ optical module

10g sfp+ module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HLSP311XL-CD10

Contact Us
Request A Quote
Product Details
Wavelength:
1310nm
Voltage:
3.3v
Source:
DFB
Optical Power:
-7~0.5
Temperature:
0-70
Sensitivity:
<-14.4
Distance:
10km
Connector:
LC
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Blister Packaging, 10pcs/tray
Delivery Time
3-6 days
Payment Terms
L/C, T/T
Product Description



SFP+ Module 10Gbase 1310nm LR 10km Dual Fiber LC connector





Description



This 1310 nm DFB 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km.



The SFP+ LR module electrical interface is compliant to SFI electrical specifications.



The transmitter input and receiver output impedance is 100 Ohms differential.



Data lines are internally AC coupled.



The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.



SFI typically operates over 200 mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.





Features



Optical interface compliant to IEEE 802.3ae 10GBASE-LR



Electrical interface compliant to SFF-8431



Hot Pluggable



1310nm DFB transmitter, PIN photo-detector



Operating  temperature: 0 to 70 °C



Low power consumption



Applicable for 10km SMF connection



All-metal housing for superior EMI performance



Advanced firmware allow customer system encryption information to be stored in transceiver



Cost effective SFP+ solution, enables higher port densities and greater bandwidth





Applications



10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other optical links



Mechanical Specifications

Optics SFP+ Module 10Gbase 1310nm LR 10km Dual Fiber  LC connector 0



Warranty

We promise all the advertised optical transceivers are brand new with new components and parts.


We absolutely never use old and refurbished materials.


All the optical transceivers have been through functional test and aging test.


We provide 3 years warranty for all the optical transceivers from the date of shipment.




Shipment

Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of by FedEx, DHL, UPS, TNT and EMS.


Some items in stock can be shipped out the same day . The Items with no stock, then the shipment would be done in 3-7 days.


DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.


For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
