Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL - GLC - FE - 100FX

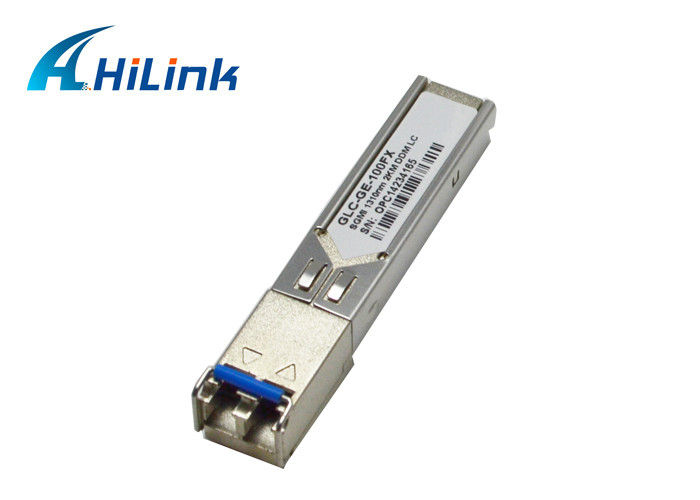

2km LC / SC Fiber SFP Module Multimode MMF GLC-FE-100FX CE ROHS Certification
FEATURES :
Product Name | 155M SFP 2km | Vendor Name | Hilink |
Power supply | + 3.3V | Max Data Rate | 10Gbps |
Wavelength | 1310nm | Max Cable Distance | 2km |
Interface | LC / SC | Optical Components | FP 1310nm |
Cable Type | 50/125μm MMF | DOM Support | Yes |
TX Power | - 20 to - 14dBm | Receiver Sensitivity | -34 to 0dBm |
Commercial Temperature | 0 to 70 °C (32 to 158 °F) | Power dissipation | < 600mW |
APPLICATION :
IV. Optical Characteristics (TOP=25°C, Vcc=3.3 Volts) | ||||||
Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
Transmitter | ||||||
Output Opt. Power | PO | -20 | - | -14 | dBm | 1 |
Optical Wavelength | λ | 1274 | 1310 | 1356 | nm | |
Spectral Width | σ | - | - | 3 | nm | |
Optical Rise/Fall Time | tr/tf | - | - | 1500 | ps | 2 |
Deterministic Jitter Contribution | TXΔDJ | - | - | 0.07 | UI | 3 |
Total Jitter Contribution | TXΔTJ | - | - | 0.007 | UI | |
Optical Extinction Ratio | ER | 9 | - | - | dB | |
Receiver | ||||||
Average Rx Sensitivity | RSENS | - | - | -34 | dBm | 4 |
Maximum Received Power | RXMAX | 0 | - | - | dBm | |
Optical Center Wavelength | λC | 1260 | - | 1600 | nm | |
LOS De-Assert | LOSD | - | - | -34 | dBm | |
LOS Assert | LOSA | -50 | - | - | dBm | |
LOS Hysteresis | 0.5 | - | - | dB |
PRODUCT SHOW :
SHIPPING & DELIVERY & PACKAGING :
International Express:
DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
GUARANTEE :
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
