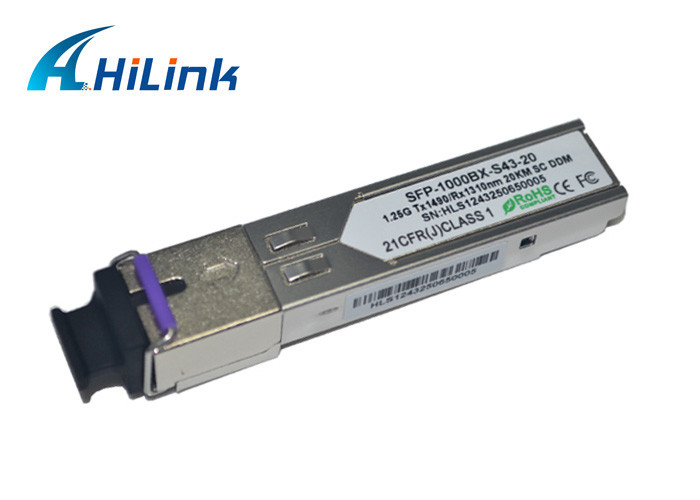

Single Mode Fiber SFP Transceiver Module Bidirectional 1490nm SC Connector

Single Mode Fiber SFP Transceiver Module Bidirectional 1490nm SC Connector

sfp fiber transceiver

sfp fiber module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFP1G-BX-S20

Contact Us
Request A Quote
Product Details
Data Rate:
1.25G
Wavelength A:
Tx1310nm/rx1490nm
Wavelength B:
Tx1490nm/rx1310nm
Distance:
20Km
Connector Type:
LC/SC
DDM:
Yes
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Static bag, Plastic Flat, Retail box etc.
Delivery Time
1-6working days
Payment Terms
T/T, Western Union, MoneyGram,Paypal
Supply Ability
50000pairs/month
Product Description

Single Mode Fiber SFP Transceiver Module Bidirectional 1490nm SC Connector


Data rate: From 155Mbps, 622Mbps, 1.25Gb/s, 2.5Gb/s, 4.25Gb/s and 10Gb/s
Distance up to 120km
Simplex SC or LC optical acceptable


A. Type: Tx1310nm /Rx1490nm and Tx1490nm /Rx1310nm
B. Type: Tx1310nm /Rx1550nm and Tx1550nm /Rx1310nm
C. Type: Tx1490nm /Rx1550nm and Tx1550nm /Rx1490nm
D. Type: Tx1510nm /Rx1570nm and Tx1570nm /Rx1510nm

E. Type: Tx1270nm/Rx1330nm and Tx1330nm/Rx1270nm

Product Features:

Single LC or SC receptacle optical interface compliant

Hot-pluggable SFP footprint

1310nm FP Transmitter and 1490 PIN Receiver

1490 FP Transmitter and 1310 PIN Receiver

RoHS compliant and Lead Free

Up to 20km on 9/125um SMF

Metal enclosure for lower EMI

Single 3.3V power supply

Low power dissipation <600mW

Commercial operating temperature range: 0°C to 70°C

Digital Diagnostic Monitoring optional

Applications
Gigabit Ethernet
Fiber Channel
WDM Application

General

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.

BiDi(WDM) Transceivers


155M/622M BiDi SFP LC/SC155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
4/2/1G BIDI SFP LC/SC4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
10G SFP BiDiSFP+ BiDi 1270 20kmSFP+ BiDi 20km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 20kmSFP+ BiDi 20km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1270 40kmSFP+ BiDi 40km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 40kmSFP+ BiDi 20km Tx1330nm/Rx1270nm LC
10G XFP BiDiXFP BiDi 1270 20kmXFP BiDi 20km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 20kmXFP BiDi 20km Tx1330nm/Rx1270nm LC
XFP BiDi 1270 40kmXFP BiDi 40km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 40kmXFP BiDi 40km Tx1330nm/Rx1270nm LC


FAQ

Q: Do you sell second-hand products?
ANo.All our products are brand new,we never use second-hand components.

Q: Could you provide OEM/ODM services?
 A: OEM/ODM order is available.

Q: What payment terms do you accept?
AT/T,Paypal,Western Union are acceptable.

Q: What are the shipping ways can you offer?
A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.

Q: What devices can your products compatible with?
AOur products are compatible with Cisco,Huawei, Ciena, MikroTik,H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Q: How to place an order?
A: 1> Order details confirmed,please tell us the model and quantity you need.
     2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
     3> Confirm and ship the goods, then tracking number will be sent to you promptly.
     4> We will help to track your goods until you receive them safely.
