Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-SFP1G-BX-S20

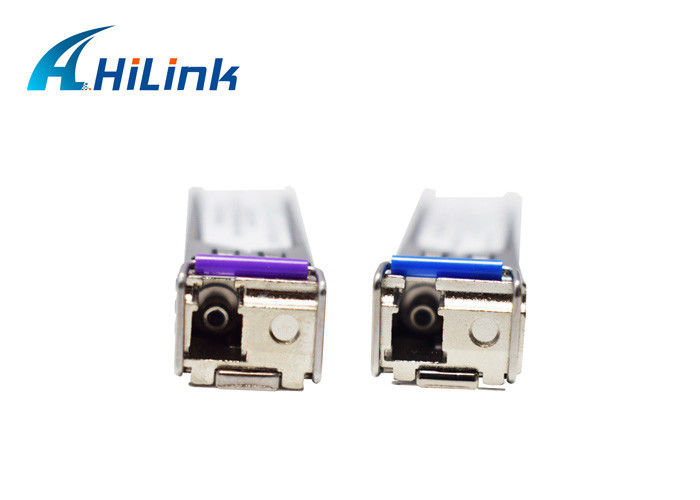

Dlink Compatible 20Km Reach 1.25G SFP BIDI 20Km 1310/1490nm DDM SC/LC Connector
Specifications
| Datarate | 1.25G/ps | Fiber Type | SMF |
| Transmitter | DFB | Receiver | PIN |
| Distance | 20KM | Wavelenth | TX1310nm/RX1490nm |
| DDM/DOM | Digital (optional) | Connector | LC/SC |
| Voltage Supply | 3.3V | Compatibility | Cisco/Huawei/Mikrotik etc |
| Operating Temperature | 0℃~ +70℃ | Certification | CE/FCC/RoHS |
Features
1490 FP Transmitter and 1310 PIN Receiver
Up to 1.25 Gb/s bi-directional data links
Hot-pluggable SFP footprint
1310nm FP Transmitter and 1490 PIN Receiver
Single LC/SC connector
Low power dissipation
Metal enclosure, for lower EMI
Up to 3km point to point transmission
Single 3.3V power supply
Compliant with SFP MSA Specification
Average Output Power: -14~-8dBm
Receiver Sensitivity: -22dBm
Operating temperature range: 0°C to 70°C
Applications
BiDi(WDM) Transceivers
| 155M/622M BiDi SFP LC/SC | 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional | |
| 4/2/1G BIDI SFP LC/SC | 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional | |
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| 10G XFP BiDi | XFP BiDi 1270 20km | XFP BiDi 20km Tx1270nm/Rx1330nm LC |
| XFP BiDi 1330 20km | XFP BiDi 20km Tx1330nm/Rx1270nm LC | |
| XFP BiDi 1270 40km | XFP BiDi 40km Tx1270nm/Rx1330nm LC | |
| XFP BiDi 1330 40km | XFP BiDi 40km Tx1330nm/Rx1270nm LC | |
FAQ
Q: Do you sell second-hand products?
A: No.All our products are brand new,we never use second-hand components.
Q: Could you provide OEM/ODM services?
A: OEM/ODM order is available.
Q: What payment terms do you accept?
A: T/T,Paypal,Western Union are acceptable.
Q: What are the shipping ways can you offer?
A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.
Q: What devices can your products compatible with?
A: Our products are compatible with Cisco,Huawei, Ciena, MikroTik,H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Q: How to place an order?
A: 1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
