FWDM Wavelength Division Multiplexer Optical Fiber Filter Directivity ≥ 50dB

FWDM Wavelength Division Multiplexer Optical Fiber Filter Directivity ≥ 50dB

optical wdm

wdm optical

Place of Origin:

China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

FWDM

Contact Us
Request A Quote
Product Details
Operating Wavelength:
TX15 RX1310 1490
Transmission Length:
1550+/-10
Reflection Wavelength:
1310+/-40 1490+/-10
Transmission Isolation:
≥30dB
Directivity:
≥50dB
Return Loss:
≥45dB
Operating Temperature:
-20 To +70°C
Storage Temperature:
-40 To +85°C
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Poly bag
Delivery Time
1-3 Days
Payment Terms
T/T, Western Union
Product Description

FWDM Wavelength Division Multiplexer Optical Fiber Filter Directivity ≥ 50dB

Description

Hilink Filter Wavelength Division Multiplexer(FWDM) ,FWDM T1550 R1310&1490 can achieve 1550/1310&1490 two channel optical signal multiplexing and demultiplexing, Making single optical fiber transmission capacity multiplier, Widely used in optical fiber network upgrading and CATV etc.

The device features low insertion loss, epoxy free optical path, high extinction ratio, high reliability and high stability



Features

Low Insertion Loss,Low PDL

High channel isolation

Exceptional reliability and stability

Wide Operating Wavelength

Wide Operating Temperature



Application

 WDM system

 CATV network



Parameters Unit FWDM Device
Operating Wavelength
T: transmission wavelength
R: reflection wavelength
1310±50,1490±10, 1550±10
1610±10, 1625±25, 1650±20
nm 1 T1550 R1310/1490
2 T1490 R1310/1550
3 T1310 R1490/1550
4 T1550/1610 R1310/1490
5 T1550/1625 R1310/1490
6 T1625 R1310/1490/1550
7 T1650 R1310/1490/1550
Insertion Loss dB Transmission: ≤ 0.6
Reflection: ≤ 0.4
Transmission Channel Isolation dB ≥ 30
Reflection Channel Isolation dB ≥ 17
PDL dB ≤ 0.1
Wavelength thermal stability nm/℃ ≤ 0.003
Insertion loss thermal stability dB/℃ ≤ 0.005
Return loss dB ≥ 45
Optical Power mW ≤ 500
Operating Temperature -10 ~ +70
Storage Temperature -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm Φ5.5×34 Φ4.2×25 90×20×10
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.

Notes:

1. Specified without connectors.

2. Add an additional 0.2dB loss per connector.

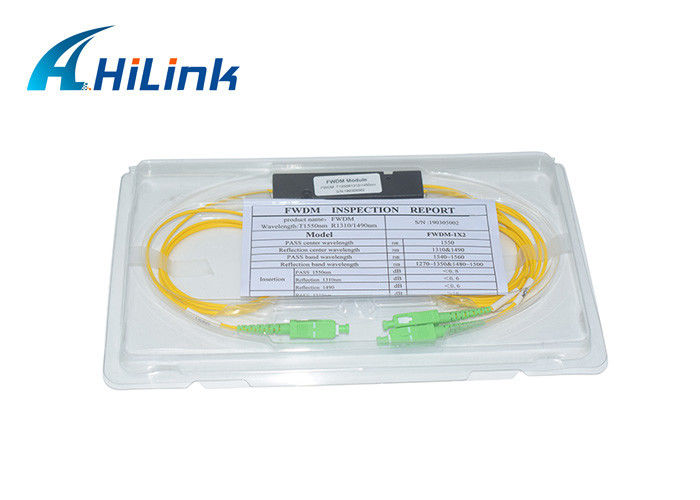

FWDM Wavelength Division Multiplexer Optical Fiber Filter Directivity ≥ 50dB 0FWDM Wavelength Division Multiplexer Optical Fiber Filter Directivity ≥ 50dB 1FWDM Wavelength Division Multiplexer Optical Fiber Filter Directivity ≥ 50dB 2



Ordering Information:

A B C D E
Wavelength Tube Type Fiber Length
(Include connector)
Connector Dimension

T15R13/14=T1550 R1310/1490

T14R13/15=T1490 R1310/1550

T13R14/15=T1310 R1490/1550

T15/16R13/14=T1550/1610R1310/1490

X=Others

25=250um

90=900um 20:2000um

30=3000um

X=Others

05=0.5m±0.05m

10=1.0m±0.05m

15=1.5m±0.05m

X= Others

00=None

FP=FC/PC

FA=FC/APC

SP= SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LC/APC

X=Others

5534=Φ5.5×34mm

4225=Φ4.2×25mm

9021=90×20×10mm

X=Others





FWDM Wavelength Division Multiplexer Optical Fiber Filter Directivity ≥ 50dB 3
