50cm Length 40G Optical Transceiver Module DAC Long Distance Link
50cm Length 40G Optical Transceiver Module DAC Long Distance Link 50cm Length 40G Optical Transceiver Module DAC Long Distance Link 50cm Length 40G Optical Transceiver Module DAC Long Distance Link 50cm Length 40G Optical Transceiver Module DAC Long Distance Link

50cm Length 40G Optical Transceiver Module DAC Long Distance Link

Product Details:
Place of Origin: China
Brand Name: HILINK
Model Number: HL-QSFP+ Extender
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Normal package by requires.
Delivery Time: 5-8workingdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Certification: CE RoHs Products Name: HL-QSFP+ Extender
Daterate:: 40G-4*10G Length: 50cm
Tem: 0° To 70°C Power: 3.3V Power Supply Adapter
High Light:

50cm Length Optical Transceiver Module

,

40G Optical Transceiver Module

,

DAC QSFP+ Extender

Product Description

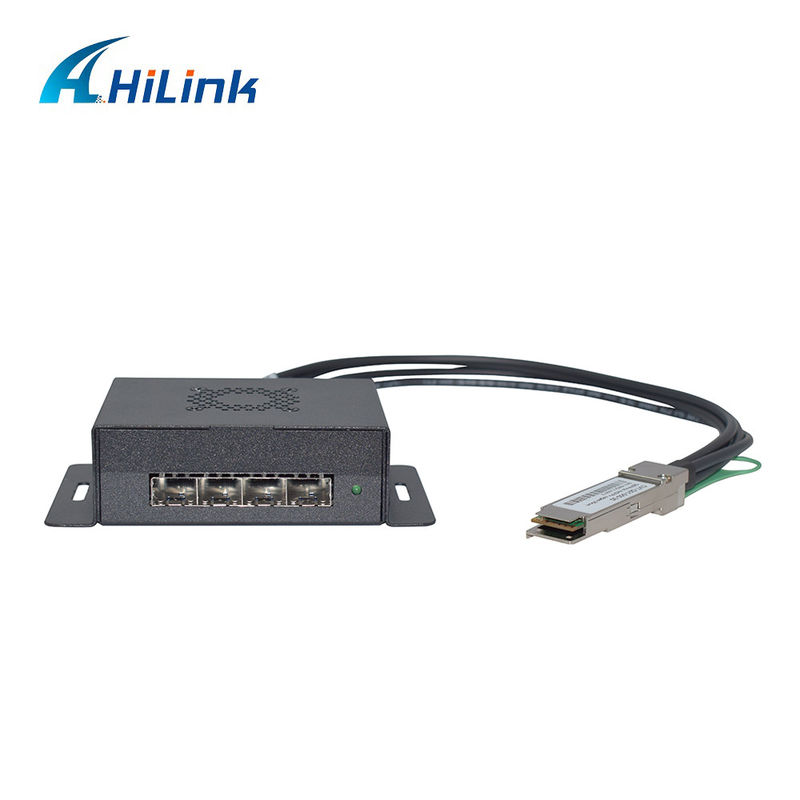

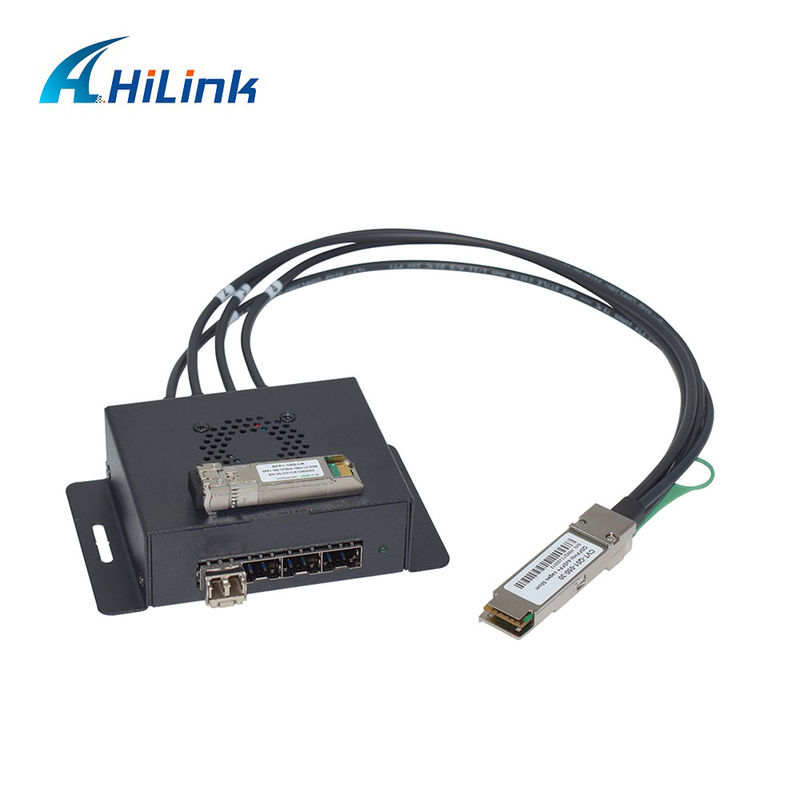

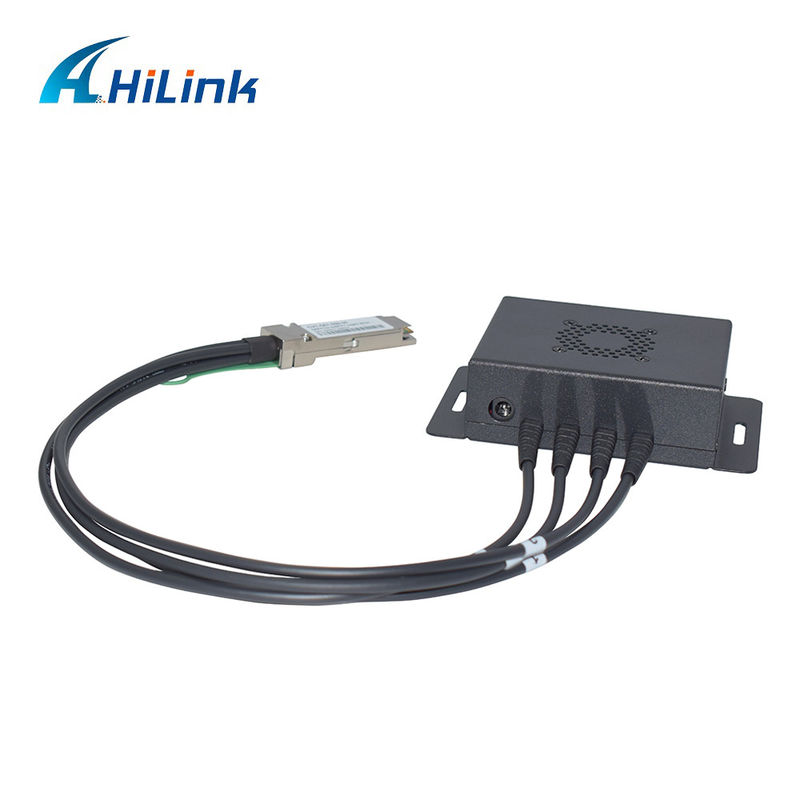

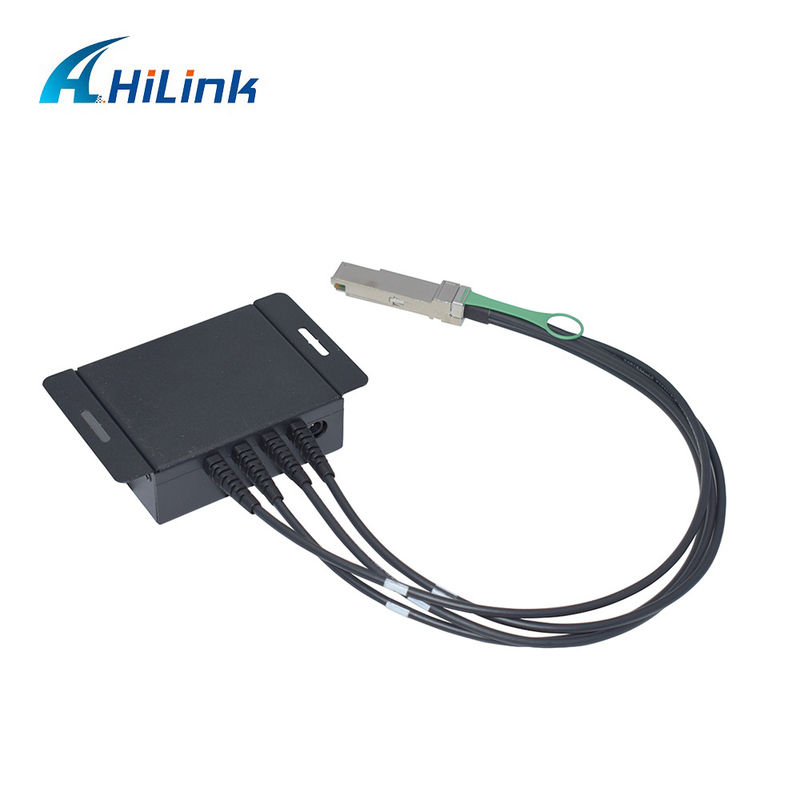

40G QSFP+ Extender 4x SFP+ Port Direct Attach Copper With 50cm Module



QSFP+ Extender is used for long-distance transmission under 40G QSFP+. The QSFP+
Port could be transferred/converted into 4x SFP+ port by Direct Attach Copper (DAC) technology
under very low insert lose.
QSFP+ Extender are provided in 1U rack and movable version with 3.3V power supply.
Transmission distance could be extended longer by connecting with Standard SFP+ Transceivers.

APPLICATIONS:
QSFP+ long distance link
InfiniBand 4X SDR, DDR, QDR and FDR
Ethernet 10G, 40G
FiberChannel 10G, 40G, SAN, 4X16G
Rack-to-Rack, Shelf-to-Shelf Interconnect
Top of Rack (TOR) and Core Switch
STANDARDS COMPLIANCE:
QSFP+ End
Electrical: IBTA V2 Revision 1.2.1 and 1.3
IEEE 802.3ba
SFF-8436
SFP+ End
SFF-8431
SFF-8432
SFF-8472
RoHS
