Place of Origin:
Guangdong, China
Brand Name:
Hilink
Certification:
CE Rohs
Model Number:
XFP-LR-10KM
HILINK HLXP311XL-C(I)D10 Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification, now available with Commerical Temperature Range of Operation(0 °C to 70°C) and Industrial Temperature Range of Operation (-40°C to +80°C). They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae, 10G Fibre Channel and 10G CPRI request. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Features
Supports 9.95 to 10.5Gb/s bit rates
Duplex LC connector
Hot-pluggable XFP footprint
Uncooled 1310nm DFB laser ,PIN photo-detector
Applicable for 10km SMF connection
Low power consumption, <1.5W
Digital Diagnostic Monitor Interface
No Reference Clock required
Operating case temperature:
Commerical:0 to 70 °C
Industrial:-40 to 80°C
Applications
10GBASE-LR/LW 10G Ethernet
10G Fibre Channel
10G CPRI
Other optical link

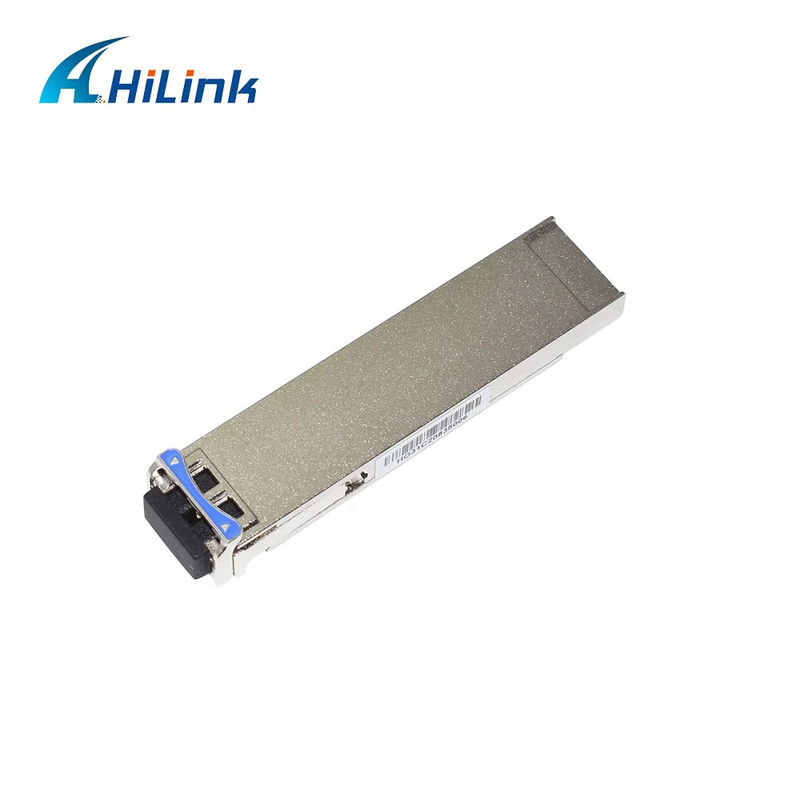

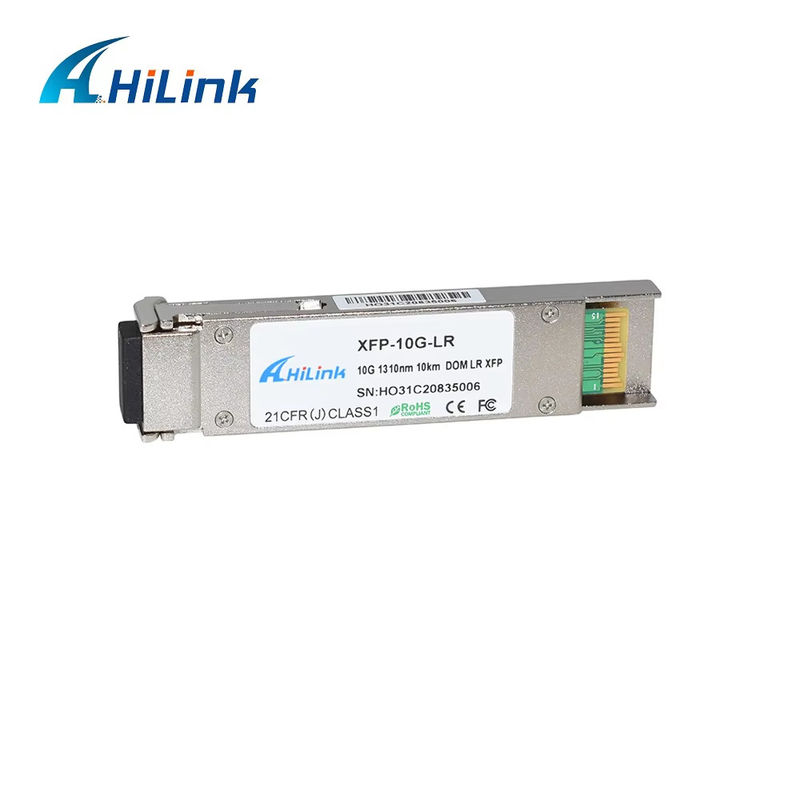

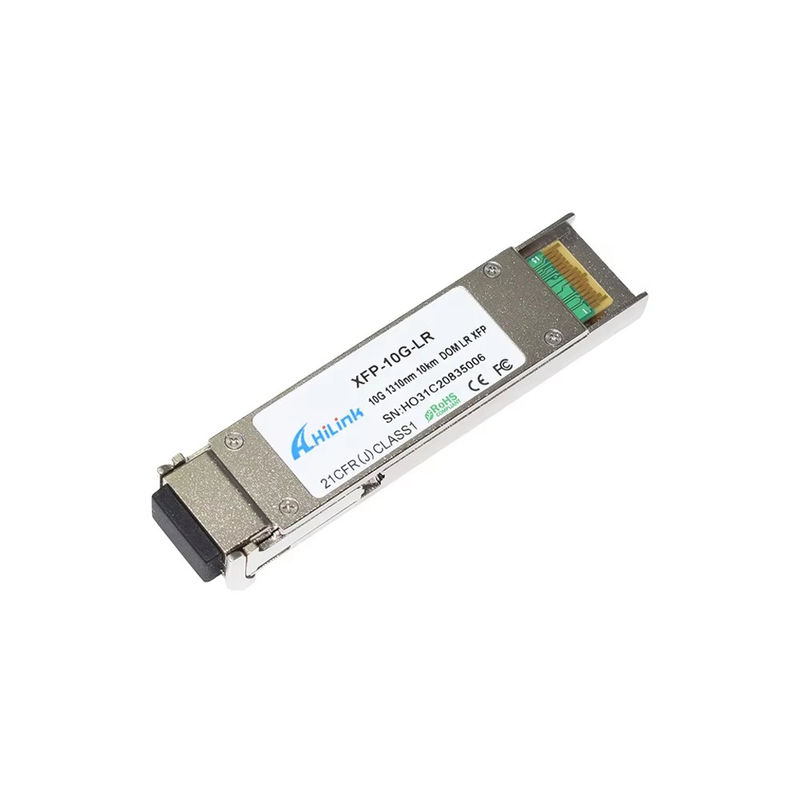

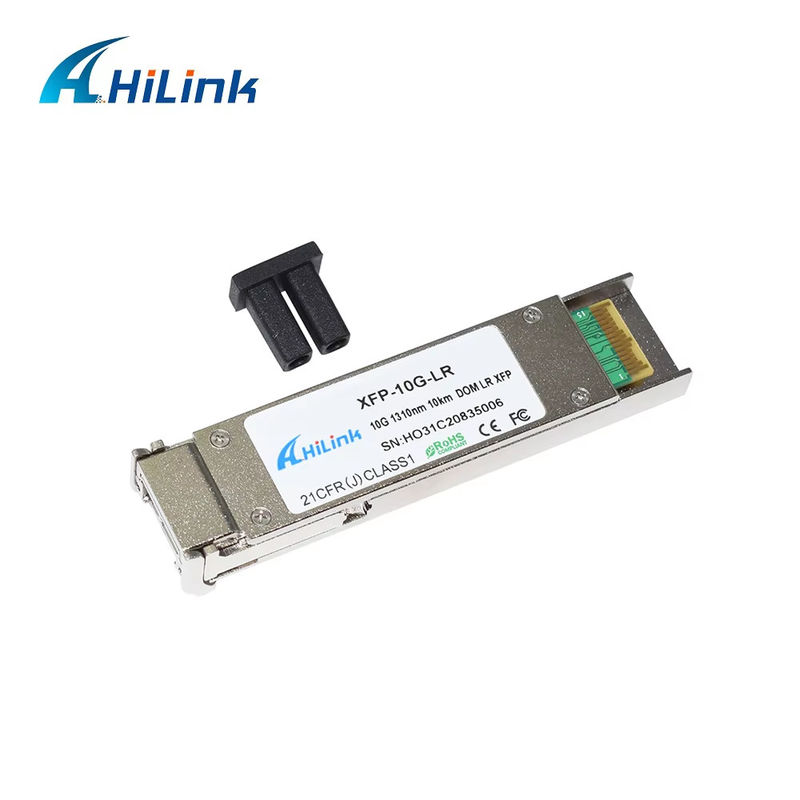

Real Picture
Package & Shipping
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Our Service
Accept OEM& ODM
Hilink specialized in fiber optic module more than 10 years
Use Brand New Material
Fast delivery
3 Year Warranty
Strong Technicial Support
Send your inquiry directly to us
