Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
GLC-T

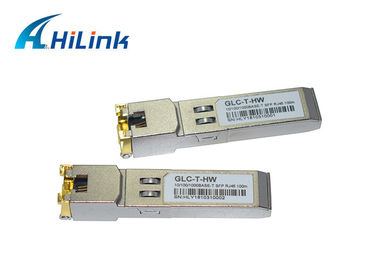

10/100/1000base Copper GLC-T Optical Transceiver Module RJ45
The hilink GLC-T 10/100/1000 copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The GLC-T10/100/1000 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals.
Feature
l Support 1000BASE-T Operation in Host Systems
or 10/100/1000 BASE-T operation in host systems with SGMII interface.
l 100m Reach Over UTP Cat5 Cable
l Hot-Pluggable SFP Footprint
l Fully Metallic Enclosure for Low EMI
l Low Power Dissipation (1.05W Typical)
l Compact RJ-45 Connector Assembly
l Access to Physical Layer IC via 2-Wire Serial Bus
l Detailed Product Information in EEPROM
l Compliant with SFP MSA
l Comercial or Industrial case temperature range
l Compliant with IEEE Std 802.3-2002
| Parameter | Symbol | Min | Typ | Max | Unit |
| Maximum Supply Voltage | Vcc | 0 | +3.6 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Case Operating Temperature | TOP | 0 | 85 | °C | |
| Relative Humidity | RH | 5 | 95 | % | |
| Parameter | Symbol | Min | Typ | Max | Unit |
| Supply Voltage | Vcc | 3.15 | 3.45 | V | |
| Supply Current | Icc | 180 | 300 | mA |
Application
LAN 10/100/1000Base-T
Gigabit Ethernet over Cat 5 Cable
Switch to Switch Interface
Router/Server Interface
The hilink copper SFP series RJ45
| GLC-T | 1000base-tx miniGBIC copper |
| GLC-FE-T 100base | 10/100base-tx (100base-tx) copper |
| GLC-TC | 10/100/1000base-tx miniGBIC copper |
| SFP-GE-TC | 1000M (TX DISABLE) SFP copper |
| SFP-GE-T | 10/100/1000M (TX DISABLE)SFP |
Mechanical Specification
