Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
10/100/1000base-T

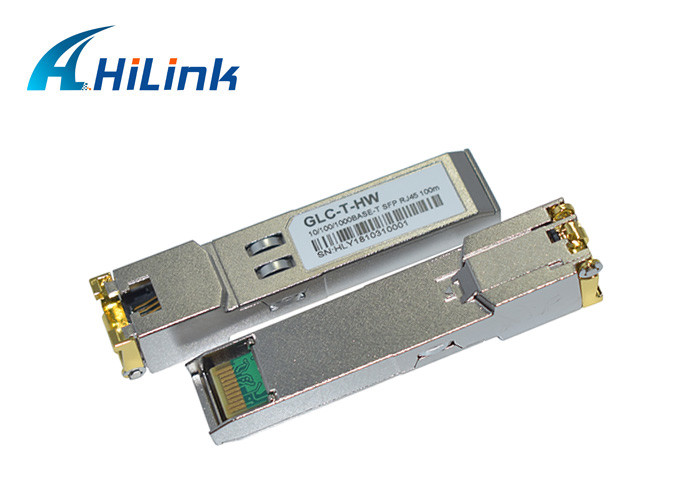

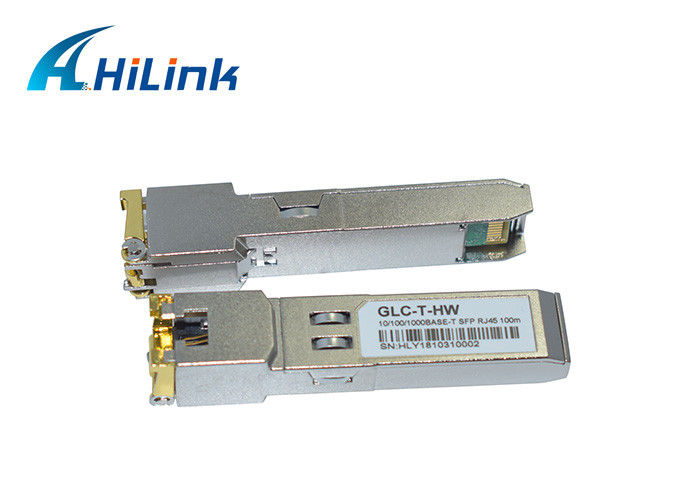

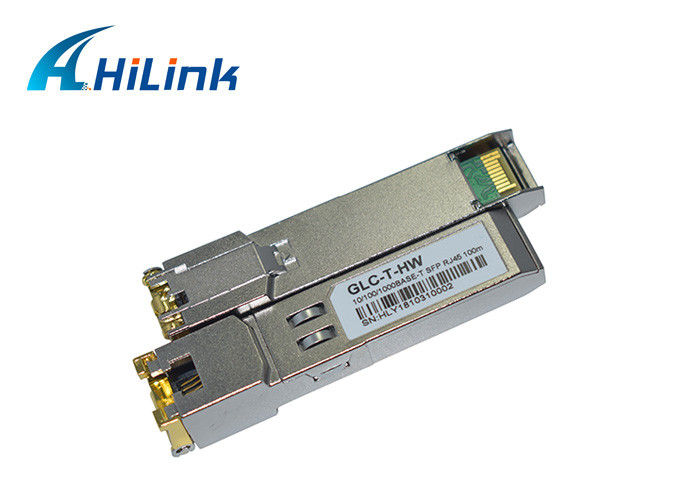

Cisco Compatible SFP-GE-T 10/100/1000Base-T Copper SFP Module RJ45 Connector
Features
Compliant with MSA SFP specification
Compliant with IEEE 802.3 1000BASE-T specification
Supports 1000BASE-X without clock with 1000BASE-X auto-negotiation to copper
Die cast metal housing
Single +3.3V power supply
Serial ID functionality
Bail latch style ejector mechanism
TDR functionality support
Auto MDI/MDIX crossover
Shunt Auto Transformer
Compatible with CAT 5 cable in excess of 100M in length
SFP 1000BASE-X Auto Negotiation Bypass Mode
OEM and ODM
OEM/ODM order is available
| Parameter | Symbol | Min | Typ | Max | Unit |
| Maximum Supply Voltage | Vcc | 0 | +3.6 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Case Operating Temperature | TOP | 0 | 85 | °C | |
| Relative Humidity | RH | 5 | 95 | % | |
| Parameter | Symbol | Min | Typ | Max | Unit |
| Supply Voltage | Vcc | 3.15 | 3.45 | V | |
| Supply Current | Icc | 180 | 300 | mA |
The copper SFP series RJ45
| GLC-T | 1000base-tx miniGBIC copper |
| GLC-FE-T 100base | 10/100base-tx (100base-tx) copper |
| GLC-TC | 10/100/1000base-tx miniGBIC copper |
| SFP-GE-TC | 1000M (TX DISABLE) SFP copper |
| SFP-GE-T | 10/100/1000M (TX DISABLE)SFP |
Mechanical Specification
